GT Power Aircraft Navigation Lighting System

Ask a question about this product

Printable version

Options

Market Price: $25.99

Our Price:

$21.99

You Save

15%

Quantity

OUT OF STOCK

Notify me when back in stock

Details


Availability	No items available
Weight	0.10 lbs
SKU	GT-Light-NAV-SYST

Description:

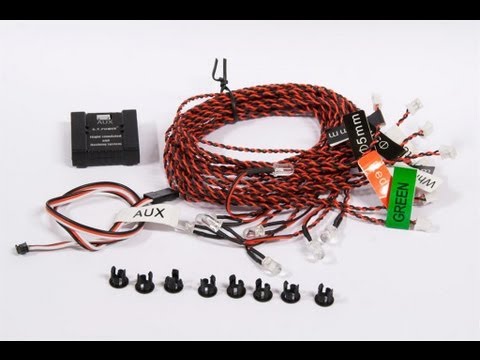

GT Power Aircraft Navigation Lighting System

This lighting set is a step up from the GT Power Aircraft Lighting System and ontains a control board that simulates actual aircraft navigation lighting. The system has been designed according to real aircraft navigation lighting standards featuring beacon, navigation and strobe lights to make your aircraft look more realistic. A great way to add a level of scale realism to your models and it is extremely easy to install. Using long life, super-bright (3 & 5mm diameter) LEDs, you will not have any trouble seeing any model they are installed in! All LEDs or LED combinations have separate plugs so they can be moved around for different lighting combinations.

The system can be powered from your receiver or a separate power source and is suitable for any mid-size airplane (up to .60 size) or helicopter. The kit consists of eight bright LED lights, a control board with power lead, and clamps for securing the LEDs to the fuselage and wings of your aircraft, as well as double-sided tape for securing the control board within the fuselage.

The included lights and patterns are as follows:

2 white constant bulbs
1 green constant bulb
1 red constant bulb
2 white strobe bulbs
2 red slow-flashing bulbs

The control board power lead features a male JR plug for connection to any open channel on the receiver. We suggest using a UBEC or receiver battery pack to provide adequate power to these lights, as the standard linear mode BEC on most ESCs may become overloaded. Another option is to use an ESC that has a switch-mode BEC.

FEATURES:

Simple to install
Simulates a realistic lighting setup for airplanes and helis
600mm lead length makes it compatible with aircraft up to .60 size
Detailed instructions with images make this kit even easier to use

SPECIFICATIONS:

Input Voltage: 4.8V - 6.0V
Working Current: 100mA
Dimensions: 30mm x 30mm x 10mm
LED Wire: 800mm
AUX Cable Length: 300mm

HiTec HS-M7990TH High Voltage, Mega Torque, Magnetic Encoder Ultra Premium Servo .17sec/611oz @ 7.4v

Description:

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for pilots with the need for speed!

Features:

Power Efficient Brushless Motor Controller
Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
Custom NeuMotor
Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
Constant Torque Output:
Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
Hybrid MPD 1st Gear:
Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
Industry-Leading Titanium Gear Train
Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
25-Tooth Standard Spline
Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.

Specifications:
- Torque:
  - 236 oz/in at 6V (17.0 kg-cm)
  - 236 oz/in at 7.4V (17.0 kg-cm)
- Speed:
  - .08 sec at 6V
  - .06 sec at 7.4V
- Voltage: 6V - 7.4V
- Weight: 2.40oz (68g)
- Size: 40 x 20 x 68 mm (1.57 x 0.79 x 1.50in)
