The NEW Fortitude V2 gas tanks are here!!!



*Fourtitude has amended their fuel tanks due to federal regulations on shipping fuel containers. Check out the video below to see just how easy it is to assemble the tank!

Make sure to upgrade asap as this new and improved design is the cutting edge of next generation RC gas tanks. You are probably familiar with the old design- with the the line-in and the vent nozzle on the top of the tank and the line running to the engine on the cap. Because there are so many different fitting and sealants, there are alot of places where something can go wrong or start leaking.

The V2 design eliminates ALL of these problems with ONE SIMPLE DESIGN..... ALL nozzles are in the removable cap which has TWO rubber gaskets and is ONE SOLID PIECE, which includes the vent tube and filling tube. Fewer parts = Fewer problems.

Fortitude has hit the target with the V2 Tank and as always, is the best quality you can get!

Fortitude (or 4titude) gas tanks are high quality, crystal clear plastic tanks, that take the guesswork and worry out of your tanks. You can clearly see into the 4titude tank to know if your line is still flexible and your clunk is in place! Fortitude tanks include the foam, the Velcro and the tubing to hook to your engine!

4titude tanks are SUPER light, in fact, the lightest commercially available tanks on the market. They use aerospace grade adhesives to ensure long life. 4titude tanks are also made of seamless plastic, making them fully resistant to splitting!

The included clunk is filtered as well.

Video:

Video:



V2 Features:

• Injection Molded Single piece glass filled nylon fitting manifold. Light weight extremely strong material that creates a very easy to plumb and compact fuel tank.


• Dual static O-ring seals, designed utilizing the latest aerospace engineering technology, to seal fluid even under high pressure.  V2 has one potential leak point and with the redundant static seals we have double assurance it will never leak.


• Plumbed with a filtered clunk and an extended fill/ drain tube to make it easy to drain the tank completely.


• Zero protrusions/ fittings on the outside of the tank to interfere with tight airframe installations.


• We took care of making sure there is zero guess work involving installation. 3D diagram included with each tank showing how to properly plumb your fuel system for the best results.





Note the length dimension is from the back of the tank to the front of the fitting/tubing barbs.

Specs:

• Size: 12oz (354 ml)
  • Length 6 3/4" ” x Width 2 3/16"” x Height 2 3/16” (171.5 x 55.5 x 55.5 mm)
• Weight: 1.4 oz
• Fittings are part of the cap/ internal tubing
• Filtered clunk
• Super light!
• Crystal clear
• Seamless
• Includes: Tank/foam/velcro
• Fourtitude Tanks are compatible with gas engines only. (Not compatible with Glow fuel)







Fortitude tanks are compatible with ALL oils, synthetic and non-synthetic. Fortitude uses PPG Class B sealant. The expert below explains how high tech and quality of a sealant it is:

“PPG Class B is an aircraft integral fuel tank sealant. It has a service temperature range from - 65°F (-54°C) to 250°F (121°C), with intermittent excursions up to 275°F (135°C). This material is designed for fillet sealing of fuel tanks and other air- craft fuselage sealing applications. The cured sealant maintains excellent elastomeric properties after pro- longed exposure to both jet fuel and aviation gas. "







Description:

Our carbon fiber servo arms are a perfect companion to any of our planes. They come with bolts and nuts, and for an additional combo price you can combo them with our Redwing RC aluminum circle arms, so you can just tighten and go! No nuts necessary and super strong aluminum and CF combo!!




Carbon fiber servo arms feature:

Lightweight and Strong
Pre drilled for circle arms
Multiple length options


Fit ANY servo (using the circle arms that come with your servo, OR our optional aluminum servo arms for MANY servos)


XT30 Connectors

Nylon T-connectors. These are VERY similar to Dean's style T connectors, and are fully compatible with Deans connectors.
Pack includes 5 male and 5 female connectors.



These connectors are made from Nylon, making them very tough and difficult to melt, even with the worst of soldering skills.

Features:

• Durable nylon connectors
• Compatible with Deans large connectors
• Easy to solder
• Positive/negative can only connect one way ensuring proper polarity







PRICE FOR PACKS OF 5 PAIR







Description:
5 Pairs of Deans Style Connectors

Nylon T-connectors. These are VERY similar to Dean's style T connectors, and are fully compatible with Deans connectors.
Pack includes 5 male and 5 female connectors.



These connectors are made from Nylon, making them very tough and difficult to melt, even with the worst of soldering skills.


Features:

• Durable nylon connectors
• Compatible with Deans large connectors
• Easy to solder
• Positive/negative can only connect one way ensuring proper polarity





PRICE FOR PACKS OF 5 PAIR:





Description:
10 pack of servo safety clips. Made to retain your servo wires to keep them from slipping off during flight.

A must have to to ensure your servo connectors stay securely connected.

Packs of 10:

Description:

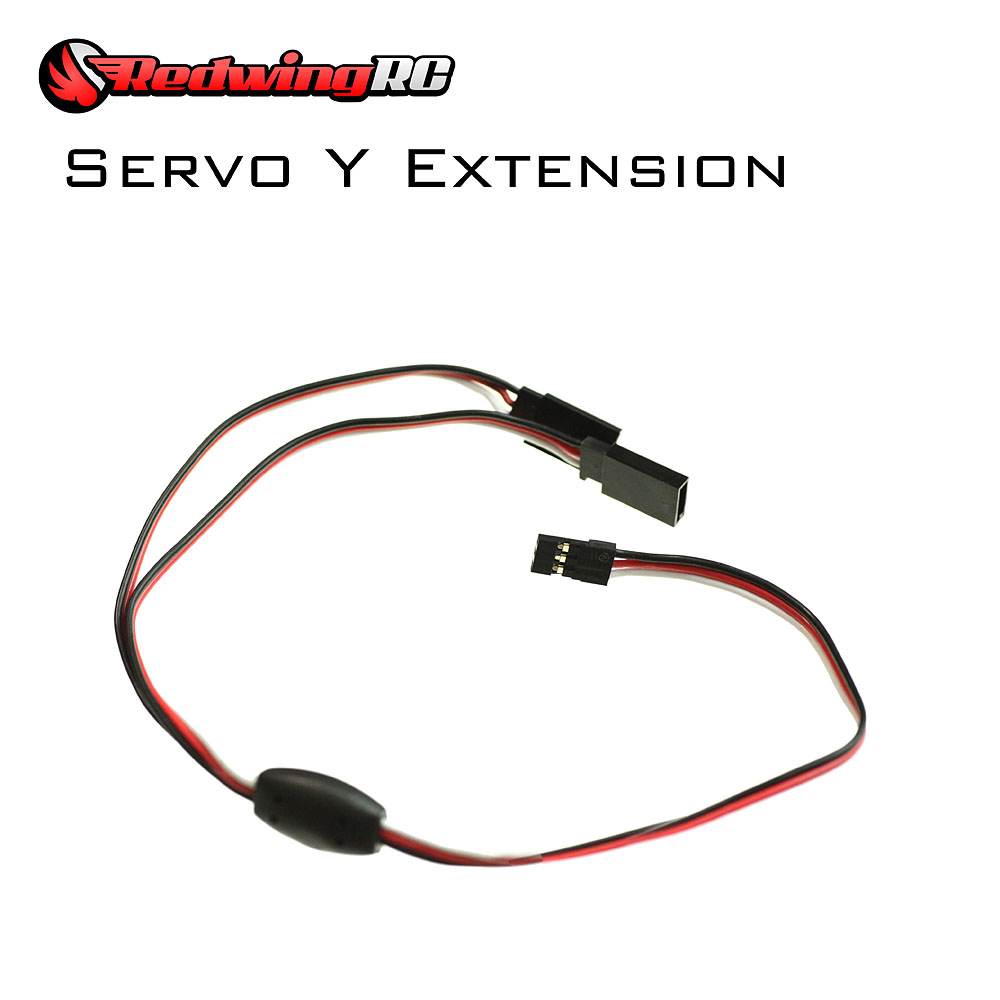

Our 6” heavy-duty Y-harnesses are perfect for standard servos up to 1/4 scale servos. They offer 22awg wire, gold plated connectors and thick wire jackets. Y-junction located in the middle of the harness and is a solid plastic housing rather than the cheaper heat shrink Ys.

Perfect for getting 2 leads out of one RX port.

1 servo Y per unit:

Hall Sensor Tester, Rcexl Gas Engine CDI Ignition Tester

This is a timing and testing kit for RC gas engines.



This kit will allow you to check the working condition of your ignition without needing to restart the engine.



Analog engine speeds between 400 RPM ~ 20000 RPM can be used to check for interferences and radio range check.

An LED will light up when everything is working properly.

$3.95 to $5.95

Description:
Our replacement adjustable push rods are as good as any out there at even better prices. Very similar to Hangar 9's Pro-Links, our adjustable push rods offer the ultimate in strength and security with the added bonus of ease of adjustability and ultra-light weight.

Our Pro-Links have a 4-40 right-hand thread on one side and a 4-40 left-hand thread on the other (turnbuckle). A machined hex in the middle (4mm / 5/32") allows you to make very fine length adjustments without removing the linkage from the servo arm or control horn.

They are also very lightweight, a 110mm (approx. 4.5") linkage weighs just 8 grams but has the strength to lift over 500 pounds. Pro-Links are ideal for any other 4-40 molded ball link or control horn and are available in a variety of sizes. We also have a machined-aluminum wrench that's perfect for making adjustments.


Sizes:

Metric		Approx. US Standard
Non Threaded Length	Entire Rod Including Threads	Non Threaded Length	Entire Rod Including Threads
20mm	45mm	0.79"	1.78"
30mm	55mm	1.18"	2.17"
40mm	65mm	1.57"	2.56"
80mm	110mm	3.15"	4.33"
110mm	140mm	4.33"	5.51"

(Sizes are approximate and can vary between rod length and threads as these are meant to be ADJUSTABLE)


SOLD IN PAIRS


Description:

With the Miracle RC prop reamer you can increase the diameter of the hole in your prop while keeping it true and square.

The Miracle prop reamer cuts in increments of 5mm, 1/4", 5/16", 3/8"

The Miracle prop reamer is made of a harder steel than most to stay strong for MANY cuts for many years.



Replacement control horns for 30cc, 50cc and 100cc planes. Made of light strong fiberglass, these fiberglass control horns fit MOST planes using these style of control horns. Each unit includes 2 single horns and a ball link, so you just need to hook up to your pushrod.

Description:
XQ-3011 Metal gear analog servo

Specifications:

• Torque:
  • 152 oz/in at 6V (11 kg/cm)
  • 172 oz/in at 7.2V (12.4kg-cm)


• Speed:
  • .18 sec at 6V
  • .16 sec at 7.2V


• Voltage: 6V - 7.2V

• Weight:1.46oz (56g)

• Size: 40 x 20 x 38mm


• Gear Style: Futaba Arms
• Gear Type: Metal

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

Description:
XQ-4216 Metal gear Digital Coreless servo

Specifications:

• Torque:
  • 198.6 oz/in at 9.6V (14.3kg/cm)
  • 238.9 oz/in at 11.1V (17.2kg-cm)


• Speed:
  • .11 sec at 9.6V
  • .11 sec at 11.1V


• Voltage: 9.6V - 11.1V

• Weight: 1.46oz (56g)
• Size: 40 x 20 x 39mm


• Gear Style: Futaba Arms
• Gear Type: Metal - Titanium

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!
