Overview

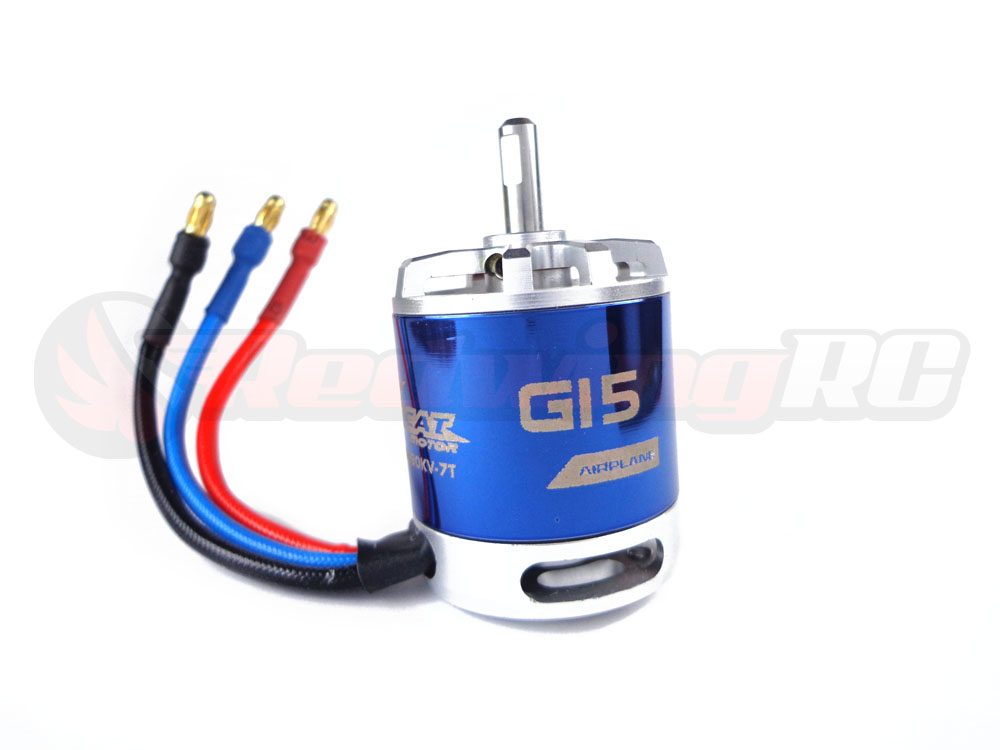

Say hello to the Tomcat G15 Brushless motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-3520-KV980 (G15)
• KV(rpms per volt):.... 980
• No load current: ....... 2.2 A @10V
• Resistance:................ 0.033 ohms
• Watts:........................ up to 440
• Continuous Current:... 32A
• Max Burst Current:.... 43A,10seconds
• Cells:......................... 3–4 S Li-Po
• Recommended Props: 10x6 to 13x6.5
• Slots,Poles:............... 12,14
• Diameter:.................. 35 mm
• Shaft: Diameter:........ 5.0 mm
• Weight:...................... 145 g
• Brushless ESC:......... 50A

Overview

The Tomcat G32 Brushless motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-4320-KV830 (G32)
• KV(rpms per volt):... 830
• No load current: ....... 2.5 A @10V
• Resistance:................ 0.024 ohms
• Watts:........................ up to 1000
• Continuous Current:... 42A
• Max Burst Current:.... 60A,10seconds
• Cells:......................... 3–5 S Li-Po
• Recommended Props: 11x7 to 14x10
• Slots,Poles:............... 12,14
• Diameter:.................. 43 mm
• Shaft: Diameter:........ 5.0 mm
• Weight:...................... 208 g
• Brushless ESC:......... 70A

Overview

The Tomcat G160 Brushless motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-6330-KV250 (G160)
• KV(rpms per volt):... 250
• No load current: ....... 2.3 A @10V
• Resistance:................ 0.031 ohms
• Watts:........................ up to 2800
• Continuous Current:... 62A
• Max Burst Current:.... 80A,10seconds
• Cells:......................... 9–10 S Li-Po
• Recommended Props: 18x8 to 20x10
• Slots,Poles:............... 12,14
• Diameter:.................. 63.2 mm
• Shaft: Diameter:........ 8.0 mm
• Weight:...................... 682 g
• Brushless ESC:......... 100A

Overview

The Tomcat G30cc Motor For 30cc gas airplane This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-6432-KV200(G30CC)
• KV(rpms per volt):... 200
• No load current: ....... 2.2 A @10V
• Resistance:................ 0.04 ohms
• Watts:........................ up to 3000
• Continuous Current:... 65A
• Max Burst Current:.... 80A,10seconds
• Cells:......................... 10 S Li-Po
• Recommended Props: 20x12 to 22x11
• Slots,Poles:............... 24,20
• Diameter:.................. 64 mm
• Shaft: Diameter:........ 10 mm
• Weight:...................... 680 g
• Brushless ESC:......... 100A

Overview

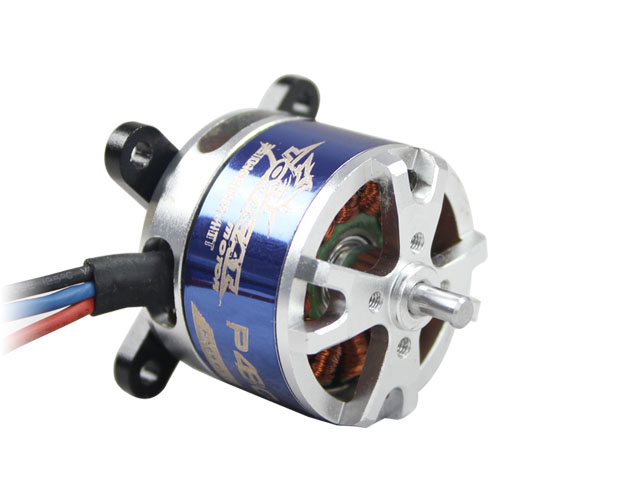

The Tomcat Park480 Motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-P-3510-KV980 (P4801)
• KV(rpms per volt):... 980
• No load current: ....... 1.0 A @10V
• Resistance:................ 0.077 ohms
• Watts:........................ up to 360
• Continuous Current:... 22A
• Max Burst Current:.... 26A,10seconds
• Cells:......................... 2–3 S Li-Po
• Recommended Props: 10x7 to 12x6
• Slots,Poles:............... 12,14
• Diameter:.................. 35 mm
• Shaft: Diameter:........ 4.0 mm
• Weight:...................... 87 g
• Brushless ESC:......... 30A

Overview

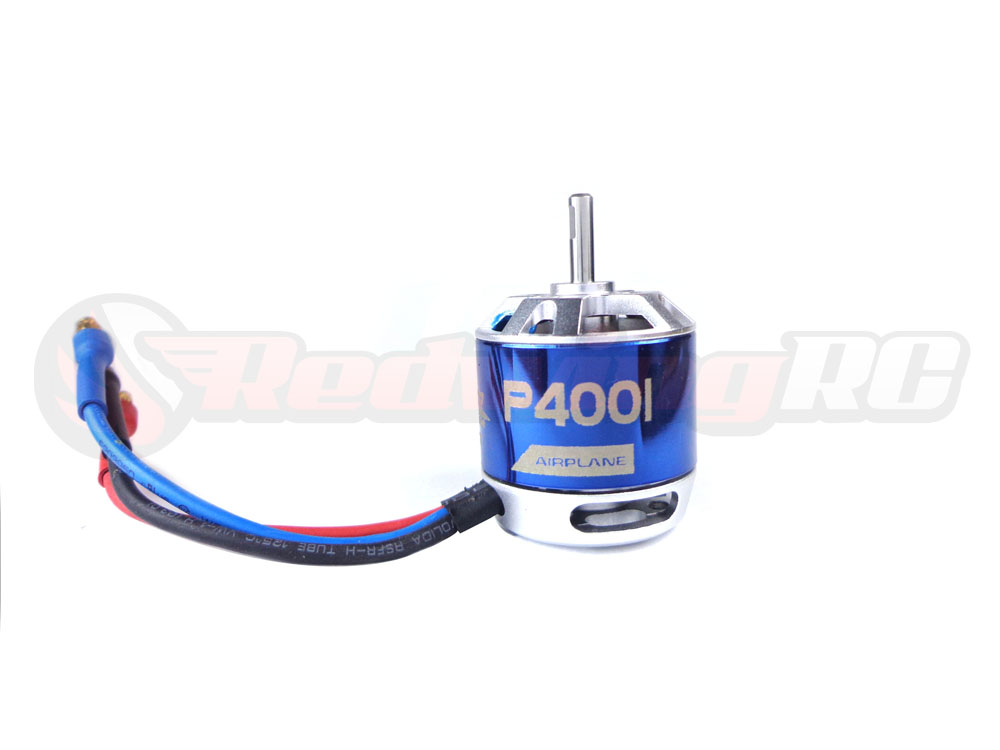

The Tomcat Park400 Motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-P-2812-KV750 (P4001)
• KV(rpms per volt):... 750
• No load current: ....... 0.45 A @10V
• Resistance:................ 0.243 ohms
• Watts:........................ up to 130
• Continuous Current:... 7A
• Max Burst Current:.... 10A,10seconds
• Cells:......................... 2–3S Li-Po
• Recommended Props: 10x4.7 to 12x3.8
• Slots,Poles:............... 12,14
• Diameter:.................. 28 mm
• Shaft: Diameter:........ 3.175 mm
• Weight:...................... 62 g
• Brushless ESC:......... 15A

Tomcat G50cc Motor for Gas Airplane

Overview

The Tomcat G30cc Motor For 30cc gas airplane This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-6432-KV200(G30CC)
• KV(rpms per volt):... 200
• No load current: ....... 2.2 A @10V
• Resistance:................ 0.04 ohms
• Watts:........................ up to 3000
• Continuous Current:... 65A
• Max Burst Current:.... 80A,10seconds
• Cells:......................... 10 S Li-Po
• Recommended Props: 20x12 to 22x11
• Slots,Poles:............... 24,20
• Diameter:.................. 64 mm
• Shaft: Diameter:........ 10 mm
• Weight:...................... 680 g
• Brushless ESC:......... 100A

Tomcat G100cc Motor for Gas Airplane

Overview

The Tomcat G30cc Motor For 30cc gas airplane This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-6432-KV200(G30CC)
• KV(rpms per volt):... 200
• No load current: ....... 2.2 A @10V
• Resistance:................ 0.04 ohms
• Watts:........................ up to 3000
• Continuous Current:... 65A
• Max Burst Current:.... 80A,10seconds
• Cells:......................... 10 S Li-Po
• Recommended Props: 20x12 to 22x11
• Slots,Poles:............... 24,20
• Diameter:.................. 64 mm
• Shaft: Diameter:........ 10 mm
• Weight:...................... 680 g
• Brushless ESC:......... 100A

Tomcat G46 Brushless Motor

Overview

The Tomcat G32 Brushless motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-4320-KV830 (G32)
• KV(rpms per volt):... 830
• No load current: ....... 2.5 A @10V
• Resistance:................ 0.024 ohms
• Watts:........................ up to 1000
• Continuous Current:... 42A
• Max Burst Current:.... 60A,10seconds
• Cells:......................... 3–5 S Li-Po
• Recommended Props: 11x7 to 14x10
• Slots,Poles:............... 12,14
• Diameter:.................. 43 mm
• Shaft: Diameter:........ 5.0 mm
• Weight:...................... 208 g
• Brushless ESC:......... 70A

TomCat G52 5025-KV590 Brushless Motor

Overview

The Tomcat G52 Brushless motor is a high-end motor that combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type: TC-G-5025-KV590 (G52)
• KV (rpms per volt): 590
• No load current:  2.6A @10V
• Resistance: 0.019 ohms
• Watts: up to 1600
• Continuous Current: 62A
• Max Burst Current: 70A, 10seconds
• Cells: 4–6 S Li-Po
• Recommended Props: 12x8 to 14x7
• Slots, Poles: 12, 14
• Diameter:  50 mm
• Shaft Diameter: 6.0 mm
• Weight: 355 g
• Brushless ESC: 80A

Tomcat G90 5625-KV330 Brushless Motor

Overview

The Tomcat G32 Brushless motor. This is a high-end motor combines ultra-high power and super efficient design to deliver outstanding performance.

Specifications

• Type:......................... TC-G-4320-KV830 (G32)
• KV(rpms per volt):... 830
• No load current: ....... 2.5 A @10V
• Resistance:................ 0.024 ohms
• Watts:........................ up to 1000
• Continuous Current:... 42A
• Max Burst Current:.... 60A,10seconds
• Cells:......................... 3–5 S Li-Po
• Recommended Props: 11x7 to 14x10
• Slots,Poles:............... 12,14
• Diameter:.................. 43 mm
• Shaft: Diameter:........ 5.0 mm
• Weight:...................... 208 g
• Brushless ESC:......... 70A
