Piper Cub J3 1180mm (46.5") Wingspan Balsa Wood LaserCut Aircraft Upgraded

Our Price:

$137.99

Optional Versions
Quantity

OUT OF STOCK


Availability No items available
Weight 5.00 lbs
SKU DW-S0801

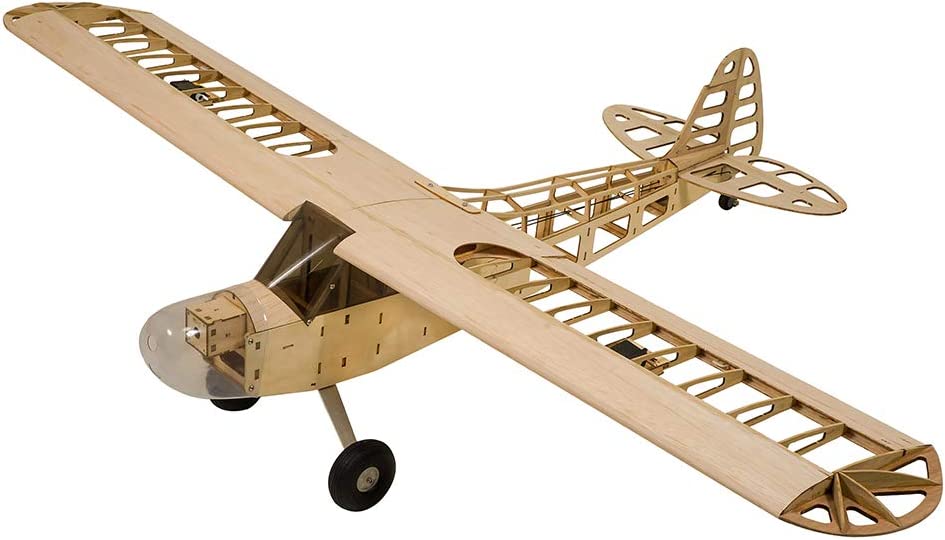

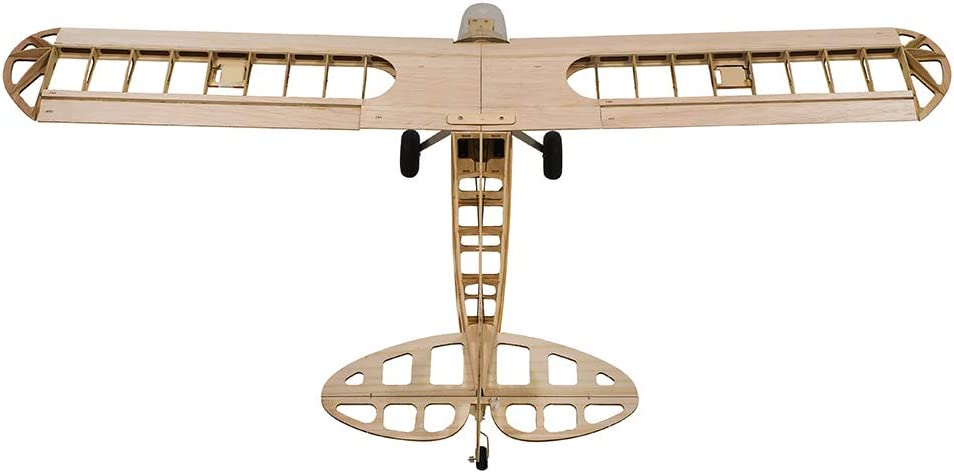

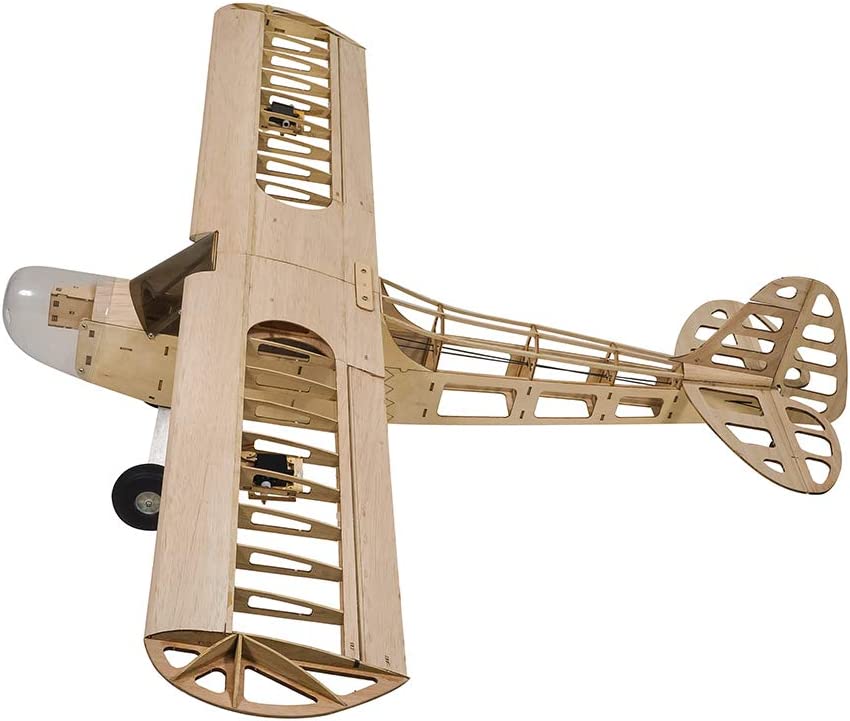

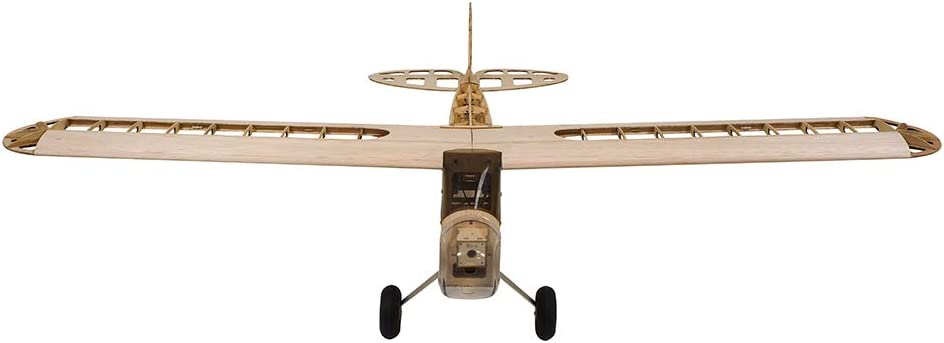

Piper Cub J3 1180mm (46.5") Wingspan Balsa Wood LaserCut Aircraft Kit

  • This is the 2021 upgrade version of S08 1.2M J3, it features detachable wing, solid and lightweight structure, optimize the details with more beautiful apperance. Upgrade cabin with magnet lock design for easy to install and replace the power system.

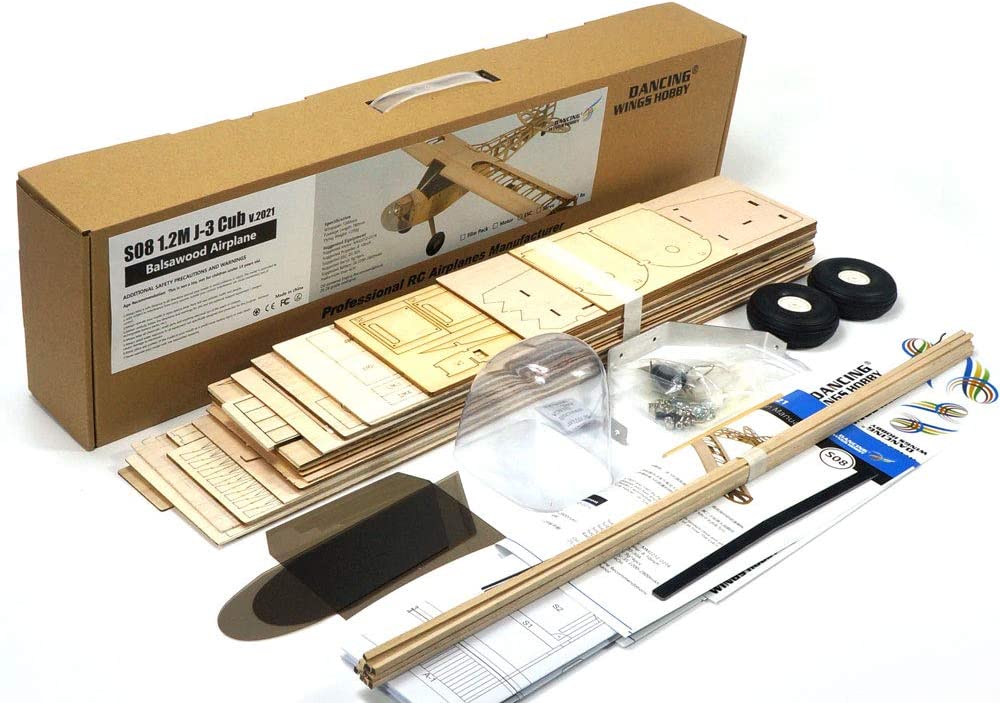

  • Kit also includes molded plastic cowl, windscreen, functional landing gear, metal rods, and comprehensive hardware pack, that will give you a realistic airplane model look.
  • This balsa wood plane model designed with 1180mm upper wingspan for very stable flight and is suitable for beginners.

Comparing with the old S08 J3,the current upgraded J3 has the following upgrades:
1) Scale cowling and inside window shield
2) Removable Wing, more convenient to put into the car
3) Added Aluminum Structure/Bracing
4) Cabin designed with magnetic absorption,easier to set and replace the power system.

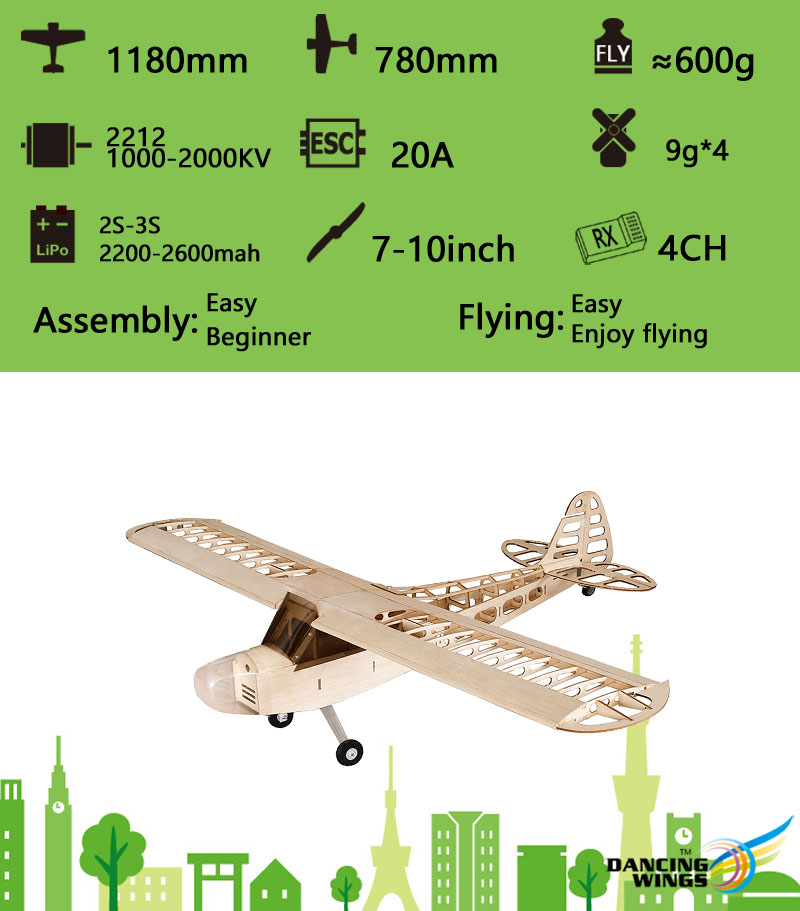

Specification:
Wingspan: 1180mm (46.5")
Fuselage Length: 780mm (30.7")
Flying Weight: 600g (21.2 oz)

Suggested Power System:
Electric Motor:2212 1100KV
ESC: 20A
Servo: 9g * 4pcs  (See all RedwingRC Servos)
Propeller: 8-9 inch
BATT:3S 2200-2800mAh (see all RedwingRC batteries/chargers)
Radio: more than 4CH
Charger: Balance Charger (PLC100)


Note:
KIT version does not included any electronic device.
Glue is not included.

Optional Versions Include (make selection with drop down above):

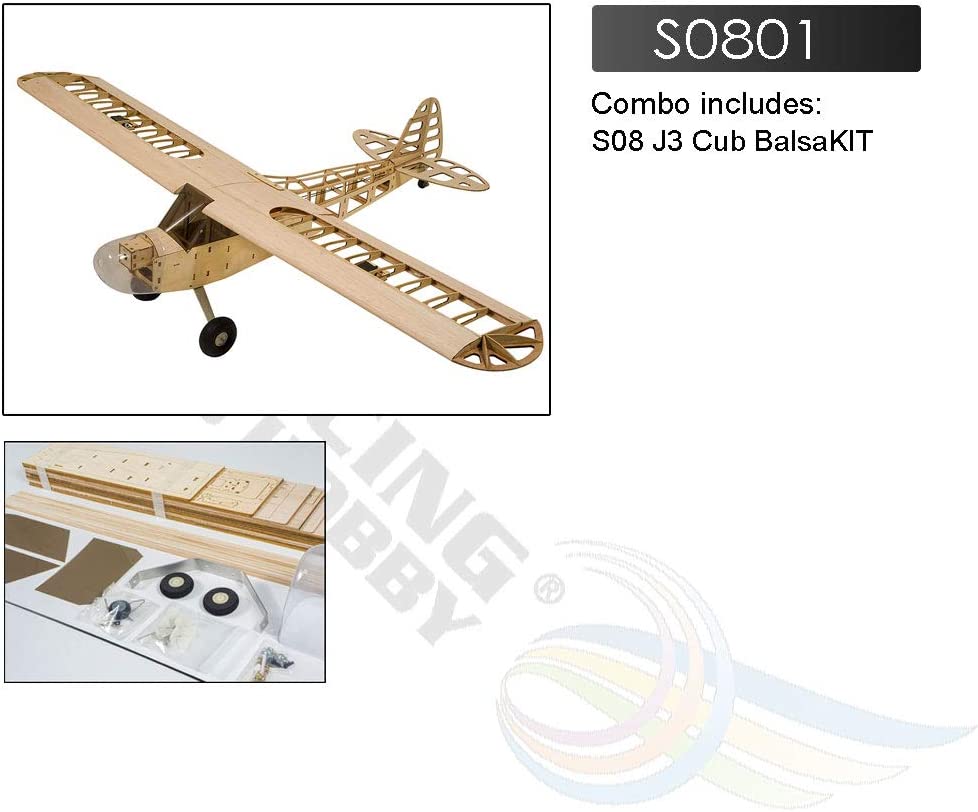

S0801=J3 Balsa KIT only

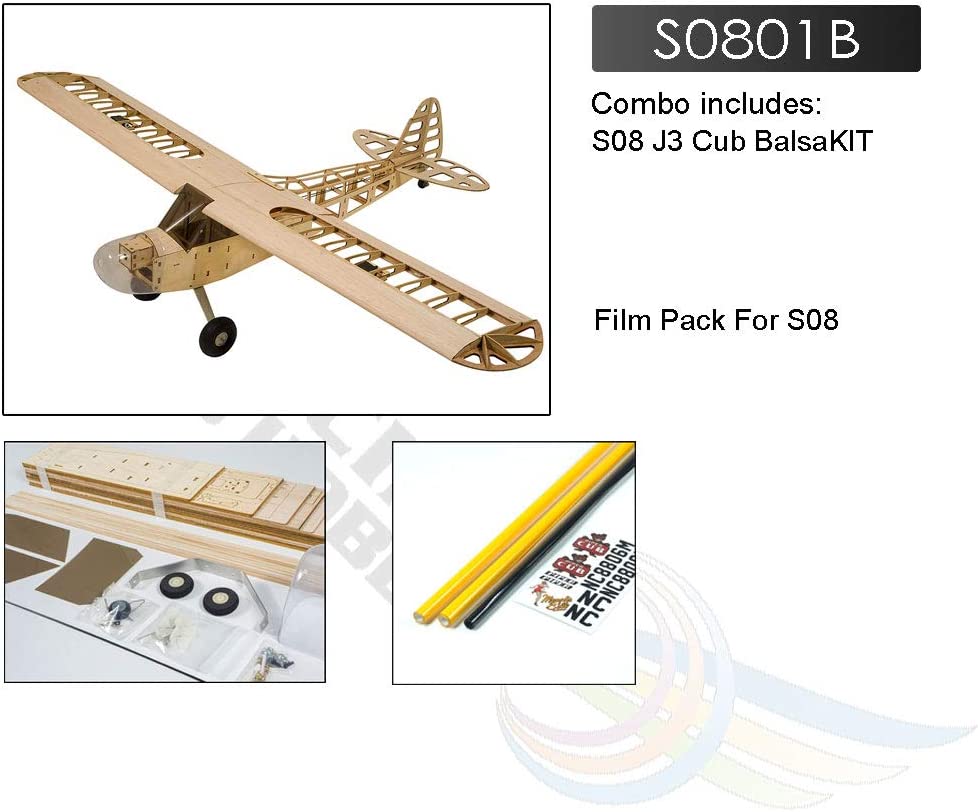

S0801B=KIT+4M Film (colors: Yellow 4M)

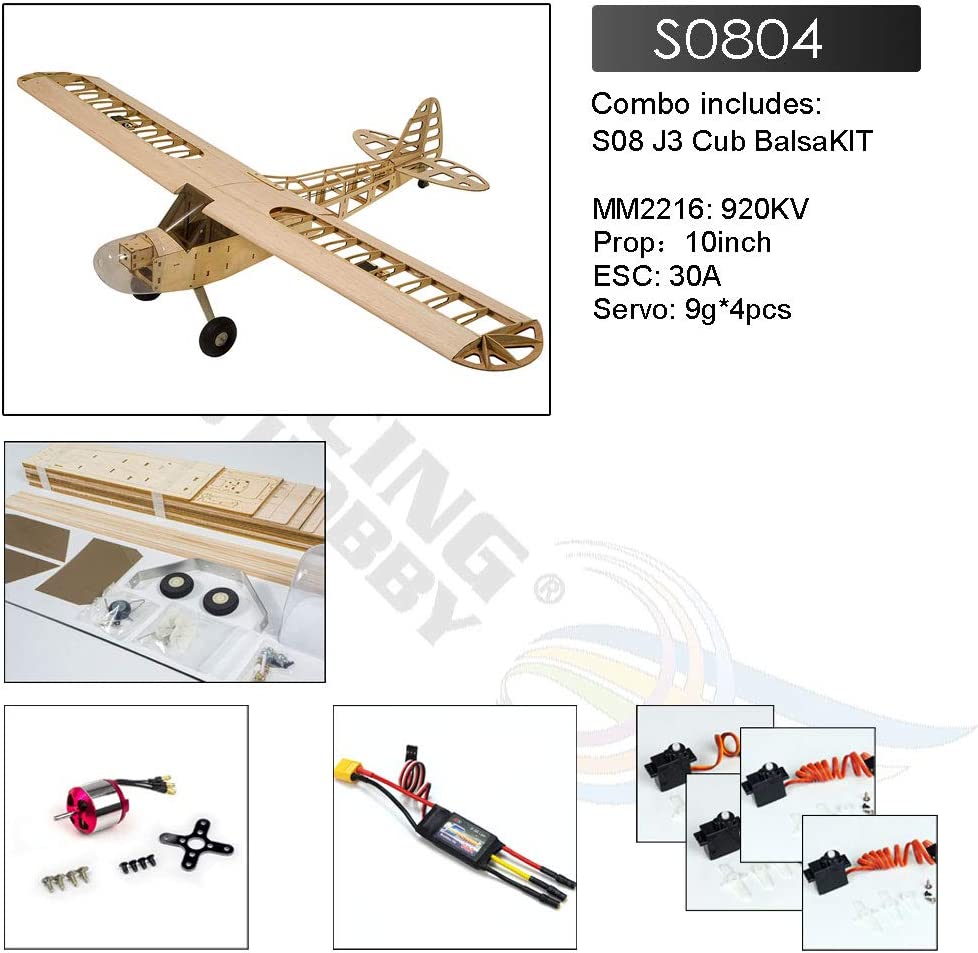

S0804=KIT+Motor (2212 1100kv)+ESC(20A E-Power)+Servo(9g*4)

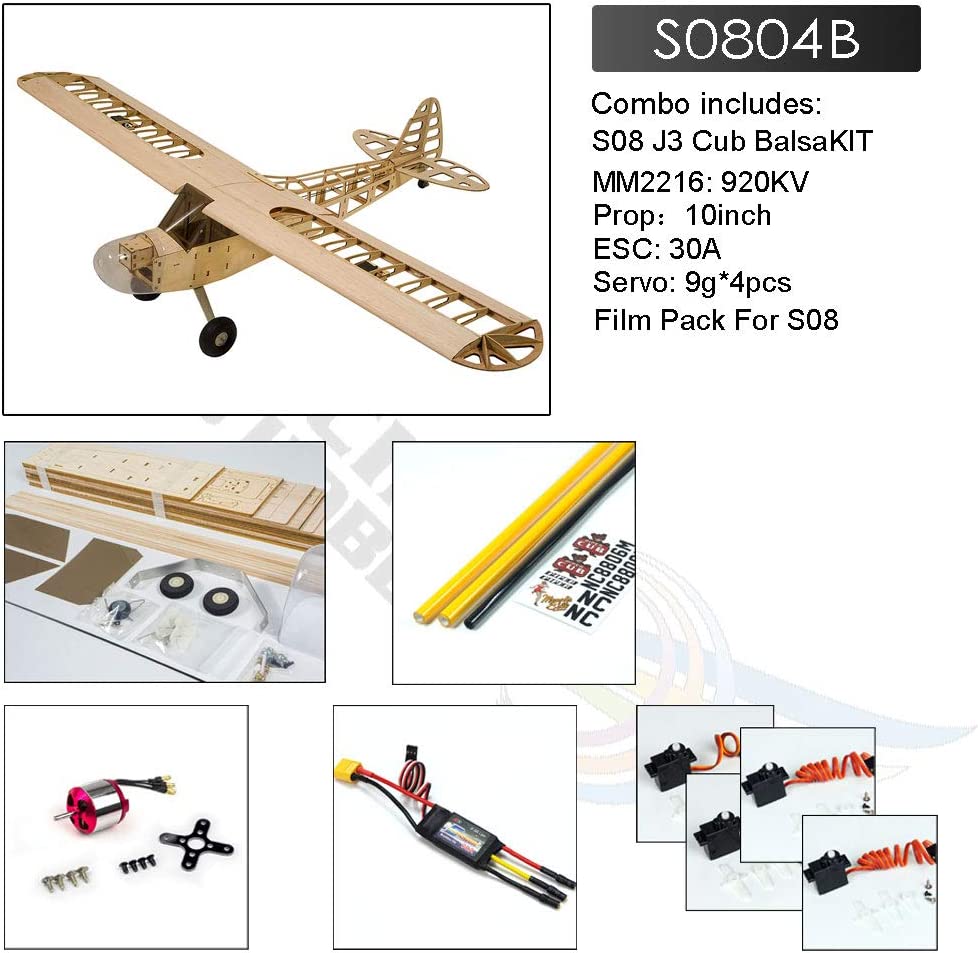

S0804B=KIT+Motor+ESC+Servo+4M Film (colors: Yellow 4M)

$20 Flat Shipping US only--contact us at [email protected] to calculate international shipping cost






: *
: *
: *


Servo Extensions 22AWG and 20AWG

High quality 22AWG wire, twisted silicone wire extensions. JR type connections, so they will plug into any receiver/switch, and most servos (Hitec/JR/PowerHD/etc etc....futaba you would have to trim the edge off).


  • Soft flexible silicone casing
  • Heavy duty 22awg
  • Universal - XQ Power/Hitec/Power HD/JR/more...
  • Reliable! We've NEVER gotten a pair returned

    Prices
    • 2" 1 pair - $2.50
    • 2" 2 pair - $4.50
    • 2" 3 pair - $6.99

    • 3" 1 pair - $3.50
    • 3" 2 pair - $6.50
    • 3" 3 pair - $8.99

    • 6" 1 pair - $3.99
    • 6" 2 pair - $6.99
    • 6" 3 pair - $9.99

    • 8" 1 pair - $3.99
    • 8" 2 pair - $6.99
    • 8" 3 pair - $9.99

    • 10" 1 pair - $3.99
    • 10" 2 pair - $6.99
    • 10" 3 pair - $9.99

    • 12" 1 pair - $4.99
    • 12" 2 pair - $8.99
    • 12" 3 pair - $12.99

    • 14" 1 pair - $4.99
    • 14" 2 pair - $8.99
    • 14" 3 pair - $12.99

    • 16" 1 pair - $4.99
    • 16" 2 pair - $8.99
    • 16" 3 pair - $12.99

    • 18" 1 pair - $6.99
    • 18" 2 pair - $10.99
    • 18" 3 pair - $13.99

    • 24" 1 pair - $7.99
    • 24" 2 pair - $12.99
    • 24" 3 pair - $15.99

    • 28" 1 pair - $7.99
    • 28" 2 pair - $12.99
    • 28" 3 pair - $15.99

    • 32" 1 pair - $7.99
    • 32" 2 pair - $12.99
    • 32" 3 pair - $15.99

    • 36" 1 pair - $8.99
    • 36" 2 pair - $14.99
    • 36" 3 pair - $17.99

    • 44" 1 pair - $8.99
    • 44" 2 pair - $14.99
    • 44" 3 pair - $17.99

    • 48" 1 pair - $8.99
    • 48" 2 pair - $14.99
    • 48" 3 pair - $17.99


EX

$2.50

Bob Smith Industries Insta-Cure Super Thin CA

Untitled Document

Description:

Bob Smith Industries CA Glue

Insta-Cure™

Insta-Cure™ has a water-thin viscosity that wicks deep into joints by capillary action and cures in a matter of a few seconds. Surfaces to be bonded must be tight fitting and should be held together while you apply the CA around the edges of the seam. At the moment CAs cure, they give off a vapor that can irritate the nose and eyes, so be prepared. Thin CAs work very well on balsa since they penetrate into the wood and form more than just a surface bond.

Works Best On:

  • Balsa Wood
  • Ceramics

Works Good On:

  • Soft Wood
  • Fiberglass
  • Hard Plastics
  • Water-Resistant
  • CA Hinges



Avaliable in 2oz and 3/4 Pocket Size.

Pocket CAs feature a new top that has a pin built into the cap that covers the nozzle. This pin seals the bottle so that if it is tipped over, the bottle will not leak. This makes the Pocket CAs ideal for keeping in your tool or field box, just like our IC-Gel. One disadvantage that the new Pocket CA top has is the bluntness of the nozzle. This makes it more difficult to apply small amounts of the CA, especially in tight places. From the feedback we have received, it appears about 25-30% of users prefer the new Pocket CA top, which means that over 70% prefer our standard top for general bonding purposes. Most users are buying both types. Our original top for the workshop, and the Pocket CA for use out in the field. The 3/4 oz. Pocket CAs are available in BSI's Insta-Cure, Insta-Cure+, Maxi-Cure and Super-Gold+. BSI's new extender tip #304 works on the Pocket CA.



Click to Download Safety Data Sheet







BSI-CA-

$4.99

Bob Smith Industries Insta-Cure+ Gap Filling CA

Untitled Document

Description:

Bob Smith Industries CA Glue

Insta-Cure+™ Super Glue, CA

Insta-Cure+™ is a higher viscosity CA for loose fitting joints in which the adhesive must bridge gaps. Normally, the thicker CA is applied to one surface and then the parts are held tightly together for about 5 to 15 seconds. For large surface areas, including those with close fitting joints such as laminations, INSTA-CURE+ ™ should also be used. To prevent premature curing, don’t spread the glue into a thin film. Lay down a serpentine bead with about 1" separations on one surface, then assemble the parts, letting the pressure spread the CA out.

Directions:

Unscrew top from nozzle. For finer applications, use the extender tip. Apply Insta-Cure+™ CA to one side of the parts being joined, then hold them tightly together for 5-15 seconds. For larger bonding areas, apply serpentine beads of the CA with enough spacing to allow for the spreading of the adhesive. Insta-Set™ accelerator can be sprayed to cure the CA that oozes from joints. Full strength is reached in three hours. Wipe the nozzle clean before replacing screw-on top. Refrigerate to extend shelf life. Cured CA is stable from -40 to 220° F. Soak extender tip in acetone for cleaning



Works Best On:

  • Balsa Wood
  • Soft Wood

Works Good On:

  • Hard Wood
  • Glass & Metals
  • Fiberglass
  • Ceramics
  • Hard Plastics
  • Rubber
  • Laminating
  • Water-Resistant
  • Reinforcing



Avaliable in 2oz and 3/4 Pocket Size.

Pocket CAs feature a new top that has a pin built into the cap that covers the nozzle. This pin seals the bottle so that if it is tipped over, the bottle will not leak. This makes the Pocket CAs ideal for keeping in your tool or field box, just like our IC-Gel. One disadvantage that the new Pocket CA top has is the bluntness of the nozzle. This makes it more difficult to apply small amounts of the CA, especially in tight places. From the feedback we have received, it appears about 25-30% of users prefer the new Pocket CA top, which means that over 70% prefer our standard top for general bonding purposes. Most users are buying both types. Our original top for the workshop, and the Pocket CA for use out in the field. The 3/4 oz. Pocket CAs are available in BSI's Insta-Cure, Insta-Cure+, Maxi-Cure and Super-Gold+. BSI's new extender tip #304 works on the Pocket CA.



Click to Download Safety Data Sheet
