Spacewalker 460mm Mini Indoor Laser-Cut Balsa Wood Model (Kit, PNP or BNF Electric Power version)

Market Price: $74.90
Our Price:

$49.99

You Save

33%



FREE SHIPPING

Optional Versions
Quantity (7)

Availability 7 in stock
Weight 1.30 lbs
SKU DW-K0901

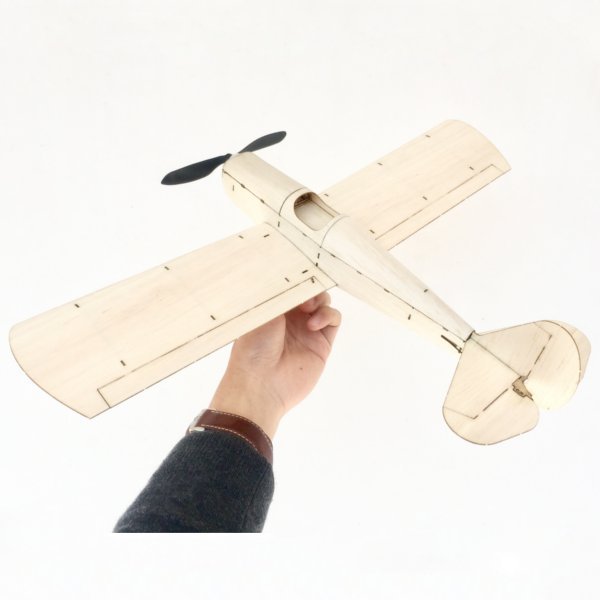

Spacewalker 460mm Mini Indoor Laser-Cut Balsa Wood Model (Kit, PNP or BNF Electric Power version)

The Warner Revolution I, also marketed as the Spacewalker I, is an American homebuilt aircraft that was designed and produced by Warner Aerocraft of Seminole, Florida. The aircraft is intended to be reminiscent of the open cockpit monoplanes of the 1930s, such as the Ryan ST..

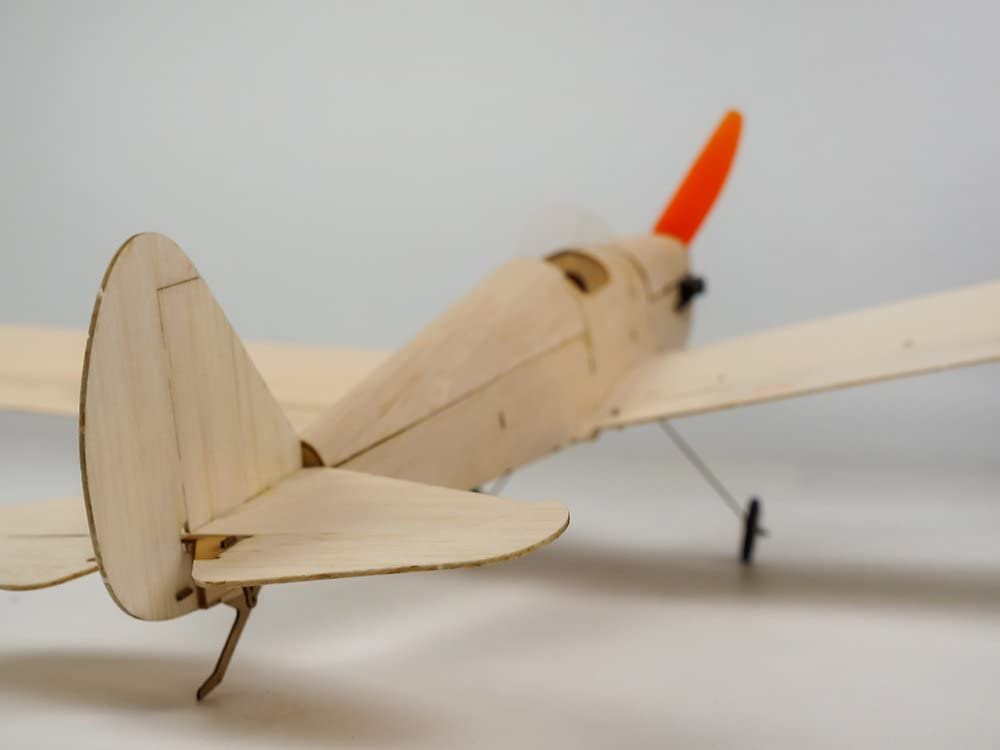

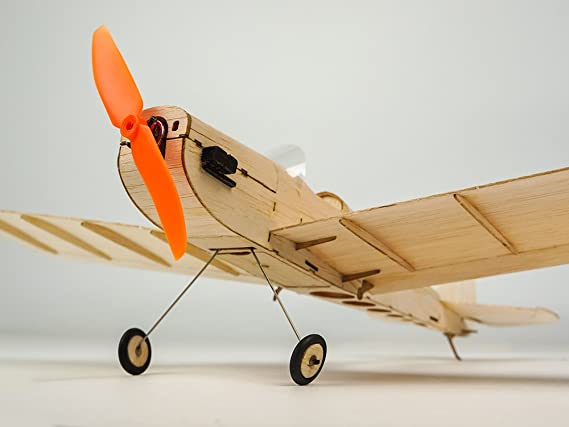

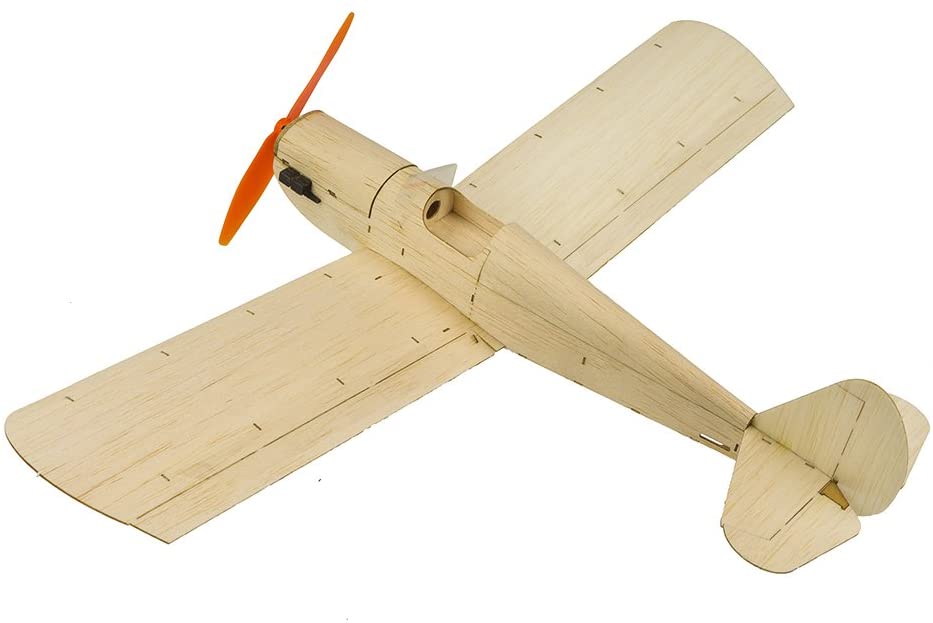

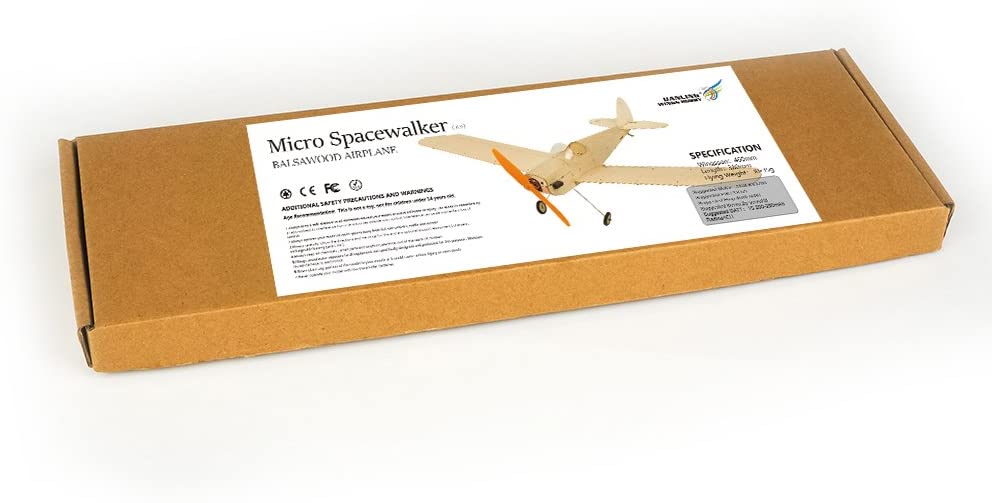

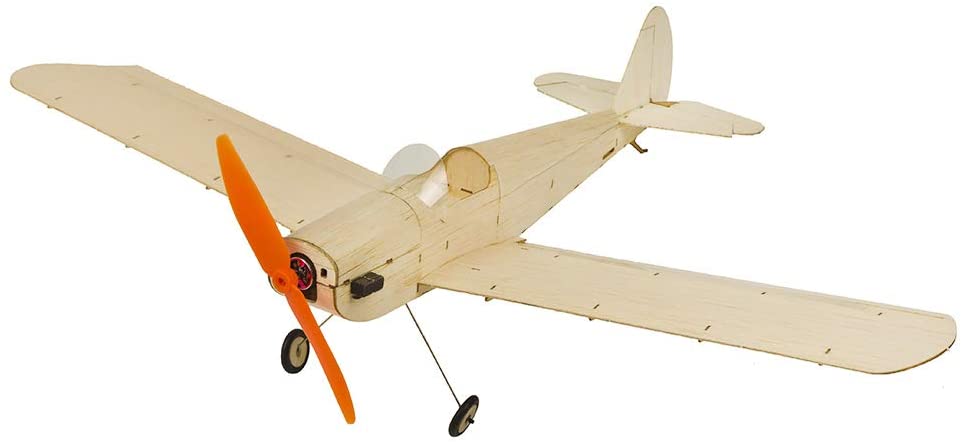

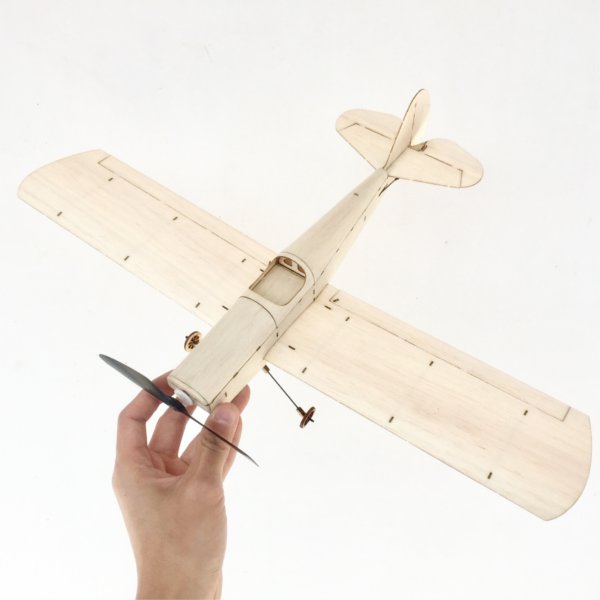

Our model captures the very essence of this homebuilt aircraft. This Micro Balsa plane is built from balsa and hardwoods with all the parts beautifully laser cut that are extremely accurate allowing you to build the perfect model. The PNP kit is easy to operate and suitable for beginners and comes with everything you need except your battery and RX/TX. The BNF version includes 2 batteries and charger plus a DSMX/2 Receiver.

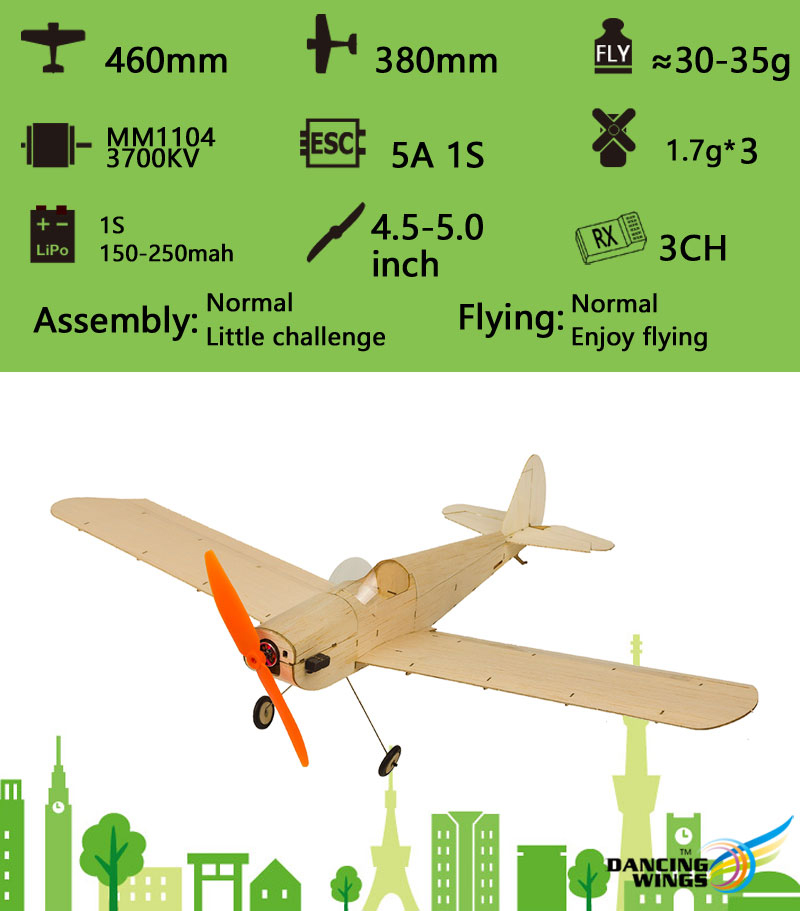

Specification:
  • Wingspan: 460mm
  • Length: 380mm
  • Flying Weight: ≈35g
  • Radio: more than 3CH

Optional Power System:

  • Motor: 1104 3700KV (included in PNP)
  • ESC: 5A /1S (included in PNP)
  • Servo: 1.7g * 2pcs (included in PNP)
  • Propeller: 4.5-5.0" (included in PNP)
  • Battery: 1S 150-250mAh and charger (included in PNP+)
  • Receiver: MINI RX144 (DSMX/2) (included in BNF version)
  • Transmitter: 3Ch or greater (Not included)

Kit Versions:
K0901= KIT only
K0902= KIT+Motor(1104 3700KV+1.5mm Prop Saver+5030 Prop+2.0 Pin 3P)
K0904 (PNP)= KIT+Motor+ESC( 1S7A+2.0Pin 3P+Walkera Female 2P+1.25P 2pin)+Servo(1.7g*2)
K0905 (PNP+)= K0904+2pcs 1S 100mAh Battery+USB Charger

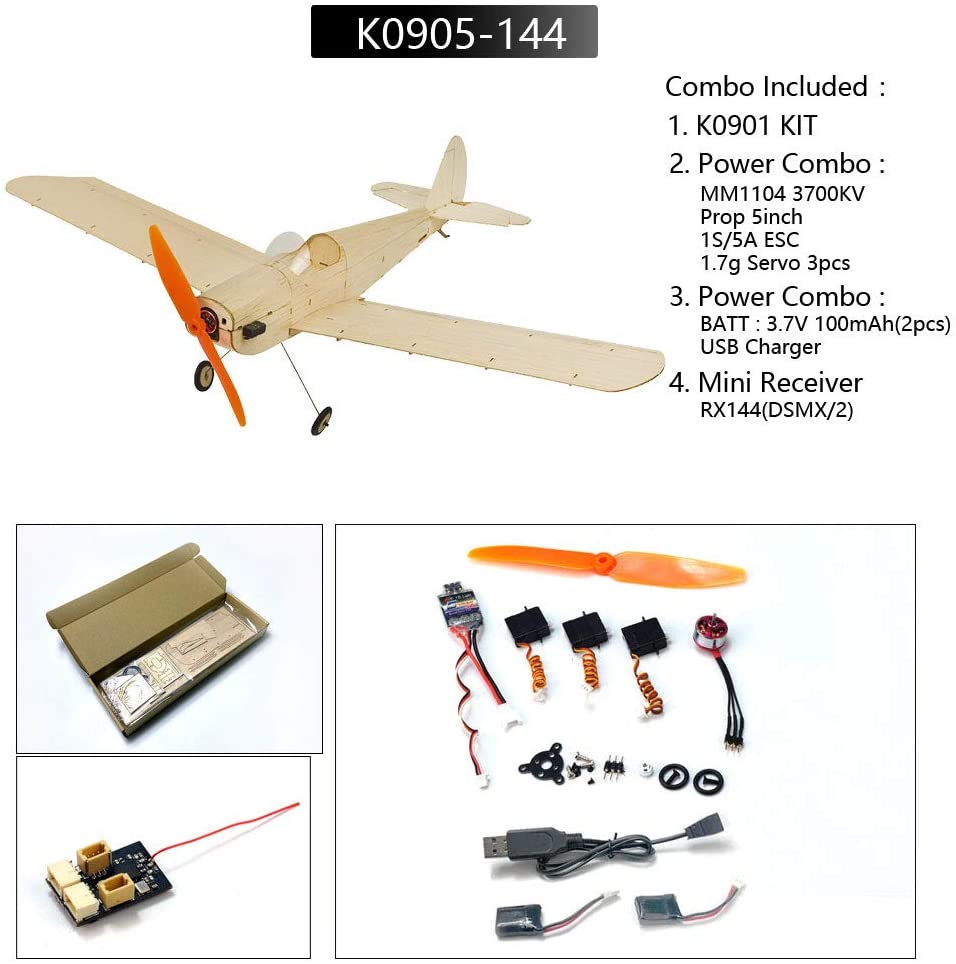

K0905-144 (BNF)= K0905+Mini Receiver RX144 (DSMX/2)


Free shipping lower 48 USA only. Contact us at [email protected] for international shipping

: *
: *
: *


DLE 35RA Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight - resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.


Download DLE 35RA Mounting Template
Download DLE 35RA Manual Coming Soon


Specifications:

  • Displacement: 34.9 cc (2.13 cu in)
  • Bore: 1.5 in (38.5 mm)
  • Stroke: 1.17 in (35RA mm)
  • Weight: 2.6 lb (42oz)
  • RPM Range: 1,600-8,500
  • Output: 4.1 hp @ 8,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
  • Suggested Propellers: 18x6, 18x8, 19x6, 19x8, 20x8, 20x6
  • Suggested Break-in Prop: 18x6
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.6 oz (60 g); Ignition: 5.2 oz (120g)
  • Recommended Propeller: Redwing RC 3d Props - type 19x6 19x8 20x6 20x8 Propeller





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-35 RA

$379.00

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

  • Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
  • Bore: 1.77 in (45 mm)
  • Stroke: 1.38 X in (35 mm)
  • Weight: 3.6 lb (1.65 g)
  • RPM Range: 1,350-8,500
  • Output: 5.5 hp @ 7,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 23x8, 24x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:







  • Two crankshaft bearings-simple design for lighter weight
  • Aluminum alloy crankcase
  • Four petal V-type reed valve bottom induction system
  • Walbro carburetor
  • Fully automatic electronic ignition
  • Two year limited warranty through Hobby Services beginning at date of purchase
  • INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$399.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
