RCGF 70CC Twin Stinger Gas Engine

Contact UsCustomer Reviews
  0
  4. RCGF 70CC Twin Stinger Gas Engine

RCGF 70CC Twin Stinger Gas Engine

Ask a question about this product
Printable version

Share

Options

Market Price: $639.99
Our Price:

$529.99
You Save

17%
Quantity (2)

Details

Availability 2 in stock
Weight 5.00 lbs
SKU RCGF-70cc-Twin
Manufacturer RCGF Stinger Engines

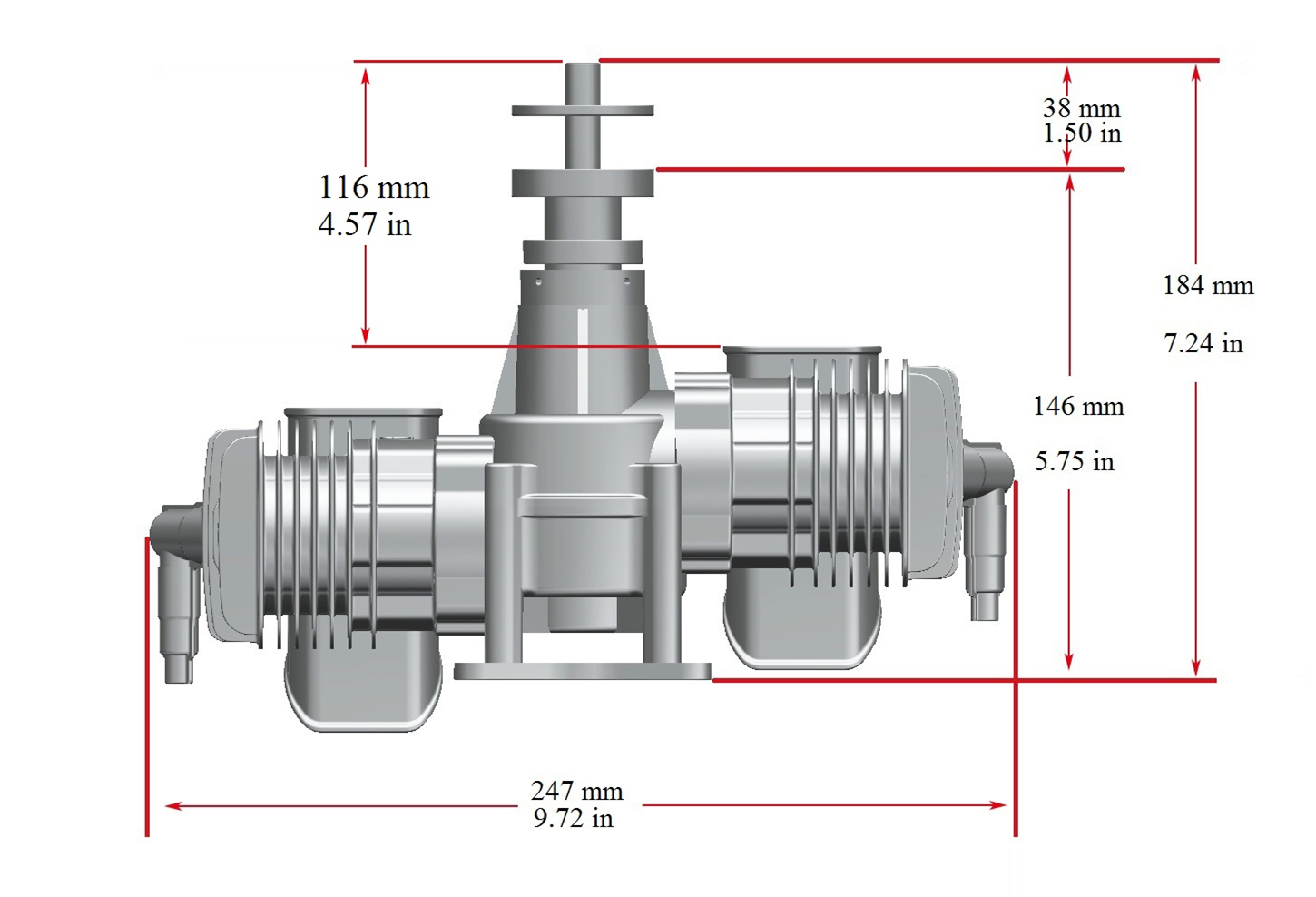

The New RCGF 70cc Twin Stinger Engine, More Power!!
This new engine provides smoother operation for your sport aircraft with low-vibration and the unique sound of a horizontally opposed twin! This gasoline engine is designed for large scale aircraft and provides excellent quality and reasonable price!


RCGF 70cc TWIN STINGER Parameters:

  • Type : 2 cycle piston valve type gasoline engine for airplane

  • Piston displacement Cylinder (cc) : 70cc(4.27 cu.in)

  • Bore x Stroke (mm): 1.53 in(39mm) x 1.18 in (30mm)

  • Carburetor : Walbro

  • Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)

  • Power supply: 6-14V

  • Maximum Output :7.4HP/8600rpm

  • Requires: Gasoline, 2-cycle oil, ignition battery & propeller

  • speed rang : 1500-8600rpm

  • Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1

  • (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)

  • Lubrication Oil : 2 cycle engine oil

  • Suggested Propellers: 22×10, 23×8, 23×10,24X8

  • Suggested Break-in Prop: 23X10

  • Sparking plug: NGK CM6 Type

  • Cooling System : Air Cooled

  • RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.


Weight :

  • Engine: 3.32 lb (1508g)

  • 2XMuffler: 5.36 oz (152 g)

  • Ignition Module: 5.11 oz (145 g)

  • Total: Weight: 3.98 lb (1805 g)


Technical Data:

  • Ignition Battery: 6-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack

  • Gasoline/Oil Mix: 30:1

  • Replacement Spark Plug: NGK CM6 or equivalent

  • dle Speed: 1600 rpm/min

  • Static Thrust:

  • 34.2 lb (15.5 kg) @ 328 ft (100 m) altitude

  • 30.9 lb (14kg) @ 5,900 ft (1800 m) altitude

$20 flat rate shipping for Domestic US only ($85 economy to Canada) send us an email at [email protected] to calculate shipping cost.










: *
: *
: *

Fuel Filter

Fuel Filter

Description:
This is a handy break-apart fuel filter with screen for easy cleaning.

A very inexpensive way to ensure you don't suck dirt particles into your engine

SS-FFX

$3.99

GT Power Servo Consistency Tester

GT Power Servo Consistency Tester

Description:

GT Power Servo Consistency Master.

With this cool device you can test up to 3 servos at a time for consistency and precision. With the GT Power servo tester you can see how servos react in three different testing modes. Manual, Neutral, and Automatic.

---

Manual Mode:: Turn the knob at different speeds however you want to check reaction time.

Neutral Mode:: Make the servo go back to the neutral position.

Automatic Mode:: "window wiper mode"- make the servo swing back and fourth at max angle.

---

Specs:

  • Connect 1-3 servos simultaneously
  • Test in 3 different modes
  • Easy to read labels
  • LED lights

GT-SVT

$14.99

Bob Smith Industries Insta-Set

Bob Smith Industries Insta-Set

Untitled Document

Description:

Bob Smith Industries Insta-Set

Insta-Set™

INSTA-SET™ is a catalyst which acts as an accelerator that allows CAs to quickly cure in thick layers by enhancing the alkaline conditions during polymerization. INSTA-SET™ in a spray bottle is normally used to cure the CA that flows from joints when parts are pressed together. Applying an additional bead of thick CA along a seam and then curing it with INSTA-SET™ significantly enhances a joint’s strength. For difficult to bond materials, INSTA-SET™ can be applied to one surface and CA to the opposite surface. When brought together, they will bond instantly. INSTA-SET™ is formulated with a strawberry scent and activates CA in 6 to 8 seconds without any degrading of the CAs strength, which can occur with many other accelerators. It is compatible with all surfaces, even clear plastic and white foam.



Directions:

After joining parts with cyanoacrylate (CA, super glue), spray the seams with Insta-Set™ to cure the CA in 8 seconds. A bead of CA can then be applied to the outside and corners of joints before another application of Insta-Set™ to reinforce their strength. Insta-Set™ can also be applied to one part (with CA on the other) before joining for difficult to bond materials. Insta-Set™ is compatible with all surfaces, including clear plastic and all foams. It also is a great cleaning agent for adhesive residue and scuff marks. Store separately from CAs.



Works Best On:



Click to Download Safety Data Sheet

  • All Cyanoacrylates

BSI-AC-151

$5.99
