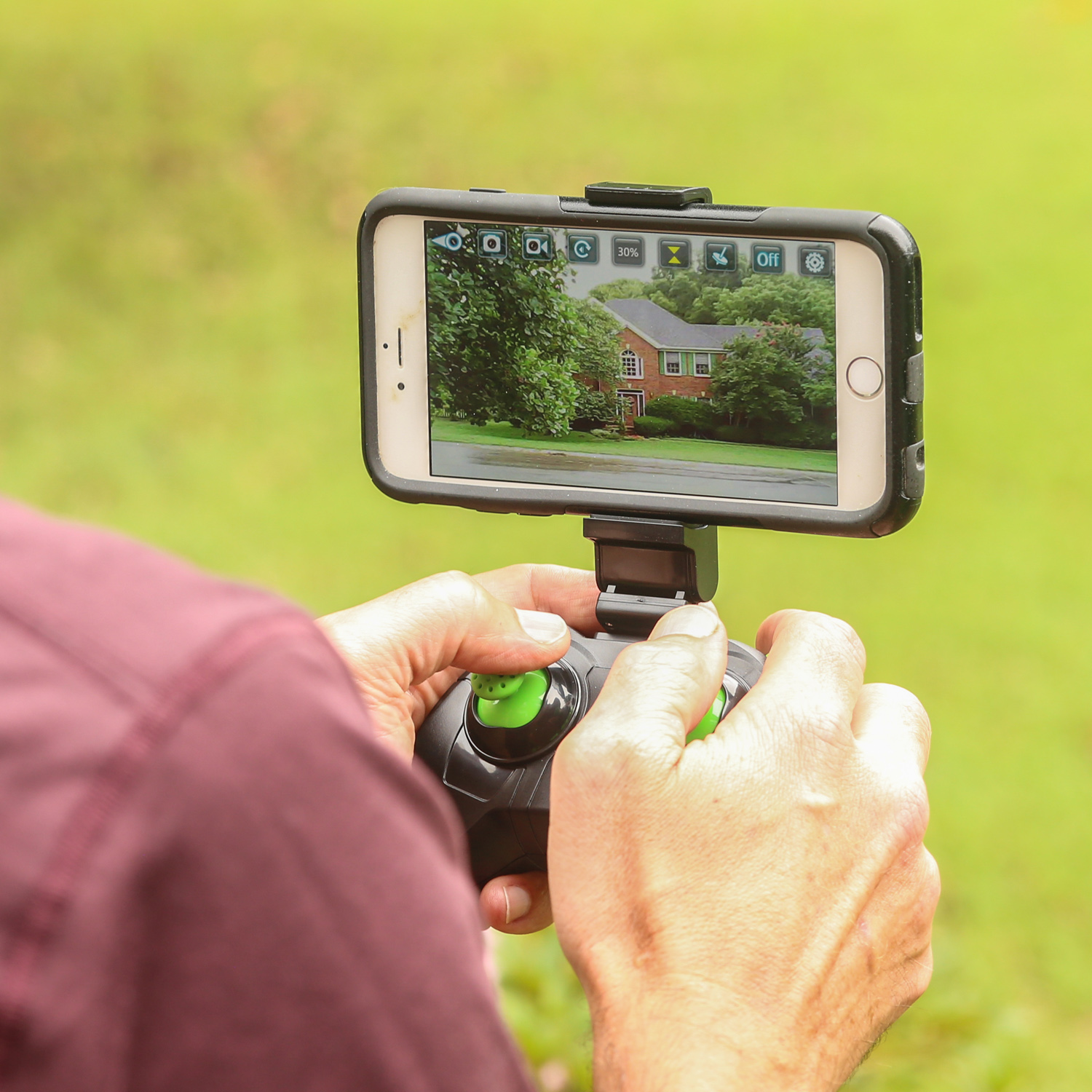

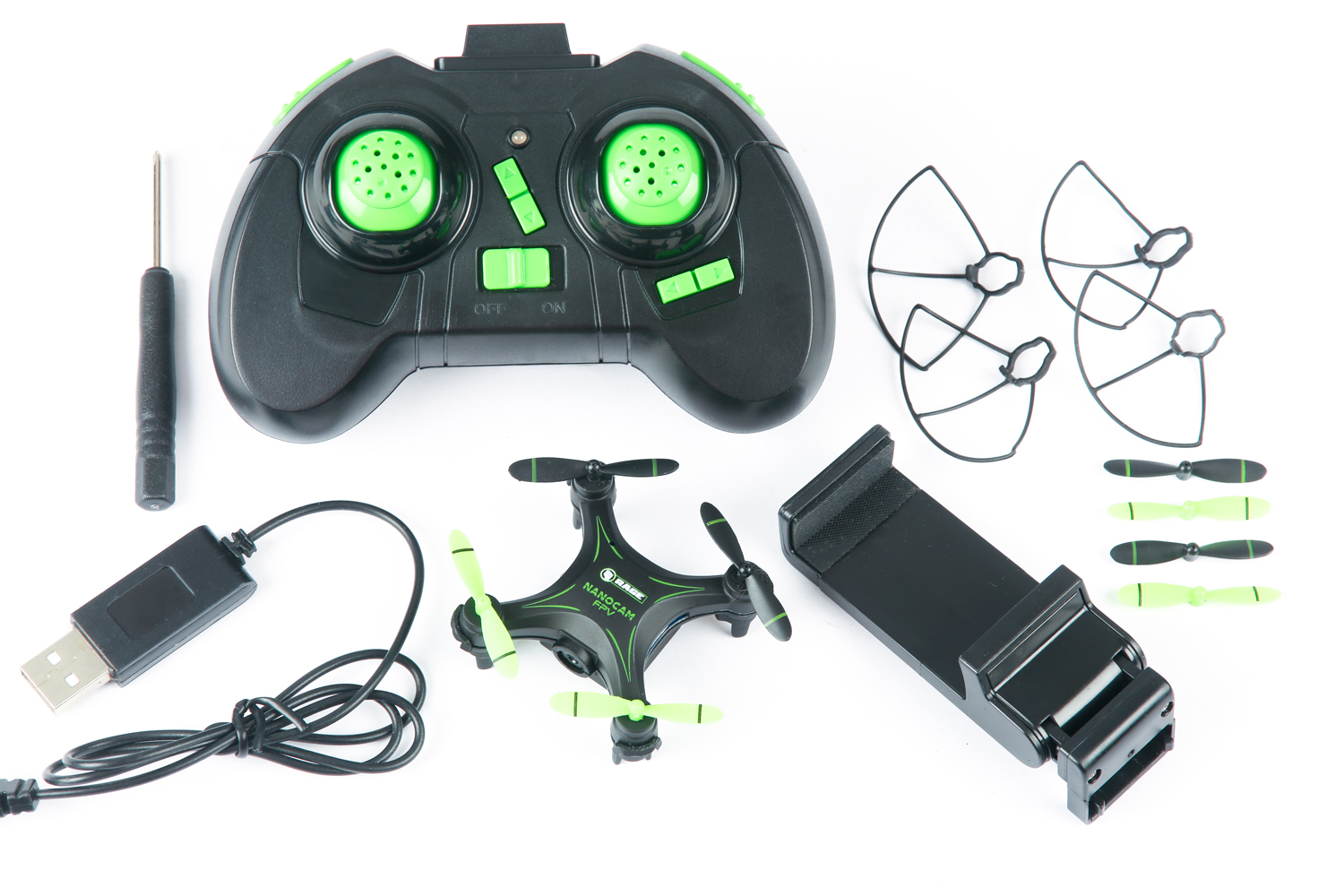

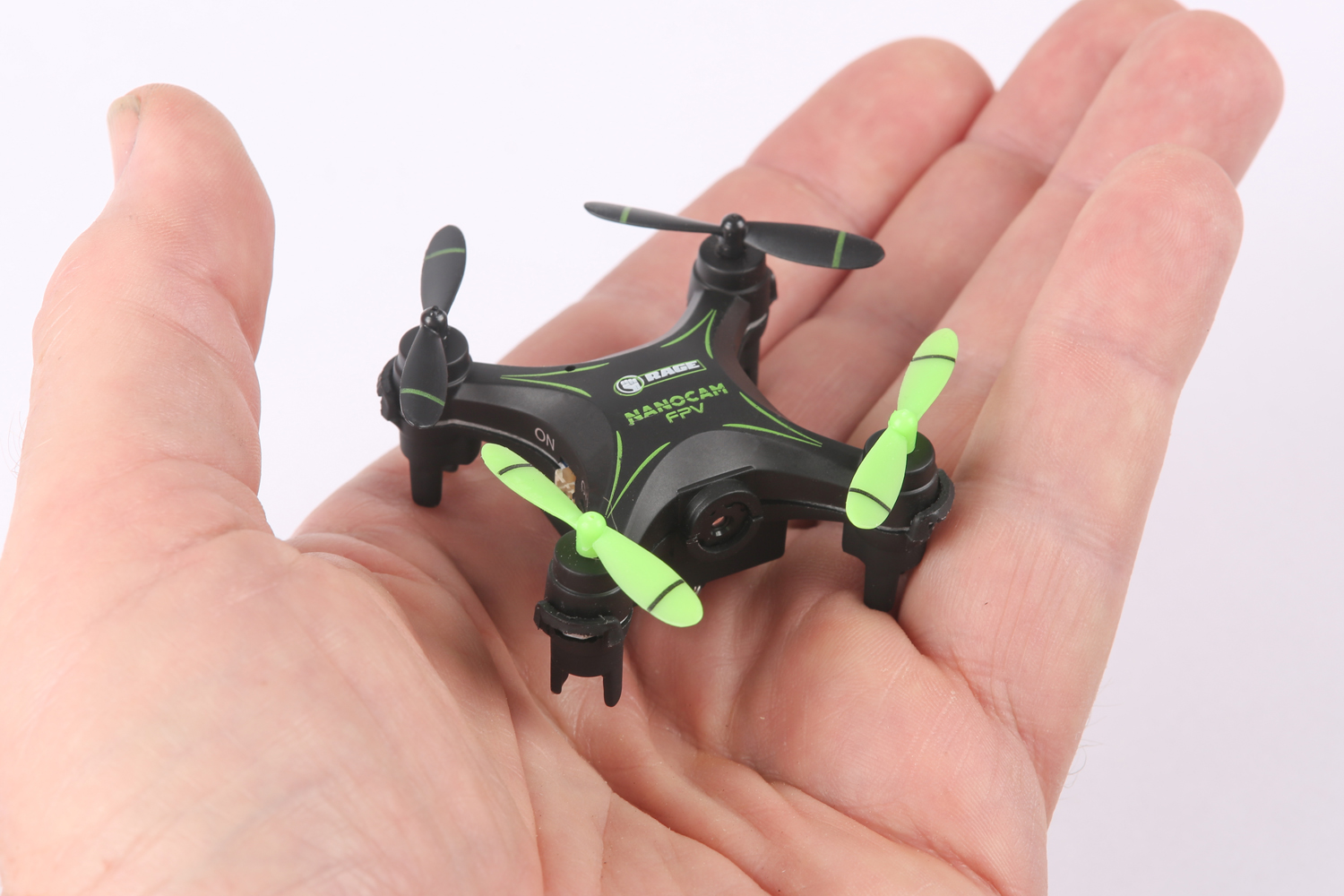

NanoCam Ultra-Micro FPV RTF Drone

Brass Collet with Tension Screw and Pin

Stinger GPS RTF Drone w/1080p HD Camera

35cc Nemesis 74" (1880mm)

Pre-order sale $100 off! Estimated Arrival late Aug 2023

• This is an EXTREMELY popular product and quantiities limited, so we STRONGLY recommend pre-ordering if you wish to receive a unit from the first shipment.

Credit Card or other payment will be charged at the time of order.

$30 Container Freight charge has been added to this item due to excessive Container prices!

We are growing again with the addition of the 30cc "Strong Design" Edge 540 V3. This 30cc SD EDGE was designed from the ground up by aeronautical engineer Adam Strong. Tested, perfected and approved, to make sure this is going to be the best 30cc Edge out there, in flight and quality/features. It is carbon fiber rich, in the wings fuselage and the accessories.

The Edge 540 is known for its unsurpassed harrier and slow alpha flight capability and this 30cc version is no different, and specially designed by Adam Strong to take advantage of the scale planes tendencies, but added thought into what you want out of a modern day RC plane. Prepare to be amazed!

Enjoy smooth clean knife edge and similar maneuvers as well as very predictable smooth 3D. Very even rolling harriers, easy hover and torque rolls - this plane is a GREAT learning tool with the wonderful advantages of gasoline.

This new 30cc Edge 540 comes with the same great features that Redwing provides with all of our planes. It is set up and ready for a DLE 30 or 35RA to be mounted right in - or try going electric with our new Tomcat Electric Motors with a little adaptation. A neat feature of the 30cc Edge is that is has a carbon fiber reinforcements in the fuselage and wings for added strength.

The 30cc Edge 540 is available in 3 new attractive schemes designed by Adam Strong. Get them while they are in stock. This is a great new plane so don't let this one slip by.

Product Manual

Check out this awesome plane in action!

Specifications:

• Wing span:
  • With tips:78.5
  • Without tips: 75"
• Wing area: 1145 sq. inches (wings and stabs measured ONLY) More surface area when considering fuselage
• All up flying weight: 10.5 to 12 lbs.
• Engine: DLE 30, DLE 35RA or similar, or Equivalent Electric System
• Recommended Spinner Size: 3"
• Recommended CG: 5" to 5.75" from the front half of wing tube
• Recommended Prop Size: 18x8 to 20x8
• Recommended Throws: adjust to liking as you fly LOW MED HIGH

  AIL 1.75”/30% 2.75”/40% 4”/60%

  ELE 2.5”/30% 3.25”/ 40% 4”/55%

  RUD 2.5”/20% 3”/ 30% 4.25”/40%







Features:

• Removable stab
• Ringed cowl
• Canister Tunnel built in
• Painted matching spinner (available separately)
• Includes a black plastic spinner
• Optional integrated air deflector for venting hot cowl air
• Fast Fly Feature: Pre-installed hinges (except rudder)
• Carbon Fiber Retention Pins in stabs
• Fiberglass tabs on stabs (stronger than wood)
• Carbon Fiber Wing Tube
• Metal Servo arm set
• Removable Side Force Generators / Racing Wing tips

We DO ship our planes internationally!

Please contact us with your location for more specific cost.
