Lightning 1500 Sport Glider PNP 59" (1500mm)

Contact UsCustomer Reviews
  0
  4. Lightning 1500 Sport Glider PNP 59" (1500mm)
The Redwing RC Office will be closed 15-25 Jan. Orders can still be accepted during these times and will be processed in the order received. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you when we return.
more offers

Lightning 1500 Sport Glider PNP 59" (1500mm)

Ask a question about this product
Printable version

Share

Options

Our Price:

$149.99
Charger Combo
Extra Prop
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 5.00 lbs
SKU top-035B
Manufacturer Top R/C Hobby

4 CH TopRC Lightning 1500 Sport Glider PNP 59" (1500mm)

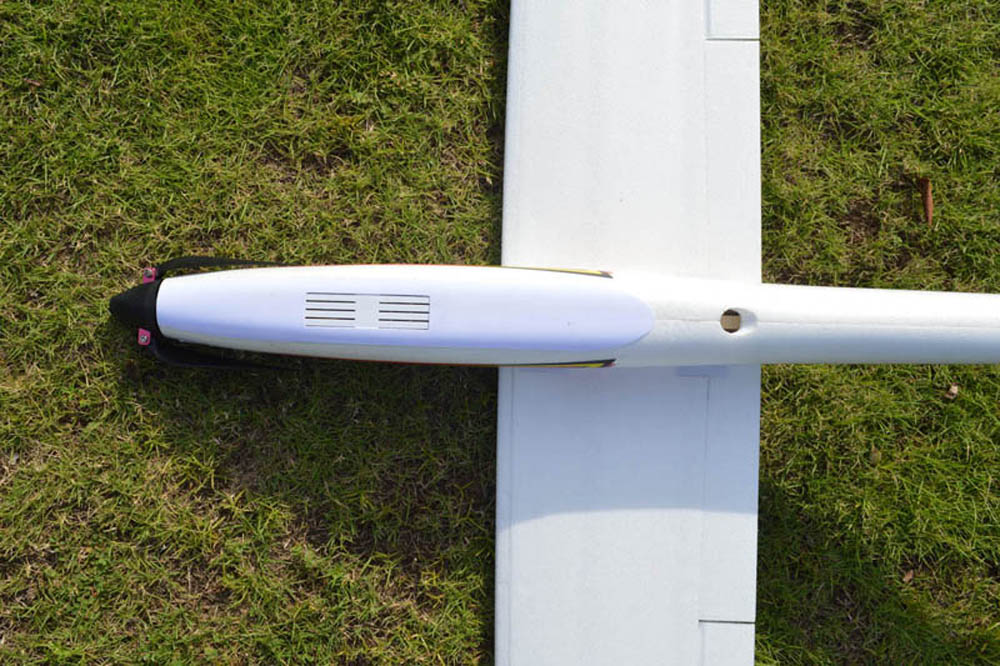

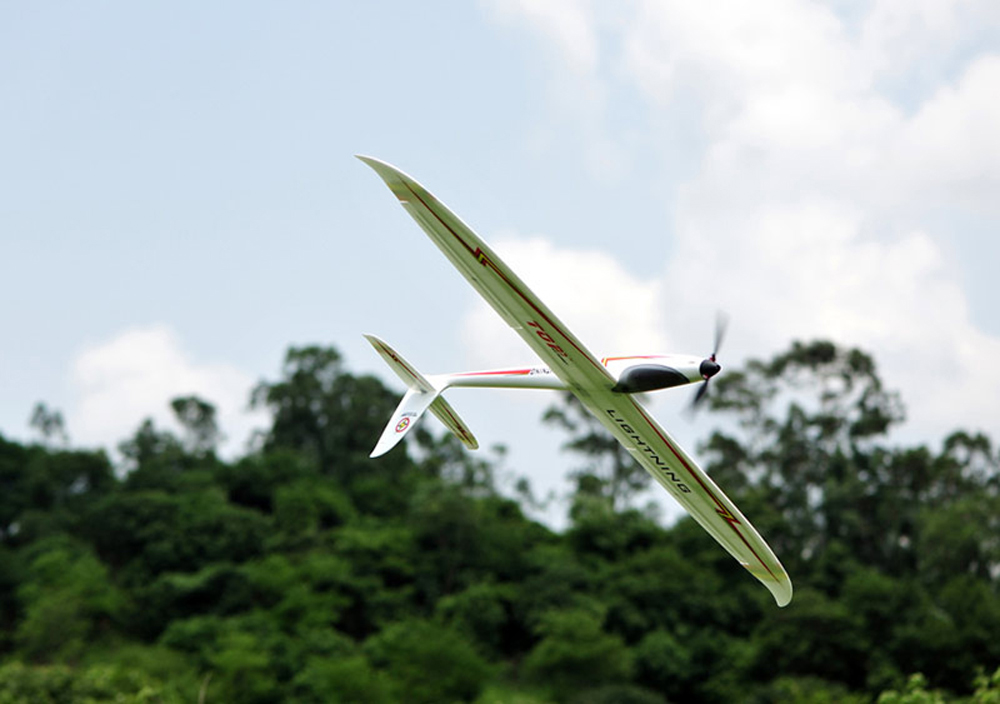

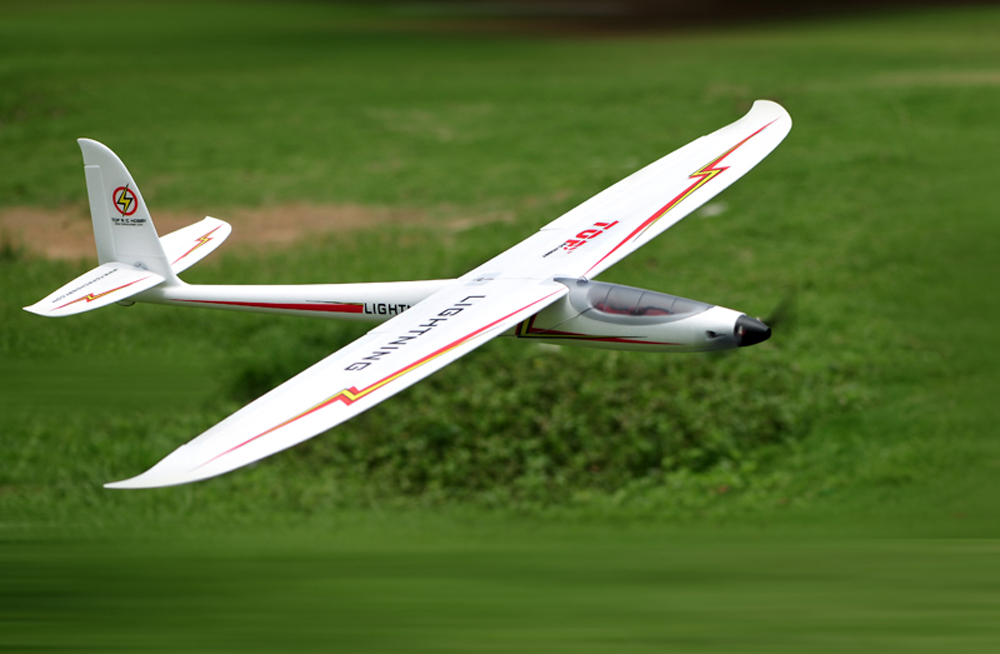

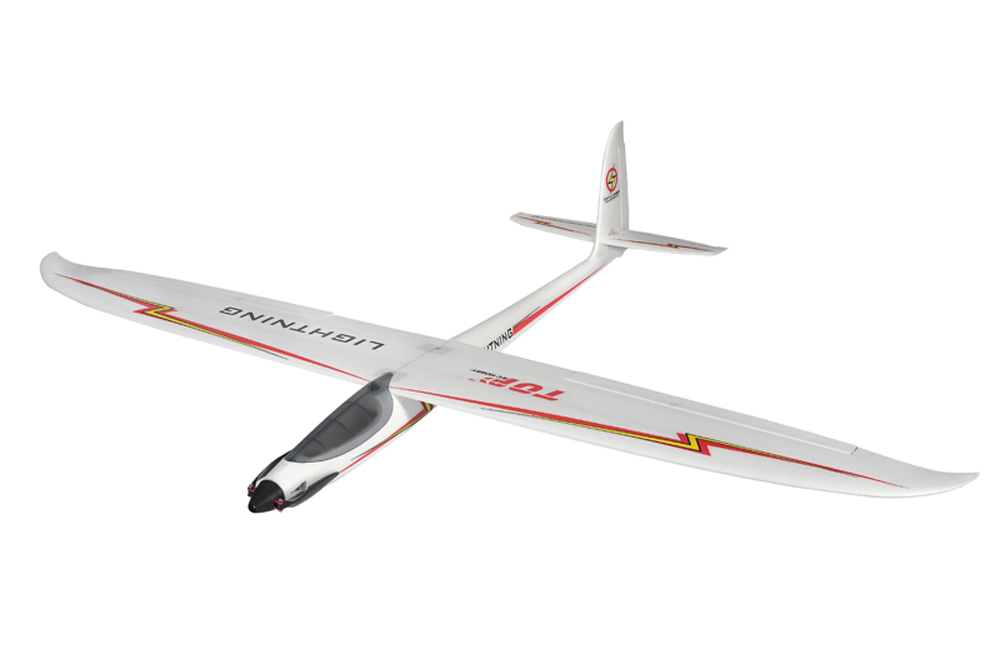

The Lightning 1500 Sport Glider is a high-performance electric glider with curved winglets for maximum gliding stability and high-efficiency. With its elegant wings and flowing fuselage lines it responds superbly to thermals. When required, the efficient C2415-850kv brushless motor powered with a 40A speed controller deliver an abundance of propulsive power. When sailing, the programmed esc brake allows the aluminum braced folding props to tuck away for maximum aerodynamic efficiency.

The planes docile flying characteristics and excellent performance in the air ensure that the Lightning 1500 provides a maximum of flying pleasure, whether you are a weekend pilot or an 'old hand'. You can enjoy floating through the air for long periods, as well as lively aerobatics - all with style and precision. The battery hatch is located under the easily remove canopy where a twist of a knob unlocks and locks the forward hatch securely into place.

The Lightning 1500 features a flying horizontal stabilizer which acts as the elevator for authoritive ascend and descend control.  Designed with its extremely stiff spar technology sets entirely new standards in the 1500mm wing span class. The ailerons are a wide and long feature, making pin-point landings easy while also improving the launch characteristics and giving the pilot a broad performance spectrum for high speed, aerobatics and thermalling.

Specifications:

  • wingspan: 1500mm/59''
  • Length: 1016mm/40''
  • Weight: 915g
  • Motor: C2415-850KV (included)
  • ESC: 40A Brushless ESC (included)
  • Battery: LI-PO 2200mAh 4S 14.8V (not included) (see all RedwingRC batteries/chargers)
  • Servo: 9gx4 (included)
  • R/C System: 2.4 GHz 4ch radio (not included) (see all RedwingRC radios/receivers)
  • Propeller: 10x7 folding

Features:

  • 4 channel full function radio controlled (Aileron,Elevator, Rudder, Throttle)
  • High quality, great stability, high performance, and aerobatic capability
  • Constructed of durable EPO flex foam and built in carbon fiber in wings and fuselage
  • Easy to assemble and low maintenance with removable wings for easy transport
  • Folding propeller for efficient flight and protection from damage on landing
  • Unique air inlet hole design for perfect heat dissipation
  • Landing skids on wings to protect foam when landing









: *
: *
: *

DLE 20cc Engine

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

DLE 35RA Engine

DLE 35RA Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight - resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.


Download DLE 35RA Mounting Template
Download DLE 35RA Manual Coming Soon


Specifications:

  • Displacement: 34.9 cc (2.13 cu in)
  • Bore: 1.5 in (38.5 mm)
  • Stroke: 1.17 in (35RA mm)
  • Weight: 2.6 lb (42oz)
  • RPM Range: 1,600-8,500
  • Output: 4.1 hp @ 8,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
  • Suggested Propellers: 18x6, 18x8, 19x6, 19x8, 20x8, 20x6
  • Suggested Break-in Prop: 18x6
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.6 oz (60 g); Ignition: 5.2 oz (120g)
  • Recommended Propeller: Redwing RC 3d Props - type 19x6 19x8 20x6 20x8 Propeller





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-35 RA

$379.00

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
