  4. Combo XR8 Plus Blushless ESC + 4274 G3 Motor (2250kV)
The Redwing RC Office will be closed 15-25 Jan. Orders can still be accepted during these times and will be processed in the order received. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you when we return.
more offers

Combo XR8 Plus Blushless ESC + 4274 G3 Motor (2250kV)

Ask a question about this product
Printable version

Share

Options

Market Price: $454.99
Our Price:

$320.99
You Save

29%
Quantity

OUT OF STOCK

Details

Availability No items available
Weight 0.50 lbs
SKU HWI38020431

Combo XR8 Plus Blushless ESC + 4274 G3 Motor (2250kV)

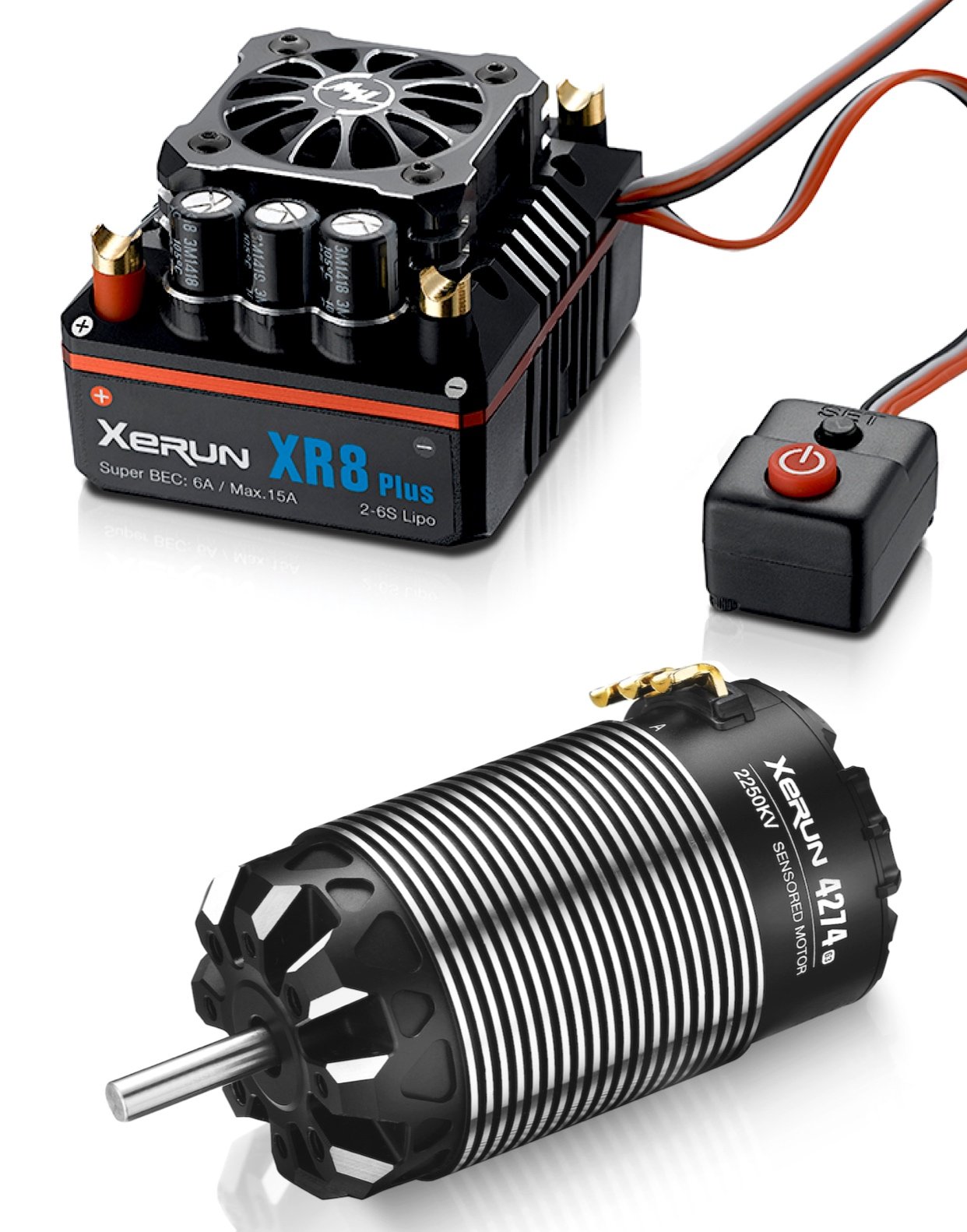

The Hobbywing Xerun XR8 Plus Brushless ESC/Motor Combo includes the awesome 4274SD G3 2250kV 1/8 Scale Sensored Brushless Motor to deliver unmatched power, performance and reliability for demanding 1/8 scale racing applications. Built with high quality components and loaded with cutting edge firmware, the XR8 Plus is responsive enough to protect itself from damage due to abuse, overuse, or even human error. With it's incredible power output and adjustable parameters, the XR8 Plus will deliver the smooth throttle response and linear throttle/brake qualities that discriminating drivers demand. Combine this incredible ESC with the Hobbywing Sensored Brushless Motor and you have an incredible combo package for 1/8 Off-Road Buggy applications.
Features:
*ESC:
Built In High Voltage BEC: The XR8 Plus is the first 1/8 ESC that includes an integrated HV BEC with 15 Amp output current, and adjustable output voltage from 6 to 7.2V. This BEC is designed to handle power hungry servos with ease.
Reliable Cooling System: Patented cooling technology utilizes proprietary heat conductive copper bars to rapidly and effectively transfer all internal heat from the MOSFET board to the integrated CNC machined billet aluminum heatsink housing. The cooling fan utilizes a shock proof mounting system that reduces the possibility of fan damage due to the repeated shock of landing jumps in an 1/8 scale off road environment.
Coasting: The XR8 Plus provides exceptionally smooth off throttle coasting function (patent pending), which simulates the feeling of inertia and momentum of a large scale car driving experience. This greatly improves the performance of builds that utilize large high powered motors, as electromagnetic drag becomes a substantial factor in sudden deceleration when in the off throttle position, adversely affecting race performance and handling.
Advanced and Secure Electronic Switch: The XR8 Plus features an electronic switch that has been rated with a lifespan of over 50,000 on/off cycles. The switch is completely waterproof, dust proof and shock resistant.
Virtually Maintenance Free: Thanks to the well thought out design, the XR8 Plus is virtually maintenance free. Advanced error sensing and thermal protection, an exceptionally rugged housing, the ultimate in heat dissipation technology and shock proof fan mounting make this ESC able to withstand anything a racer can throw at it.
High Performance Dynamic Timing Algorithm: The XR8 is the worlds first competition level 1/8 scale ESC that has dynamic timing technology. This expands the adjustable power output range of the ESC while still maintaining system efficiency and smoothness.
Included Accessories: Includes 10awg wire, and mounting hardware. Does not include programming box.
*Motor:
2250Kv recommended for 1/8 truck off road
Turbo Timing Technology
Full Sensored mode (when paired with XR8 ESC)
Adjustable Timing (Bi-Directional) 20-40 degrees
Advanced Hall Sensor System
4-pole-8-magnet "Staggered Pole" rotor - HOBBYWING Patented design
Guarantees users the effective heat dissipation and dust prevention
The use of double insulated windings (240C R-rated), NMB bearings from Japan, and the high-intensity adhesive (340C) guarantees users the outstanding performance and super durability

Specifications:

  • Applications: 1/8 Scale On Road/Off Road, Competition Level
  • Applications: 1/8 Scale On Road/Off Road, Competition Level
  • ESC Weight: 127g (no wires)
  • Motor Weight: 354g
  • Motor Size (Diameter x Length): 42x74mm

: *
: *
: *

XQ 4013 digital 6v

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

SmartDesign V3 "Trouble Free" Tail Wheel Assembly





































































































Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc






Features:



  • Extremely Reliable
  • Mechanically Efficient Design
  • Simple and Solid Construction
  • Fewer parts needed for install
  • Ball Bearings



Pricing



  • 20-40cc: $27.00
  • 50-70cc: $34.99
  • 85-120cc: $44.99
  • 150cc-220cc: $54.00





Weight





  • 20-40cc: 1.2 oz
  • 50-70cc: 1.6 oz
  • 85-120cc: 2.2 oz
  • 150cc-220cc: 2.6 oz

Don't forget to check out our Aluminum Hub Wheels! They are excellent replacements for landing gears and tail wheels. Please see sizing chart below.

Tail Wheel Chart

GW-KAGC-112

$54.99
