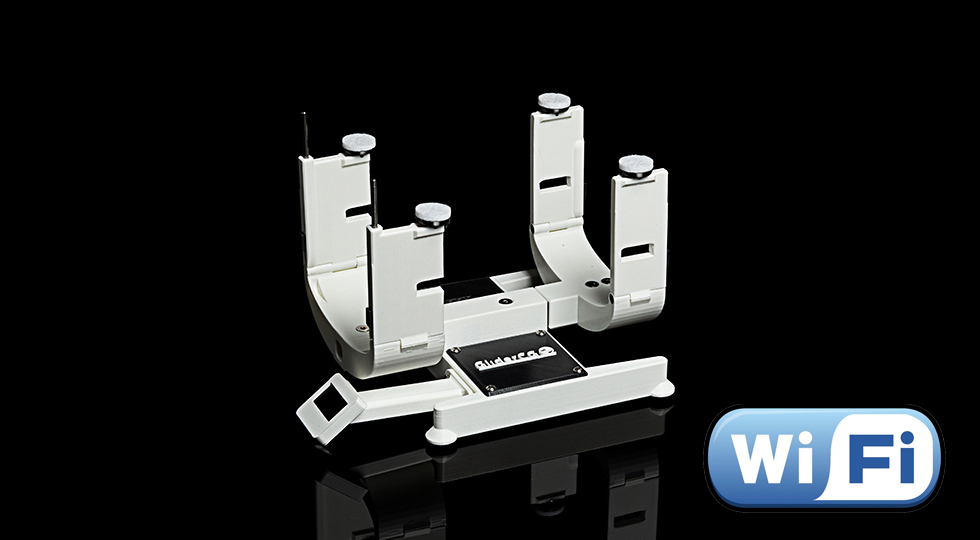

GliderCG Standard V3 (Center of Gravity (CG) digital balance device, Designed for F5J, F3B, and F3F Gliders, Works on all RC model airplanes!)

Based on the original development of Olav Kalhovd, GliderCG is a center of gravity (CG) digital balance device for RC planes able to provide the exact information of where the CG is located on the aircraft via a display which also provides information of the aircrafts's total weight.

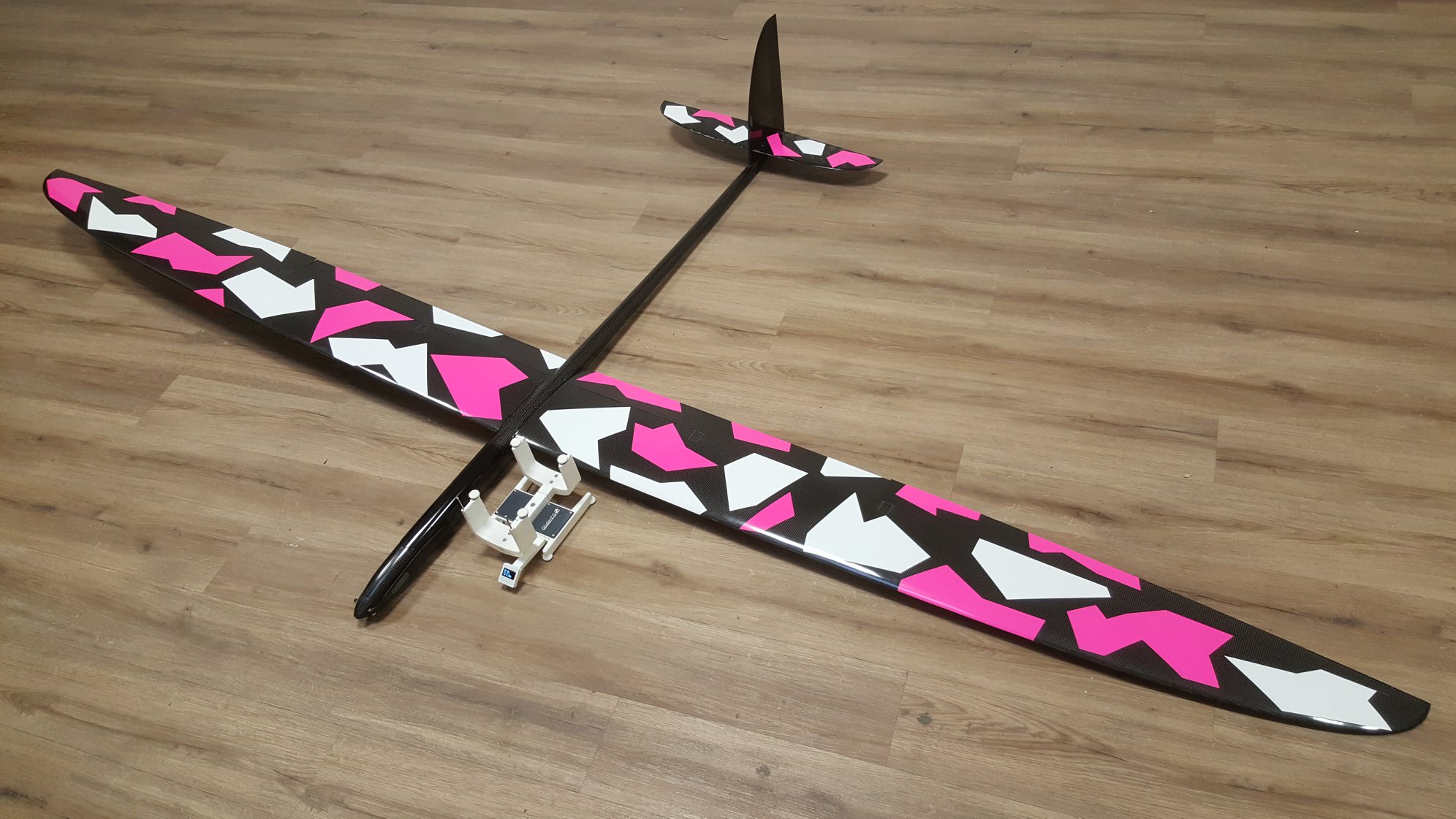

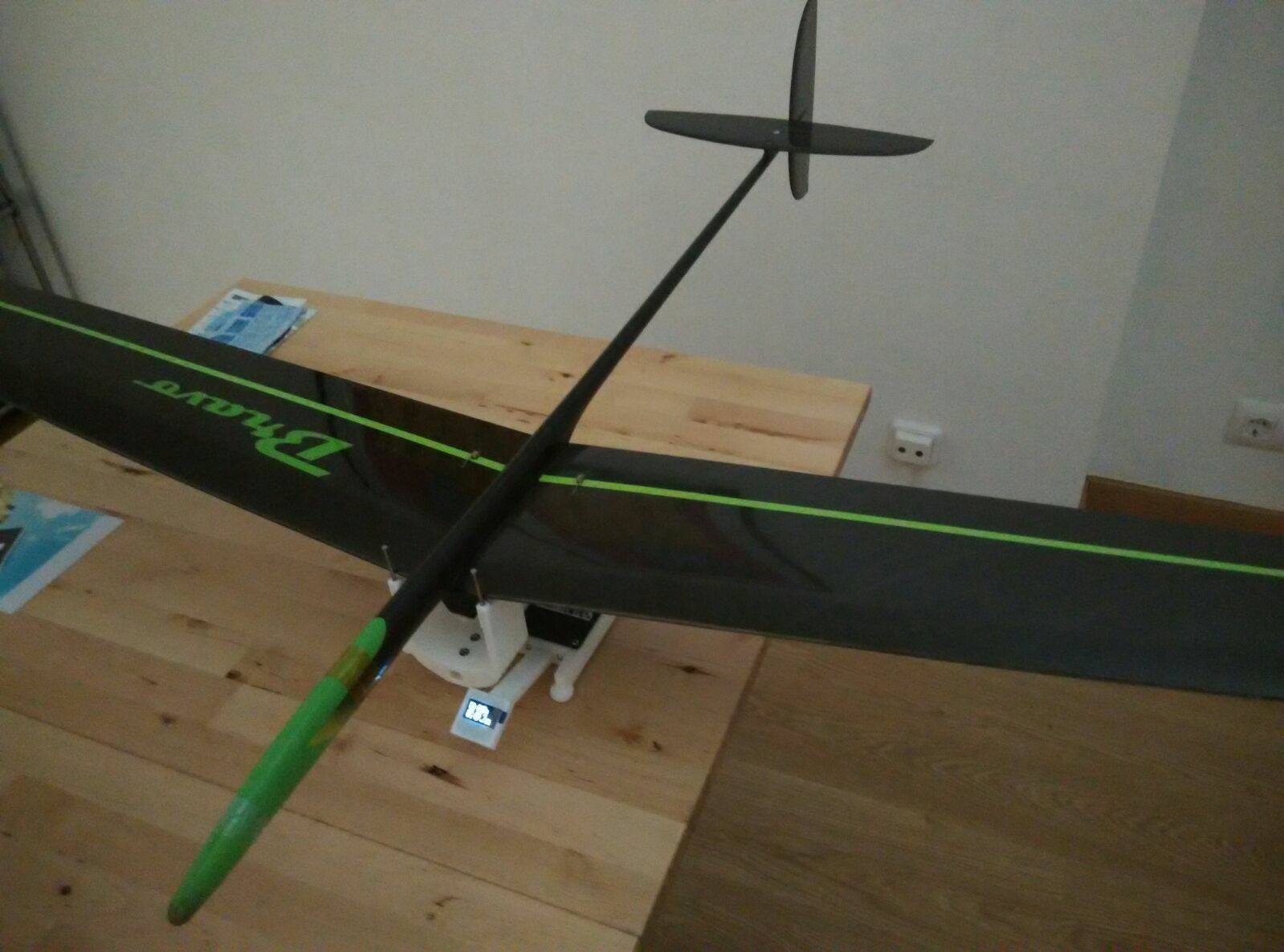

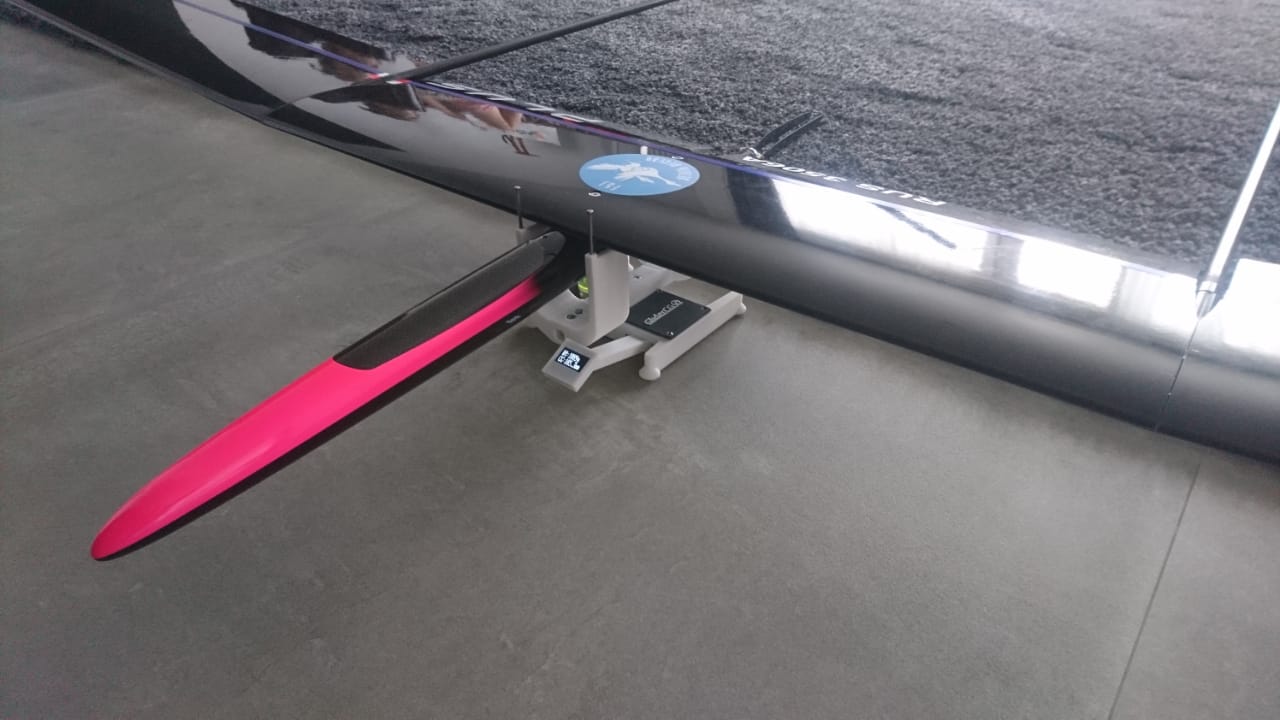

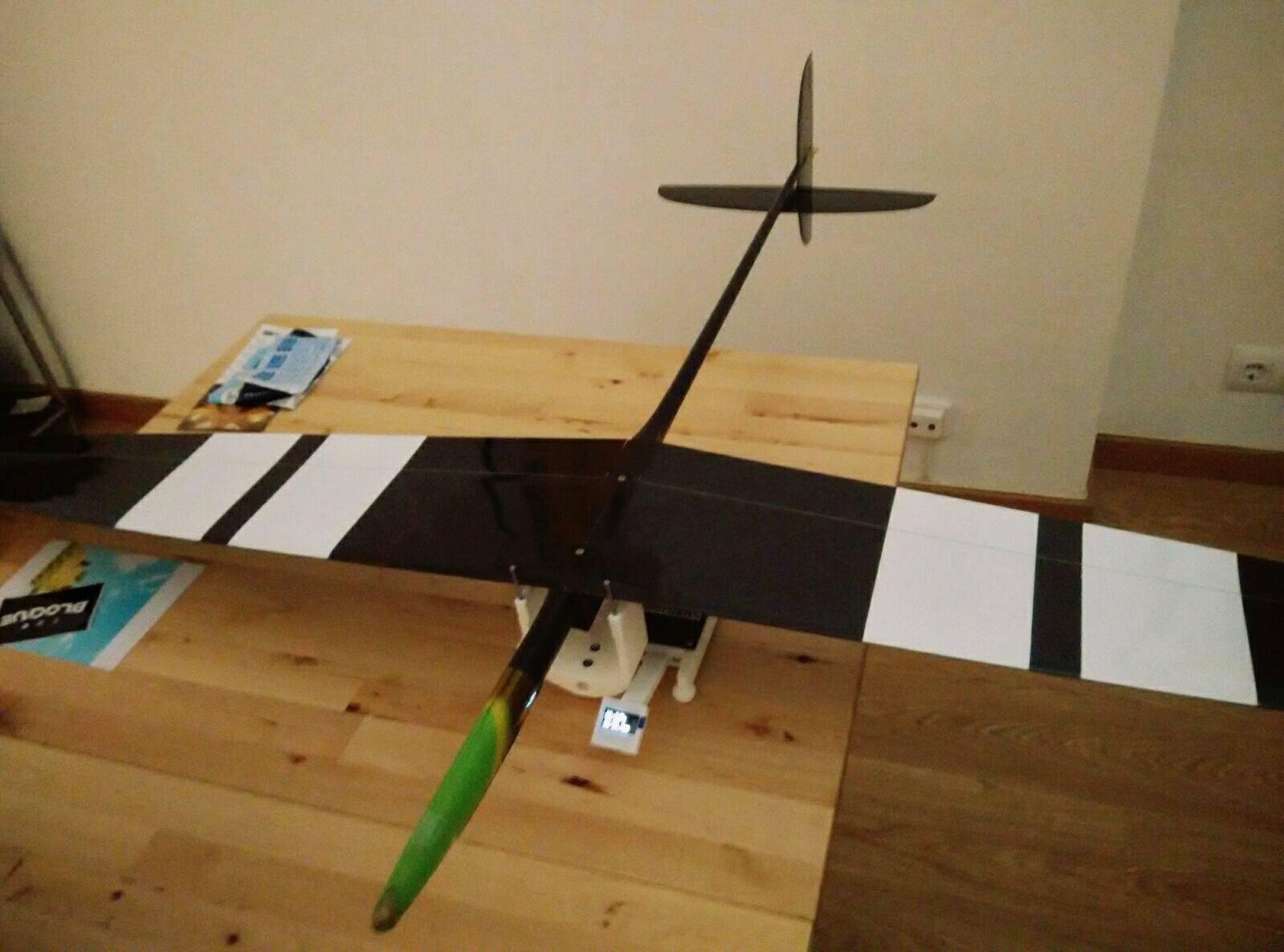

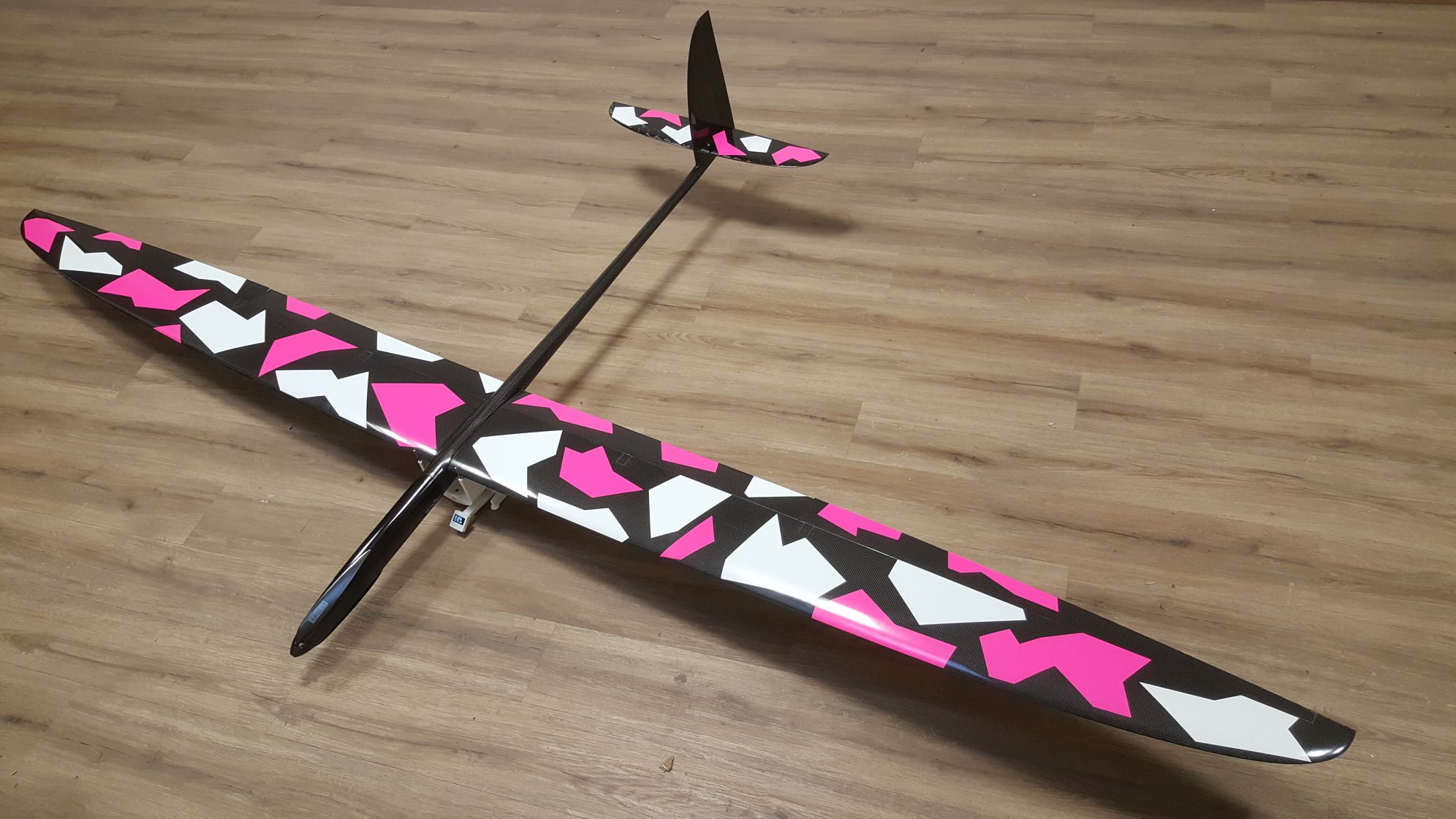

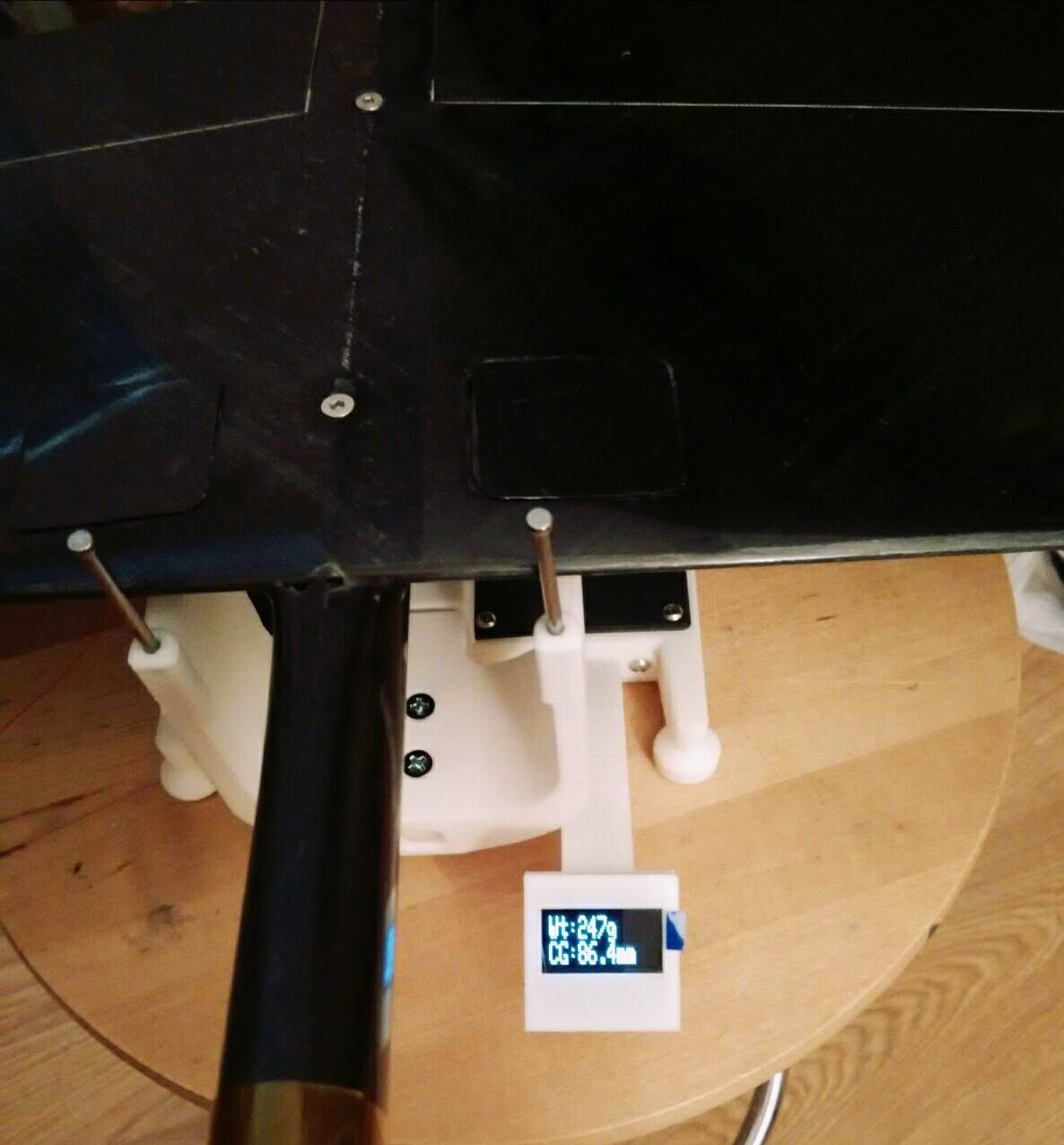

Simply place the aircraft/sailplane on the scale and obtain it's CG without trying to balance it on your fingers or mark the wings to supporting them on precarious structures.

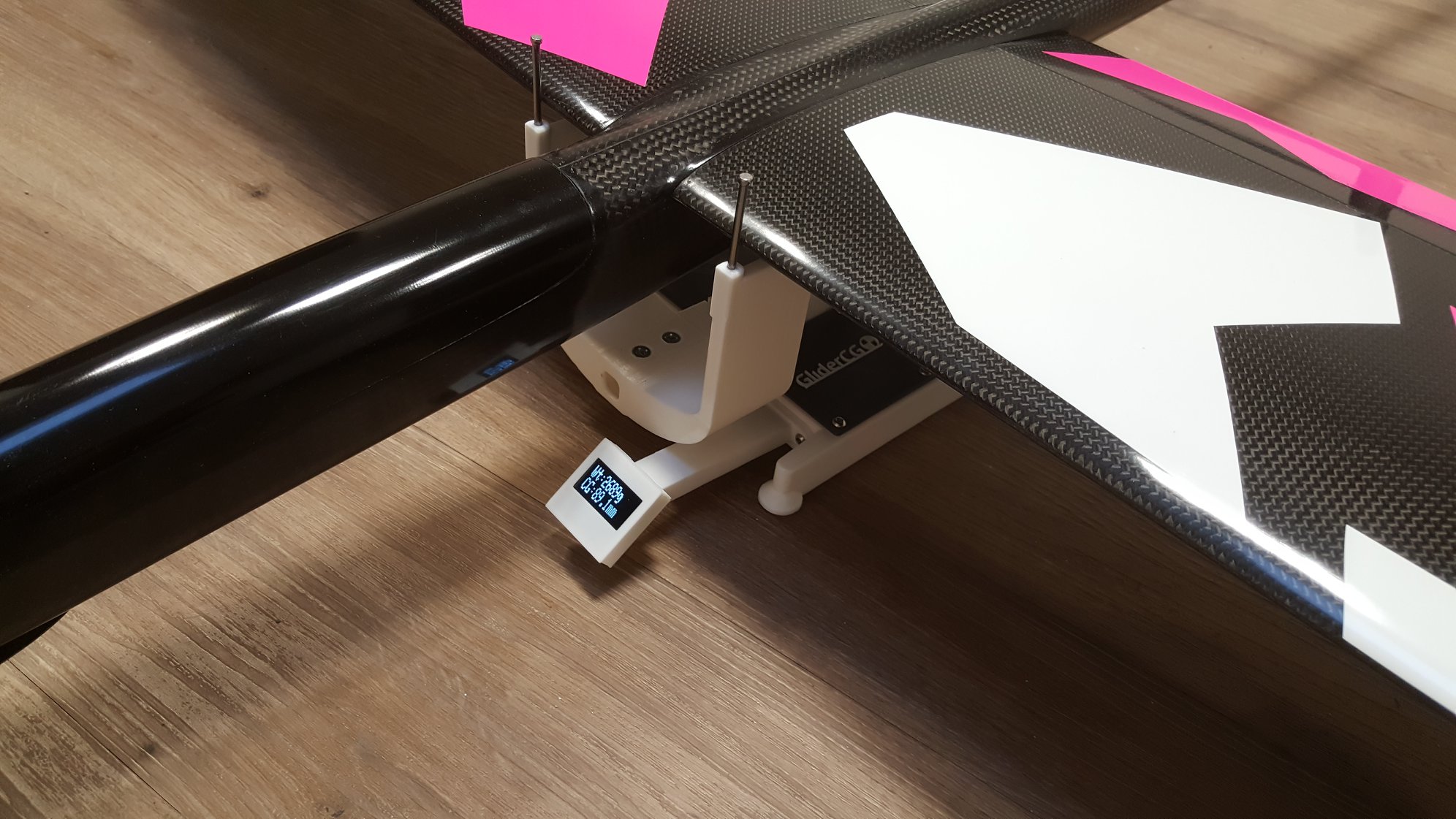

Once the aircraft/sailplane is placed on the scale, you can vary the CG by moving e.g. the battery and GliderCG will automatically inform you of the new CG in real-time.  Easy and simple!

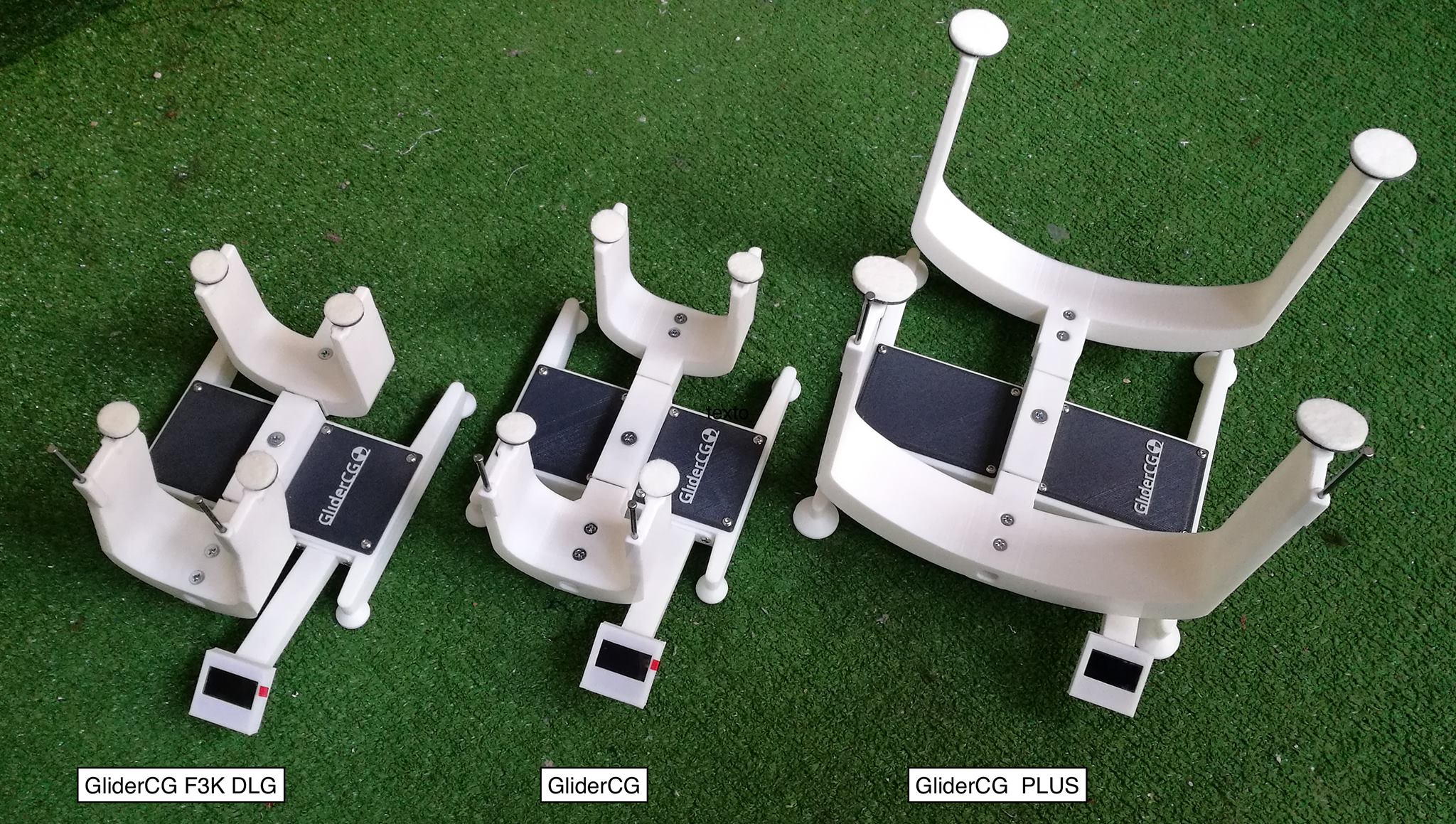

The GliderCG family was born with the aim of being able to transfer the concept of digital measurement of the CG to the different types of aircraft and radio control gliders. For this reason there is a specific device for each of the different popular disciplines: GliderCG F3K/DLG, GliderCG Standard, GliderCG Plus and GliderCG Scale. There is a device that will work on all RC aircraft.

GliderCG is constantly being improved and has evolved over time to provide more features and enhancements. Today's GliderCG devices are much more modern and advanced than the initial ones produced in 2018.

Based in the GliderCG v2 platform and with the constant desire for improvement, development on all aspects of the device, both hardware and software, to offer an improved device in a compact form factor for easy transport and storage when not in use.

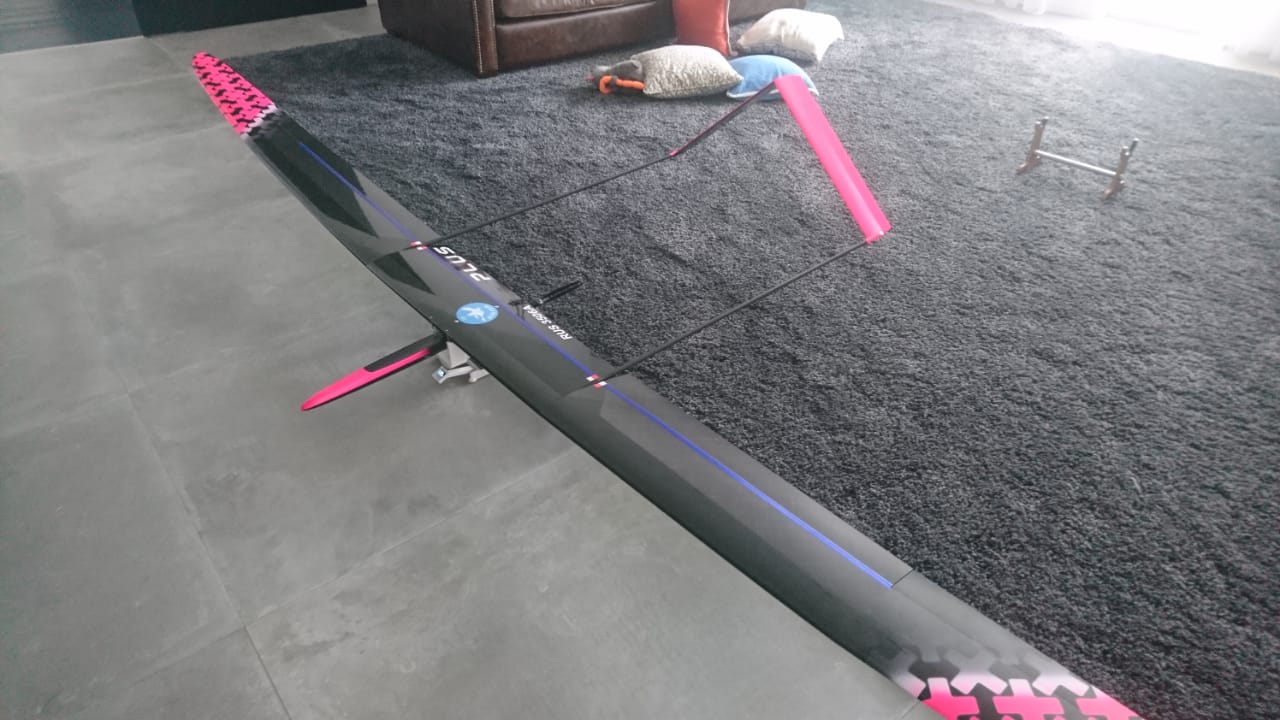

This model is designed for F5J, F3B, and F3F models however will work on all RC model airplanes meeting the weight and dimension limits below listed in specifications.

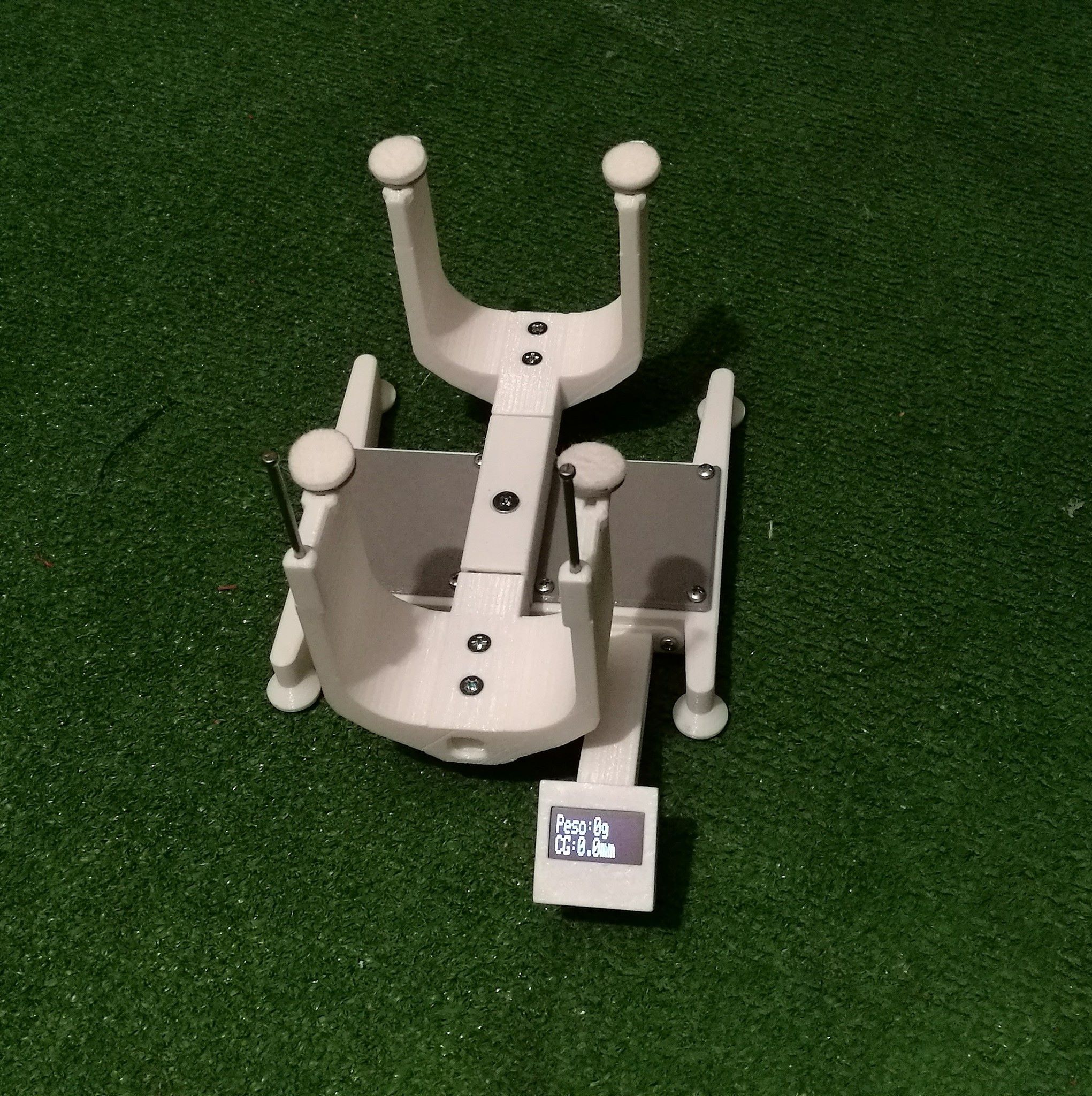

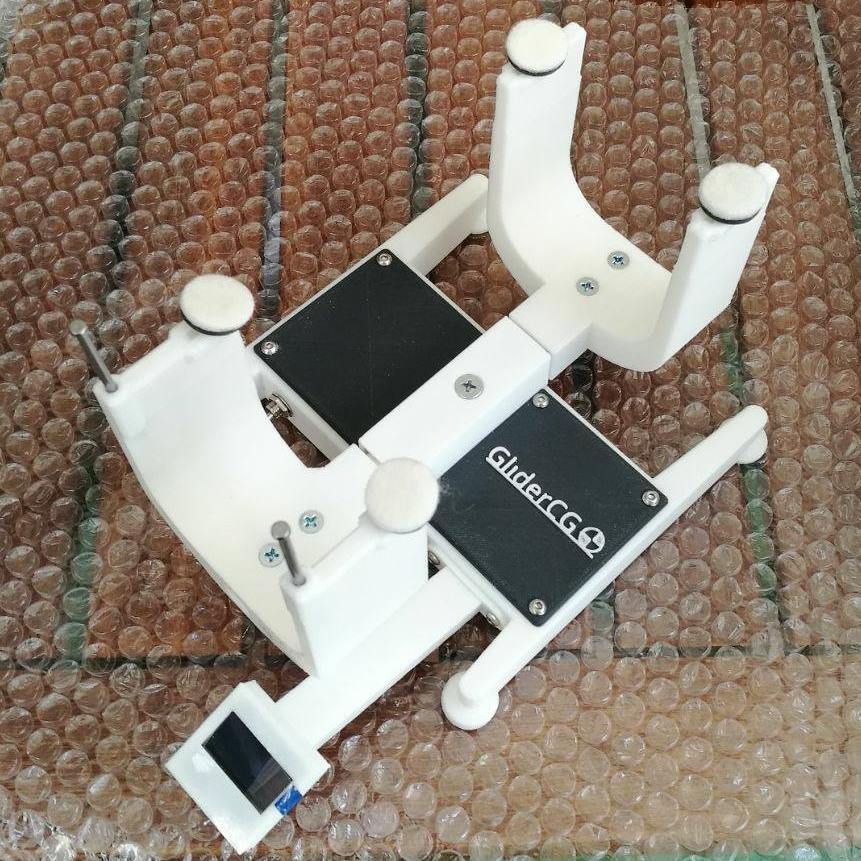

FEATURES

• Folding arms with solid locking mechanism
• Battery level indicator (WiFi Interface)
• Sliding lid access to the battery compartment
• Greater stability
• WiFi + OLED LCD display

Additionally, this unit provides the ability to view data through the WiFi connection. The WiFi connection also provides the option to save the CG configuration of different models to review historical readings and the ability to compare readings after e.g. repairs, etc.

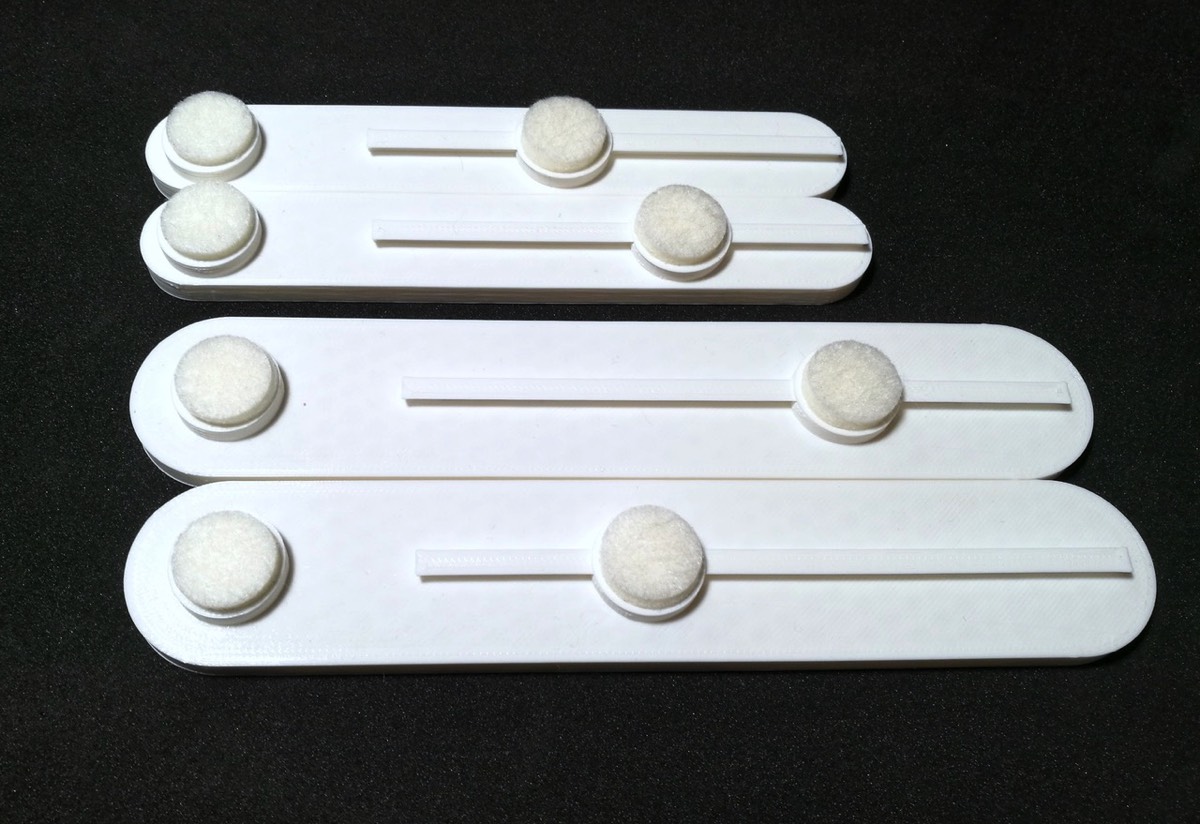

GliderCG Standard v3 includes a set of smaller wing adapters to allow the measurement of planes with a narrow wing chord (i.e. DLG/F3K models).

SPECIFICATIONS

• Maximum weight: 17.6 lbs / 8 kg
• Maximum fuselage width: 3.4 in
• Maximum fuselage height (from bottom fuselage to wing bottom): 3.4 in / 86 mm
• Leading edge to rear support pad distance: 5.9 in / 150 mm
• Power: 9V DC (6LR61)

DOCUMENTATION

• GliderCG Standard v3 Manual (PDF)
