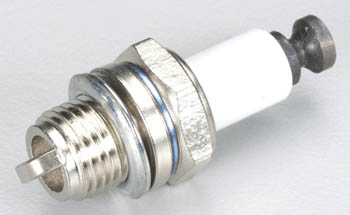

Spark Plug - DLE

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

• Stock Number: DLEG0020
• Displacement: 20 cc (1.22 cu in)
• Bore: 1.3 in (32 mm)
• Stroke: 1.0 in (25 mm)
• Weight: 28.9 oz (820 g)
• RPM Range: 1,750-9,000
• Output: 2.5 hp @ 9,000 rpm
• Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
• Suggested Propellers: 16x8 17x6
• Suggested Break-in Prop: 16x8
• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
• Compression Ratio: 10.5:1
• Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
• Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
• Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
• Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
More power! DLE takes 50cc performance to a new level with the rear exhaust DLE-55RA. Everything about this engine screams performance, from the piston skirt - designed to be lightweight for quick throttle response and tons of power - to the rear exhaust that lets you easily install a tuned pipe in your aircraft. The 55RA provides 100 more rpm than the standard DLE-55. It includes engines standoffs, electronic ignition, spark plug and Pitts style muffler.


To pick out your RedwingRC Props Click here.


Download DLE 55RA Mounting Template
Download DLE 55RA Manual Coming Soon



Specifications:

• Displacement: 55.6 cc (3.392 cu in)
• Bore: 1.77 in (45 mm)
• Stroke: 1.38 X in (35 mm)
• Weight: 3.6 lb (1.65 g)
• Output: 5.5 hp @ 8,500 rpm
• Requires: unleaded gasoline, oil, ignition battery & propeller
• Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
• Suggested Propellers: 23x8, 24x8
• Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
• Compression Ratio: 7.6:1
• Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
• Replacement Spark Plug: NGK CM6 (DLEG55RA10) or equivalent
• Weights (Individual): Engine: 47 oz (1,350 g); Exhaust: 3.1 oz (100 g); Ignition: 5.1oz (120 g)
• Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:

• Two crankshaft bearings-simple design for lighter weight
• Aluminum alloy crankcase
• Four petal V-type reed valve bottom induction system
• Walbro carburetor
• Fully automatic electronic ignition
• Two year limited warranty
• INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

Miracle 3 Way T Joint with Fuel Filter

Miracle long fuel filling nozzle with fuel filter.
Available in Red, Gold, and Blue.
Please make a note of your color choice.
