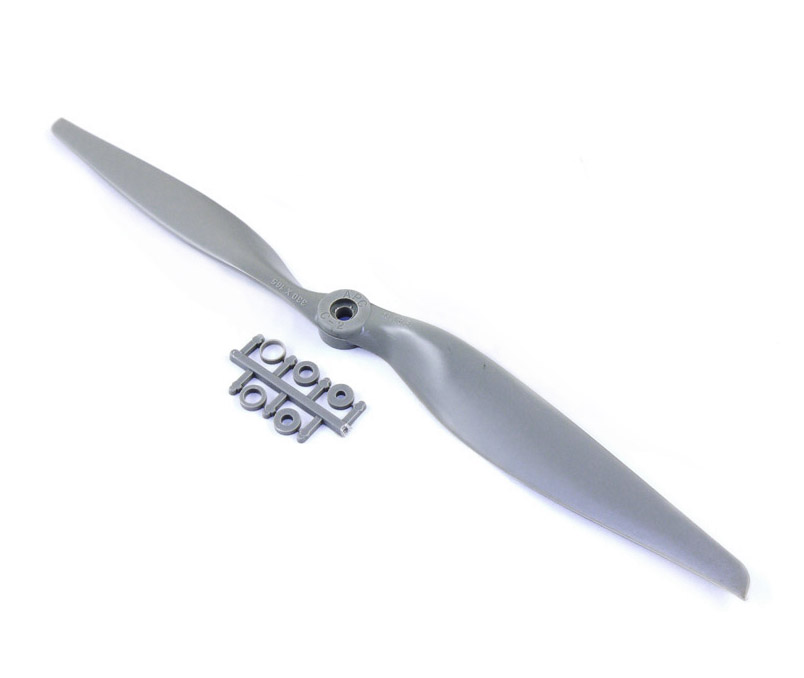

APC 24 x 12 Electric Prop

The Redwing RC Office will be closed 15-25 Jan. Orders can still be accepted during these times and will be processed in the order received. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you when we return.

more offers

APC 24 x 12 Electric Prop

Ask a question about this product

Printable version

Options

Our Price:

$28.99

Quantity

OUT OF STOCK

Notify me when back in stock

Details


Availability	No items available
Weight	1.10 lbs
SKU	APCE-24X12

Features

Going from a gas engine plane to all electric and need a durable, quality prop to make the switch? This new prop is a thin, lightweight 24 x 12 composite APC prop for electric engines. The locating ring combines with the hub to create a precision fit - making this a great and easy-to-use prop when going electric with your plane!

Specifications

Center hole diameter: 1/4"
Propeller diameter: 24"
Propeller pitch: 12

EPP Carbon Fiber Landing Gears

Untitled Document

Carbon Fiber Landing Gears for EPP Planes

Upgrade your EPP Future Model plane with a Carbon Fiber Landing Gear. Add strength and style!

Available in two styles to fit the Future Model MX2, Yak55, Sbach, and Katana

Dimensions (match the below information to the inset photo)

Dims

MX2 Style

A=85mm
B=135mm
C=20mm taper to 10mm
D=20mm
E=250mm

Yak Style

A=65mm
B=140mm
C=20mm taper to 10mm
D=20mm
E=255mm

The Yak style gear will work for the Future Model Sbach and the MX2 style gear will work for the Katana.

CF-LG-EPP-

$24.99 24.99

G3.0 Engine, Slide Carb w/Pull Start

Description:
High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight - resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.

Download DLE 35RA Mounting Template
Download DLE 35RA Manual Coming Soon

Specifications:

Displacement: 34.9 cc (2.13 cu in)
Bore: 1.5 in (38.5 mm)
Stroke: 1.17 in (35RA mm)
Weight: 2.6 lb (42oz)
RPM Range: 1,600-8,500
Output: 4.1 hp @ 8,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
Suggested Propellers: 18x6, 18x8, 19x6, 19x8, 20x8, 20x6
Suggested Break-in Prop: 18x6
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.6 oz (60 g); Ignition: 5.2 oz (120g)
Recommended Propeller: Redwing RC 3d Props - type 19x6 19x8 20x6 20x8 Propeller
