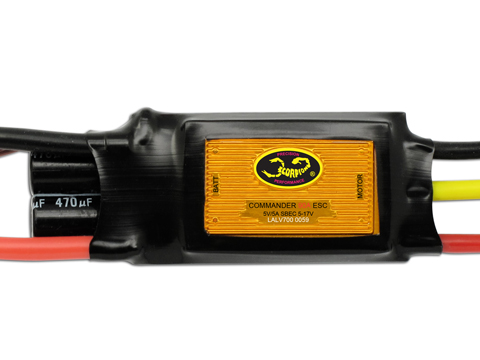

SCORPION COMMANDER 15V 90A ESC SBEC (V3)

Ask a question about this product

Printable version

Options

Our Price:

$109.99

Quantity (5)

Details


Availability	5 in stock
Weight	1.50 lbs
SKU	ESC-0010
Manufacturer	Scorpion

The Commander 4S SBEC series ESC(V3) operates from 6 to 17V. It features switching BEC will convert the voltage from your battery packs to 5V to power your receiver and servos. The Commander SBEC will deliver 3 Amps of continuous current with 5 Amps bursts. And can handle up to 4 digital servos or 5 standard servos on fix wing models. With a Switching type BEC, the BEC is not needed to de-rate as the input voltage increases. The full 3 Amps of BEC current is available for input between 2-cell to 4-cell Lipo operation.

The full-featured IR Programming Card allows the user to set the following parameters:

Low Voltage Cut-off (5V to 13.5V at 0.5V increments) no need to select battery type just set the voltage the ESC should work on, by doing this, the ESC will be compatible with any future type of battery designs.

LVC= LOW VOLTAGE CUT: 050 (5V) TO 138(13.8V)

BRK= BRAKE SETTING: 1: NO BRAKE, * 2: VERY SOFT BRAKE, 3: SOFT BRAKE, 4: HARD BRAKE, 5: VERY HARD BRAKE

AIR= ACTIVATE AIRPLANE MODE*

PCT= PROGRAM CUT TYPE (LVC TYPE): 1: CUT 50%*, 2: NO CUT JUST LED WARNING, 3: PULSE WARNING

MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15* Seconds, 2: 0.3 Seconds, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds

CAR/B= DISABLED

COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)

MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15 Seconds, 2: 0.3 Seconds*, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds

CAR/B= DISABLED

COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)

FREQ= DRIVE FREQUENCY: 1: 8 kHz *

SB= MOTOR STARTING BOOSTER 1: SOFT, 2: MEDIUM, 3: STRONG

SOFT START DURATION: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3: STRONG 20 Seconds

GOV (P Gain) = POWER GAIN: 1 to 11 (SOFT to HARD), DEFAULT: 5*

SB (I Gain) = CURRENT GAIN: 1 to 8 (INSENSITIVE to SENSITIVE), DEFAULT: 5*

SOFT START DURATIO: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3:STRONG 20 Seconds

*Factory Default

Specifications

Weight (Without Connectors)	76 g (2.68 oz)
Max Continuous Current	90 Amps
Operating Voltage Range	5 to 17 Volts
Max BEC Output	5 Amps @ 5 V
On Resistance	1.17 mOhms
Size	80 x 30 x 12 mm (3.15 x 1.18 x 0.47 in)

Included in the Box

1 x Scorpion Commander 15V 90A ESC
1 x Scorpion IR Transmitter (Programming Card)
1 x Scorpion IR Receiver
1 x Instruction Manual

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$279.99 279.99

DLE 35RA Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight - resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.

Download DLE 35RA Mounting Template
Download DLE 35RA Manual Coming Soon

Specifications:

Displacement: 34.9 cc (2.13 cu in)
Bore: 1.5 in (38.5 mm)
Stroke: 1.17 in (35RA mm)
Weight: 2.6 lb (42oz)
RPM Range: 1,600-8,500
Output: 4.1 hp @ 8,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
Suggested Propellers: 18x6, 18x8, 19x6, 19x8, 20x8, 20x6
Suggested Break-in Prop: 18x6
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.6 oz (60 g); Ignition: 5.2 oz (120g)
Recommended Propeller: Redwing RC 3d Props - type 19x6 19x8 20x6 20x8 Propeller

DLE-35 RA

$379.00 379.00

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
