Power HD 1800A Micro Servo

Contact UsCustomer Reviews
  0
  4. Power HD 1800A Micro Servo
more offers

Power HD 1800A Micro Servo

Power HD 1800A
Power HD 1800A
Power HD 1800A
Power HD 1800A
Power HD 1800A
Ask a question about this product
Printable version

Share

Options

Market Price: $9.99
Our Price:

$5.99
You Save

40%
Quantity (50)

Details

Availability 50 in stock
Weight 0.10 lbs
SKU HD-1800A
Manufacturer Power HD

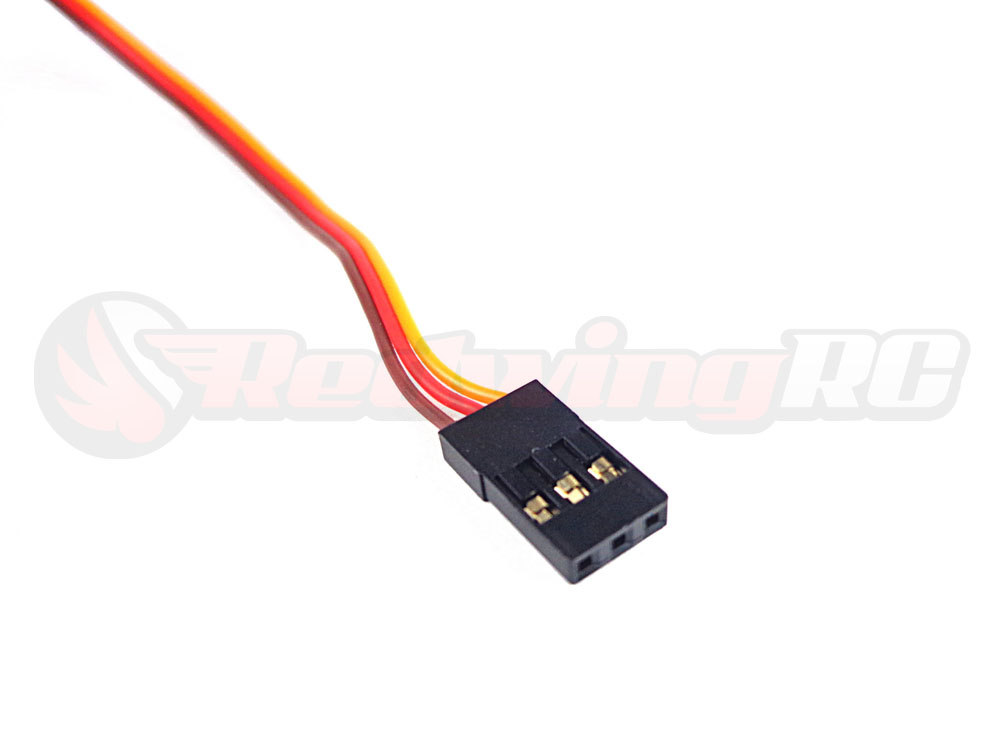

The HD-1800A is a great servo for tiny applications like foam planes. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible. Mounting screws and an assortment of servo horns is included with this servo. You can find more information about this servo in this

Click to Download HD-1800A Data Sheet


Specifications:

  • Torque:
    • 13.8 oz/in at 4.8v (1.0 kg/cm)
    • 18 oz/in at 6v (1.3 kg/cm)

  • Speed:
    • .11 sec at 4.8V
    • .08 sec at 6V

  • Voltage: 4.8v to 6v
  • Weight: .28oz (8g)
  • Size: .82 x .46 x 1.04 in (20.8 x 11.6 x 26.5 mm)

  • Analog
  • Free-run current at 6V: 140mA
  • Stall current at 6v: 460 mA
  • Lead Length: 6 in
  • Hardware included
  • Suitable for F3P/EPP/KT Airplanes
