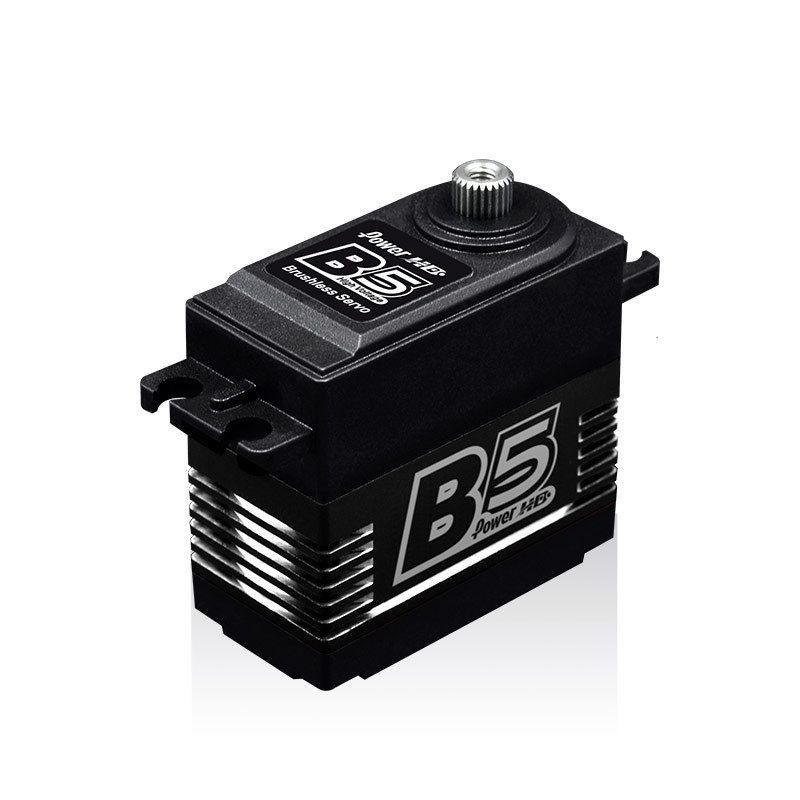

Power HD B5 Brushless Servo - 20.0 kg/cm (277.75 oz/in), 0.066 sec - High Voltage

Check out the new Power HD B5 Brushless HV servos!

The Power HD B5 high voltage servos are made with brushless technology. Brushless servo motors consistently provide more torque and power per gram of motor weight, while simultaneously being more efficient than either their brushed or coreless counterparts. Brushless servo motors are extremely tough and precise. They excel at relentless, cyclic, full speed direction reversals, handling them with ease. A very desirable characteristic for a servo motor.

The B5's brushless motor spins titanium and steel gears that are supported by bronze bushings and dual ball bearings on the output shaft. The main body of the servo is machined from aluminum and houses the motor, potentiometer and PWM / ESC board.

These servos are high efficiency and perform better. They run cooler and quieter and with less vibration - because there are no brush arcings, the radio frequency interference and electronic noise is significantly reduced.

All aluminum housing, high voltage and the new brushless technology gives you the best strength and speed while being incredibly efficient and long lasting.

So now the only question is - why are you still reading this? Go buy your Power HD B2HV servos before they're gone!



Specs:

  • Torque:
    • 222.2 oz/in at 6V (16.0 kg/cm)
    • 277.75 oz/in at 7.4V (20.0 kg/cm)

  • Speed:
    • ..085 sec at 6V
    • ..066 sec at 7.4V

  • Voltage: 6.0 ~ 8.4 DC Volts
  • Weight: 2.12 oz (60g)
  • Size: 40.7 x 20.5 x 38.5 mm ( 1.6 x 0.80 x 1.51 in)
  • Operating Temp- -20℃~60℃
  • Working Frequency - 1520μs / 333hz
  • Brushless Motor
  • Dual Ball Bearings
  • Titanium & Steel Gears
: *
: *
: *
