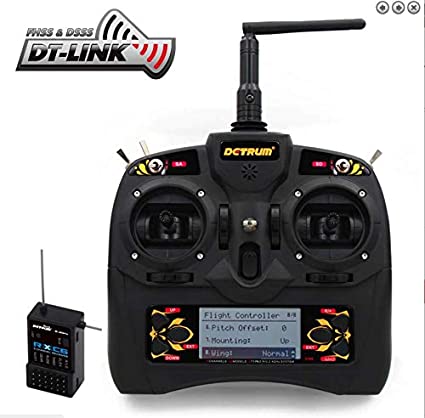

Detrum GAVIN-6C 6CH digital transmitter set (TX+RXC6)

GAVIN-6C is a 2.4GHz 6-channel transmitter applicable for airplane, helicopter and multi-copter. Using low power devices leads to longer battery life. Support four stick modes to meet different operating habits. Support Trainer and Fail Safe functions which provide security for users. GAVIN-6C could provide the USB upgrade function and be used to set the programmable item of the flight controller for airplane.

Using the DSSS&FHSS dual spread spectrum technology,  will enhance the transmitter by increasing the anti-interference performance and transmission distance, even can controlled normally in city center, do not worry about the strong interference from high voltage lines, signal towers, city WiFi, etc.

RXC6 Mini Receiver is a 2.4GHz 6-channel normal receiver with mini size. By using diversity antenna, can automatically switch the signals to ensure the stability of the received signal. The RXC6 will set the output according to transmitter’s Fail Safe function when receiver cannot receive signal.

What is included:

GAVIN-6C transmitter, Detrum RXC6 (receiver upgrades available see drop down list above)

Specifications:

• GAVIN-6C transmitter
• Channel: 6-channel
• Transmitting frequency: 2.4GHz
• Spread spectrum: DSSS&FHSS
• Power supply: AA batteries 4*1.5V, Ni-MH batteries 4*1.2V, 2S Li-Po
• Consuming current: less than or equal to 120mA (test mode); less than or equal to 230mA (Operating mode).
• Output power: 10mW (test mode); 100mW (Operating mode).
• Output pulse: 1000ms~2000ms (neutral 1500ms)

RXC6 Receiver:

• Dimension: 20*33*12.5mm
• Weight: 6.9g
• Frequency: 2.4GHz
• Communication distance: >1.1km
• Power Supply: 3.6V~16V
• Output Signal: PWM
