GliderCG Scale Standard- Center of Gravity (CG) digital balance device, Designed for Large Models up to 88 lbs (40 kg)

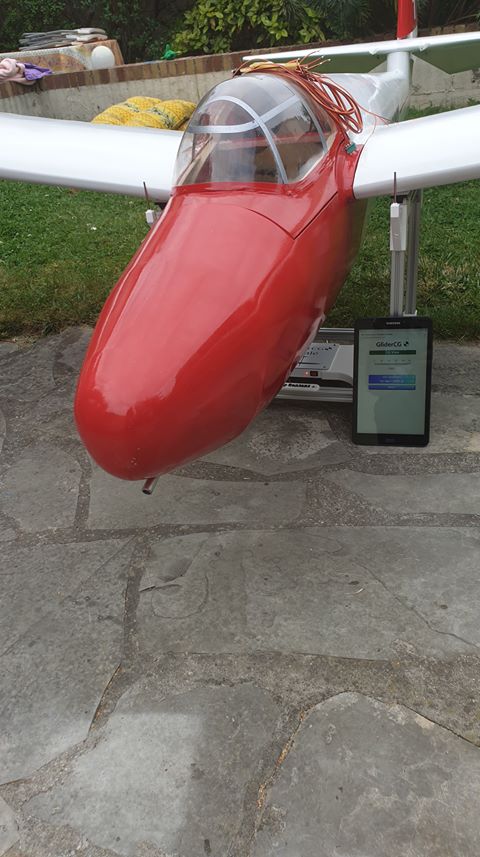

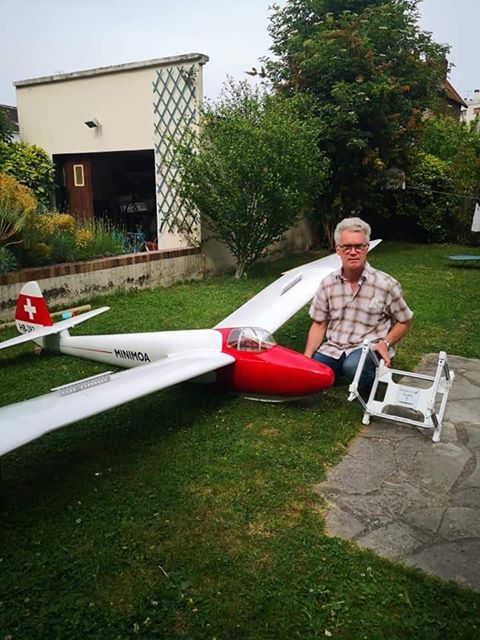

GliderCG Scale is our largest CoG balancer for models ranging from 7oz to 88lbs with wingspans up to 26'. The GliderCG Scale is suited for much larger planes that the smaller GliderCG products are unable to measure - models weighing up to 88lbs with giant wingspans. Designed for stability the scale uses larger and stronger supports with a robust base and frame to accomadate the Giant Scale Models. Additionally, the scale is versatile and is able to measure much smaller models at 17oz or less. GliderCG Scale features a sensor in each of the four legs, thus providing very accurate results for CG and lateral measurements. By using four sensors, we eliminate the torsional stress of the planes to obtain stable values while the plane is placed on the GliderCG Scale. Additionally, the GliderCG Scale can calculate the CG of the model in the lateral axis, providing additional information for balancing purposes.

Stacks Image 54

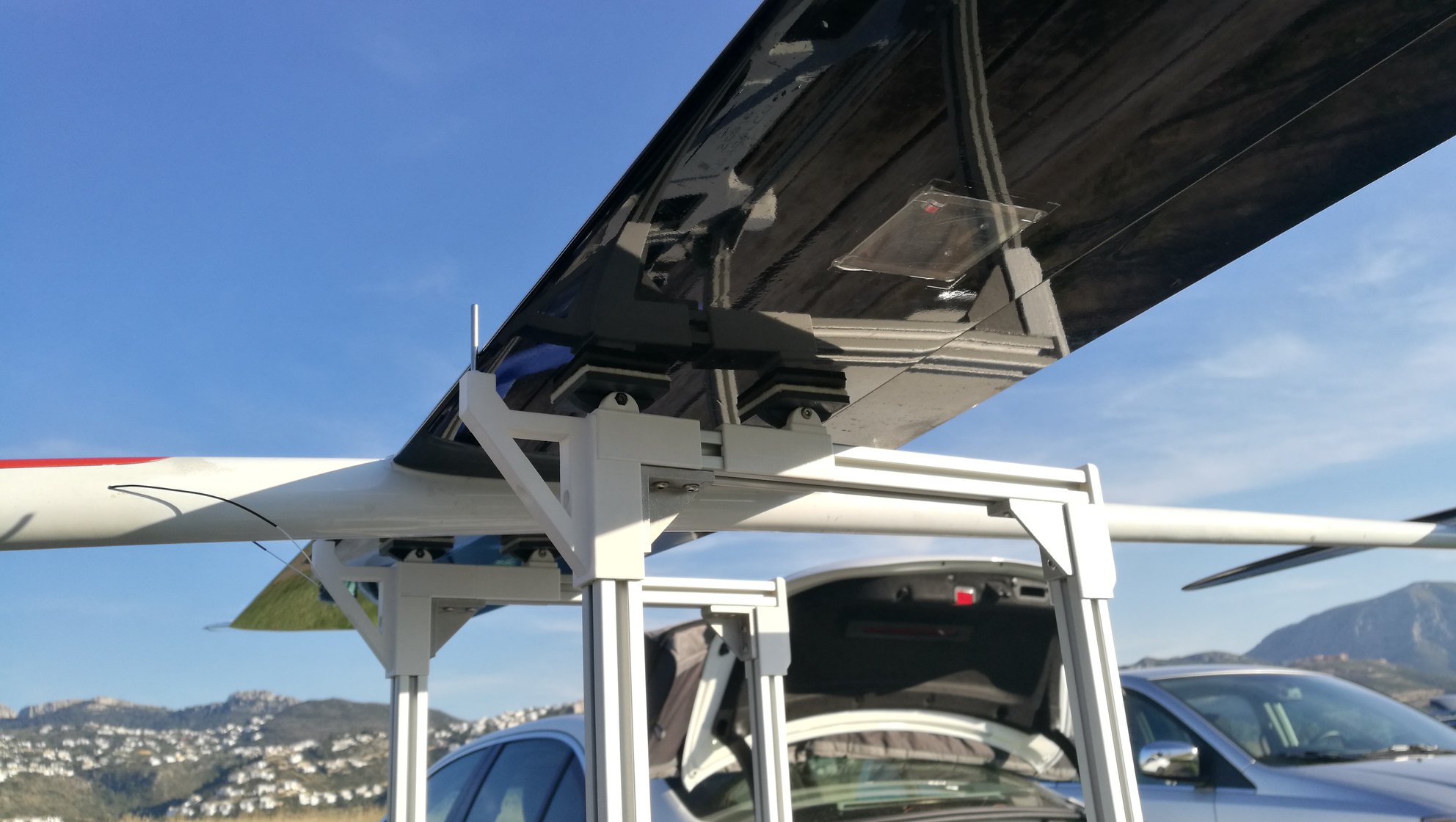

With a solid and sturdy, yet lightweight aluminum structure, the GliderCG Scale is built to fit almost any model.

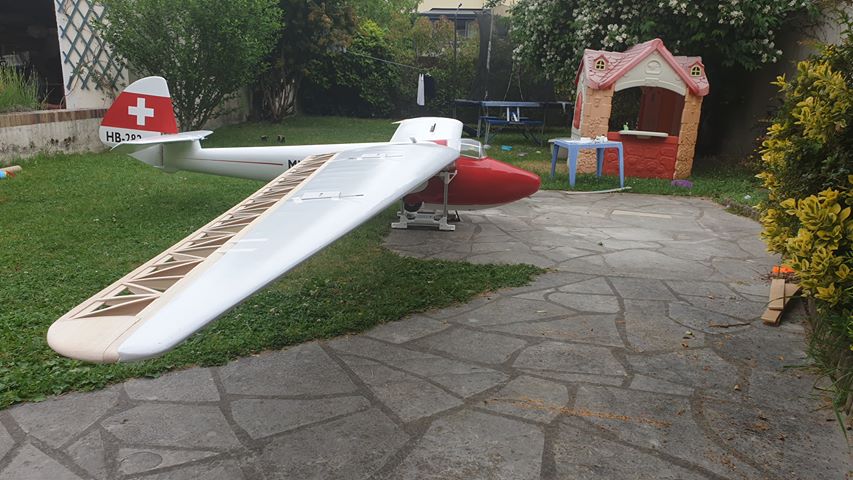

A fixed width of 14.2 in / 360 mm ensures that GliderCG Scale allows you to move the rear support points to fit virtually any wing size from small models, F5J, F3F etc to large models like GPS or giant scale birds.

GliderCG Scale

Like the proven GliderCG Throw Meter system, the data can be viewed through any web browser on a smartphone, Android or iOS, PC or MAC.

In addition to checking the weight and CoG, pilots can check the weight of each side of the model and store the current configuration of the CoG for several models for future reference.

SPECIFICATIONS

  • Dimensions: 15.75"h x 14.5"w x 16.1"d
  • Weight: ~4 lbs / 2 kg
  • Maximum weight: 88 lbs / 40 kg
  • Maximum fuselage width: 14.2 in / 360 mm
  • Maximum fuselage height (from bottom fuselage to wing bottom): 13.75 in / 350 mm
  • Leading edge to rear support pad distance: 11.4 in / 290 mm
  • Power: 800mAh rechargeable Lithium battery (~2 hours of continuous operation)
  • Charging port: Micro USB
  • Charging time: ~1 hour

DOCUMENTATION

$20 Flat Rate Shipping for USA only. Contact us at [email protected] to calculate international shipping cost.






















: *
: *
: *

XQ 4013 digital 6v

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

  • Torque:
    • 166.7 oz/in at 4.8V (12.0 kg/cm)
    • 197.2 oz/in at 6V (12.8 kg/cm)

  • Speed:
    • .13 sec at 4.8V
    • .11 sec at 6V

  • Voltage: 4.8V - 6V
  • Weight: 2 oz (59g)
  • Size: 40x20x39mm

  • Gear Style: Futaba Arms
  • Modulation: Coreless Digital
  • Gear Type: Titanium
  • Weight: 2oz (59g)
  • Size: 40x20x39mm




Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

  • Titanium Gears
  • Waterproof
  • Coreless
  • Digital
  • High Torque/High Speed
  • Smooth resolution


Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!



X-4013

$42.50

DLE 20cc Engine

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.



Download DLE 20 Manual



Specifications:

  • Stock Number: DLEG0020
  • Displacement: 20 cc (1.22 cu in)
  • Bore: 1.3 in (32 mm)
  • Stroke: 1.0 in (25 mm)
  • Weight: 28.9 oz (820 g)
  • RPM Range: 1,750-9,000
  • Output: 2.5 hp @ 9,000 rpm
  • Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
  • Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
  • Suggested Propellers: 16x8 17x6
  • Suggested Break-in Prop: 16x8
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 10.5:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
  • Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-20

$279.99

DLE 35RA Engine

DLE 35RA Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty





Description:
High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight - resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.


Download DLE 35RA Mounting Template
Download DLE 35RA Manual Coming Soon


Specifications:

  • Displacement: 34.9 cc (2.13 cu in)
  • Bore: 1.5 in (38.5 mm)
  • Stroke: 1.17 in (35RA mm)
  • Weight: 2.6 lb (42oz)
  • RPM Range: 1,600-8,500
  • Output: 4.1 hp @ 8,500 rpm
  • Requires: unleaded gasoline, oil, ignition battery & propeller
  • Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
  • Suggested Propellers: 18x6, 18x8, 19x6, 19x8, 20x8, 20x6
  • Suggested Break-in Prop: 18x6
  • Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
  • Compression Ratio: 7.6:1
  • Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.6 oz (60 g); Ignition: 5.2 oz (120g)
  • Recommended Propeller: Redwing RC 3d Props - type 19x6 19x8 20x6 20x8 Propeller





RedwingRC Pre-Run
DLE 35ra DLE55






DLE-35 RA

$379.00
