GliderCG Scale Mini Version (Center of Gravity (CG) digital balance device, Compact Design for Large Models up to 55lbs (25 kg) with/without landing gear)

Contact UsCustomer Reviews

GliderCG Scale Mini Version (Center of Gravity (CG) digital balance device, Compact Design for Large Models up to 55lbs (25 kg) with/without landing gear)

Our Price:

$479.00

Quantity (3)

Availability 3 in stock
Weight 5.00 lbs
SKU CG-scale-mini
Manufacturer GliderCG

GliderCG Scale Mini Version (Center of Gravity (CG) digital balance device, Compact Design for Large Models up to 55lbs (25 kg) with/without landing gear)

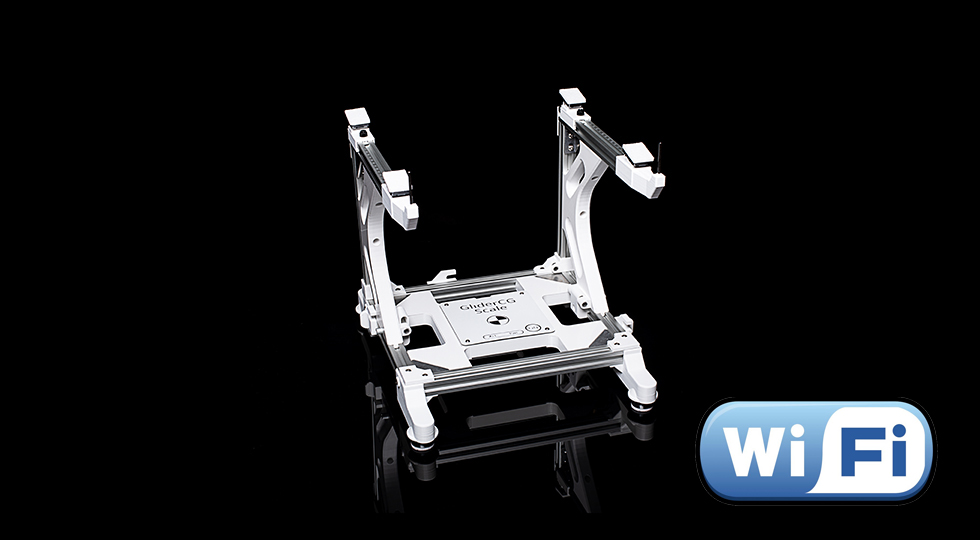

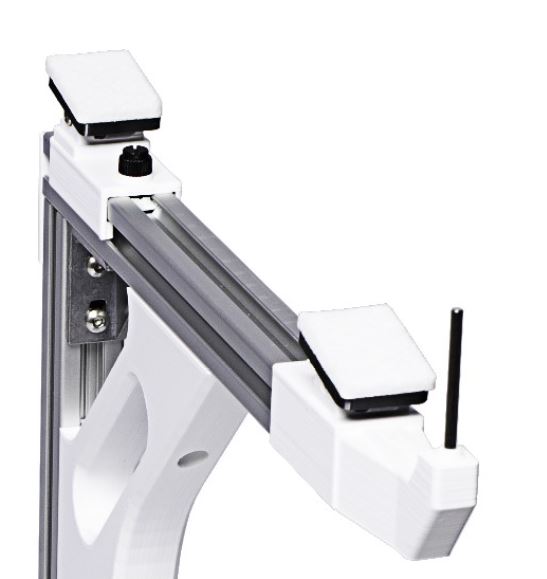

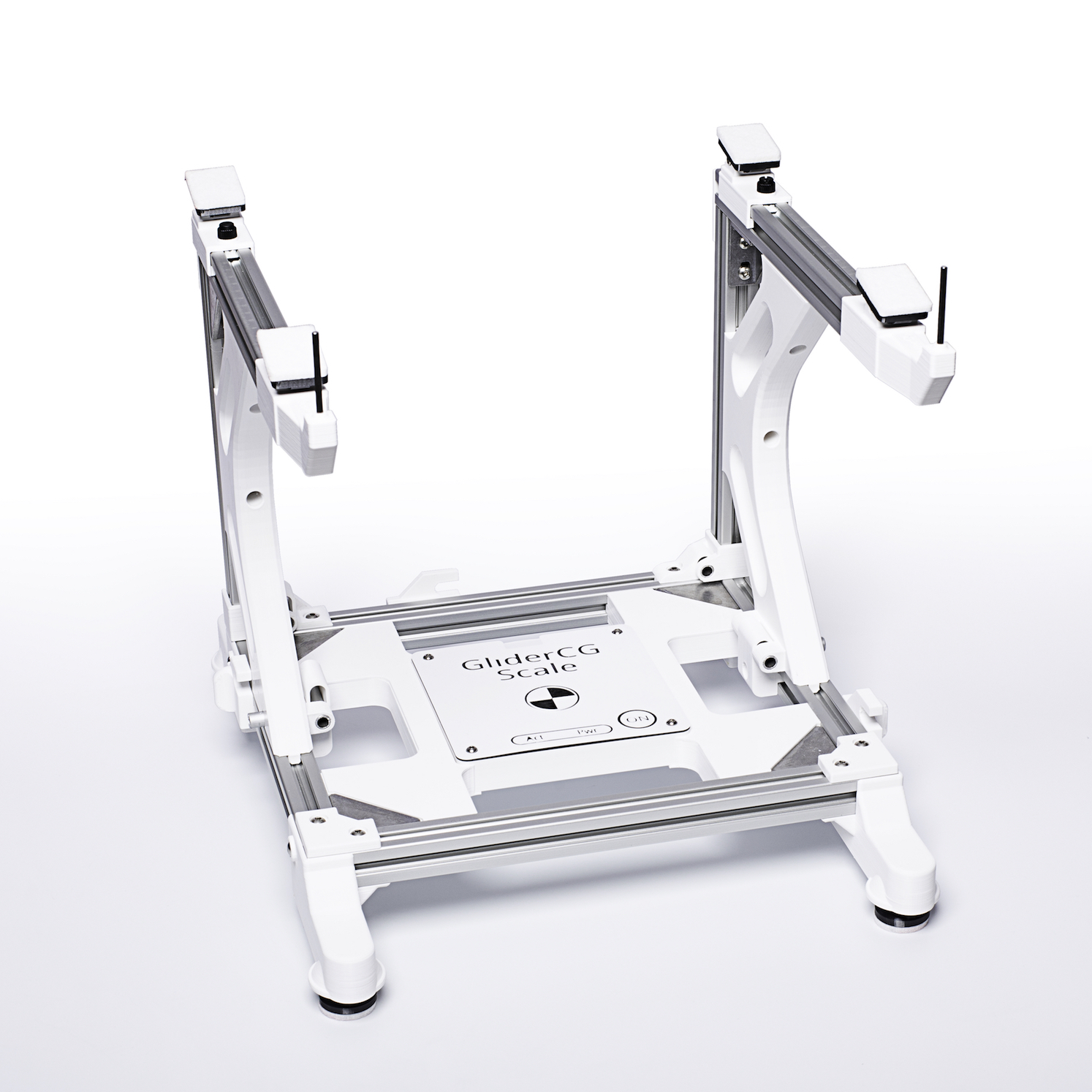

Thousands of models have already been balanced, adjusted and optimized using the GliderCGs currently on the market. Pilots asked for a scale that can be used to weigh all models from small to large and accomodate landing gear. Now being introduced is the GliderCG Scale Mini, which is almost like a jack-of-all-trades. Like the larger scale versions, the mini scale also consist of a stable aluminum frame, can accommodate models with landing gear chassis and displays the data via WiFi. The weight range is from 0.22lbs (100g) to 55lbs (25kg). Fuselage widths and depths of up to 9.8 in (250 mm) are possible. The wing surface depth is also secondary, as the rear support point is designed to be adjustable. This means that all models can be weighed equally, ranging from small throwing gliders to Giant scale birds.

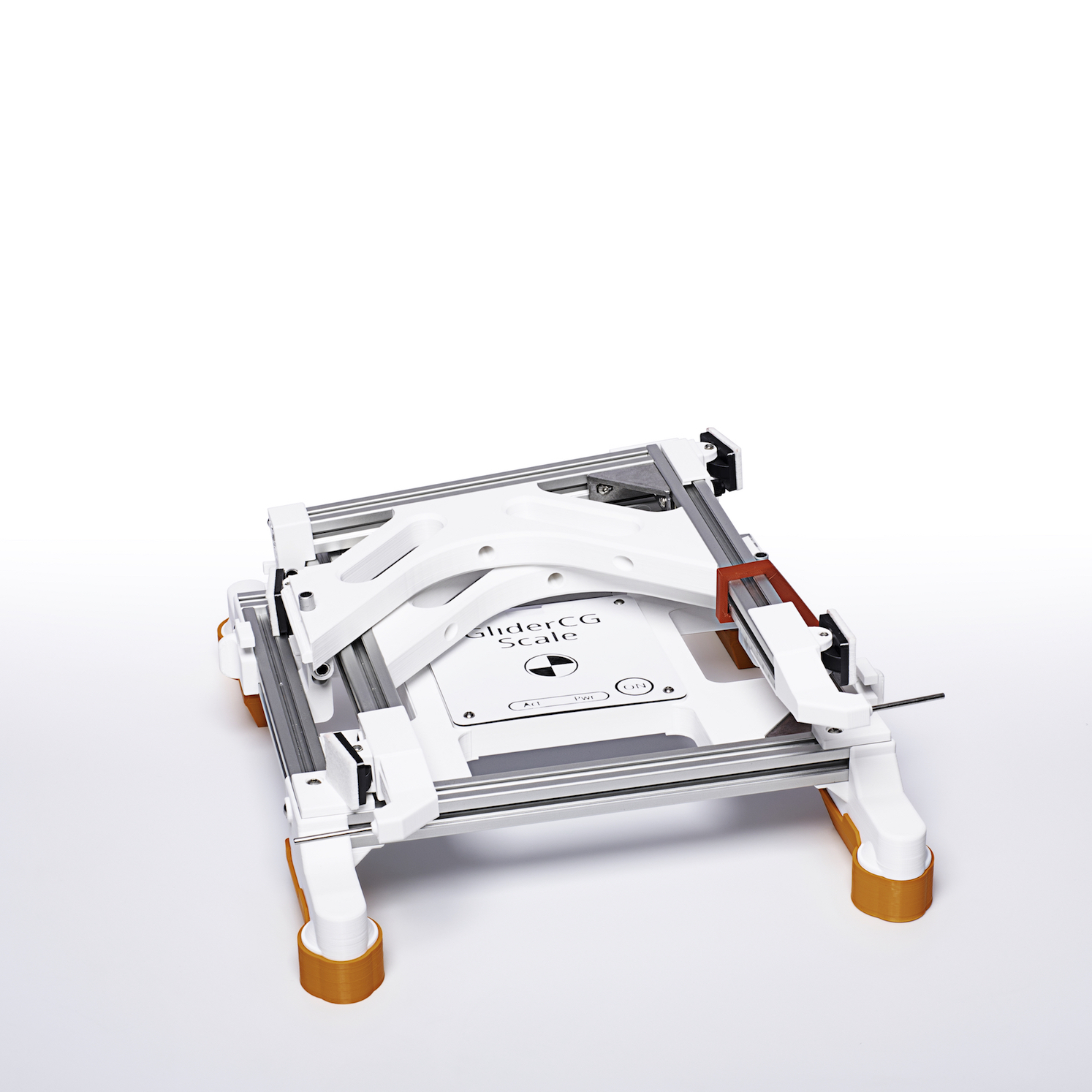

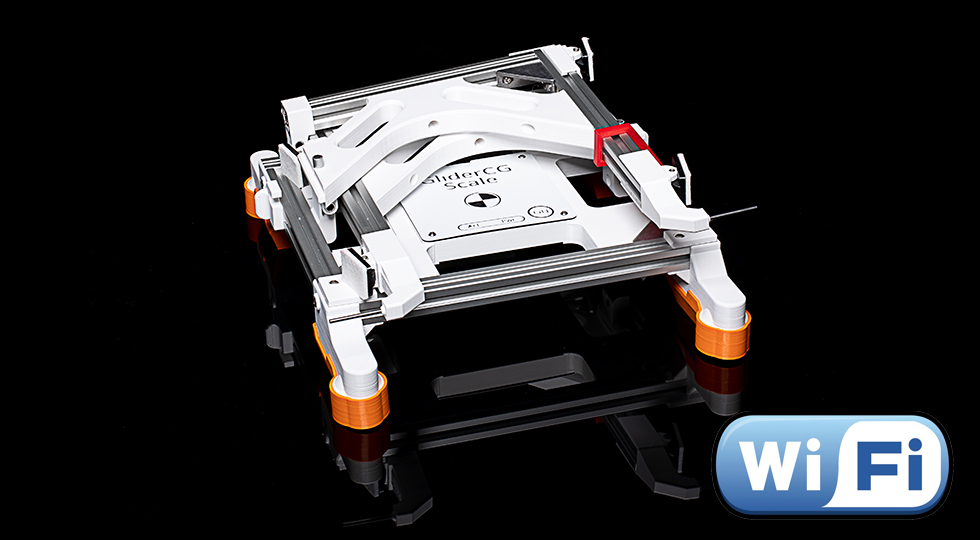

The Mini scale is also equipped with a folding mechanism, so the scale can be easily stored away when not in use. But that's not all! The scale has a simple touch button to switch it on and the charging closure is also designed as USB-C, making it even more robust.

GliderCG – Scale Mini bis 25kg | Mahmoudi Modellsport

GliderCG Scale Mini is the latest variation designed to minimize the size, while incorporating new functionalities such as folding arms, charging through a USB-C port and redesigning the electronics to incorporate a tactile power button.

GliderCG Mini supports fuselages up to 9.8" x 9.8" in diameter and up to 55 lbs with landing gear.

SPECIFICATIONS

  • Dimensions: 13"h x 12.8"w x 14.5"d
  • Folded dimensions: 4.3"h x 12.8"w x 14.5"d
  • Weight: ~4 lbs / 2 kg
  • Maximum weight: 55 lbs / 25 kg
  • Maximum fuselage width: 9.8 in / 250 mm
  • Maximum fuselage height (from bottom fuselage to wing bottom): 9.8 in / 250 mm
  • Leading edge to rear support pad distance: 11.8 in / 300 mm
  • Power: 800mAh rechargeable Lithium battery (provides ~2 hours of continuous operation)
  • Charge port: USB-C
  • Charge time: ~1 hour


DOCUMENTATION

$20 Flat Rate Shipping for USA only. Contact us at [email protected] to calculate international shipping cost.

: *
: *
: *
