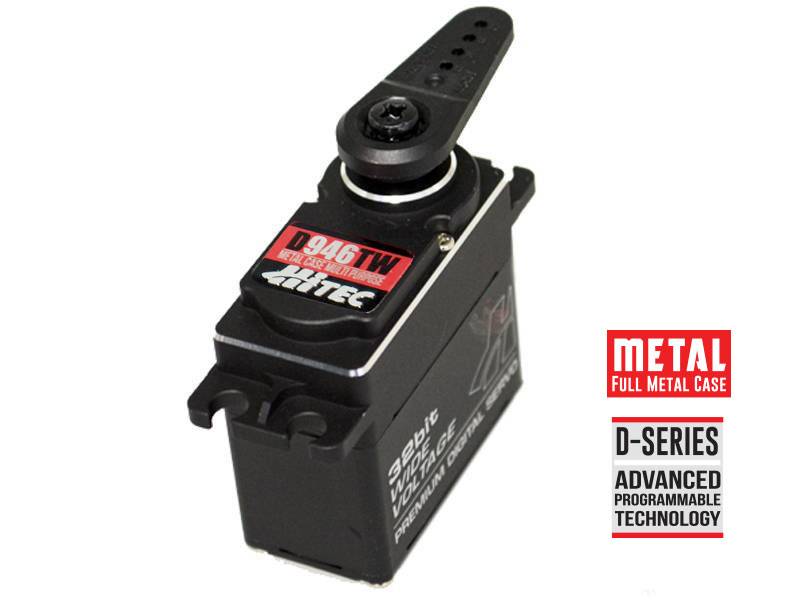

HiTec D-946TW 32-Bit, Multi-Purpose, Titanium Gear Servo (23kg/319oz 0.10sec@7.4V)

The Redwing RC Office will be closed 17 Oct-10 Nov. Orders can still be accepted during these times and will be processed in the order received. If you need the item urgently (moved to top of the list), select Priority express and we will do our best to rush the order out to you when we return.

more offers

HiTec D-946TW 32-Bit, Multi-Purpose, Titanium Gear Servo (23kg/319oz [email protected])

Ask a question about this product

Printable version

Options

Market Price: $233.95

Our Price:

$149.99

You Save

36%

Quantity (15)

Details


Availability	15 in stock
Weight	0.38 lbs
SKU	HRC36946S
Manufacturer	Hitec

Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by their 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!

Features:

High Response Circuitry
Wide Voltage Capabilities
32-Bit MCU Technology
Full Programmability
Smart Sense Technology for Servo Analytics
25-Tooth Output Spline

Programmable Features:

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Soft Start Rate
Overload Protection
Data Save / Load
Program Reset

Dimensions	1.57" x 0.79" x 1.50" (40 mm x 20 mm x 38 mm)
Product Weight	2.4 oz (68 g)
Output Shaft Style	25 tooth (H25T) spline
Voltage Range	4.8 V - 7.4 V
No-Load Speed (4.8V)	0.16 sec/60°
No-Load Speed (6.0V)	0.12 sec/60°
No-Load Speed (7.4V)	0.10 sec/60°
Stall Torque (4.8V)	194 oz-in. (13.97 kg.cm)
Stall Torque (6.0V)	250 oz-in. (18 kg.cm)
Stall Torque (7.4V)	319 oz-in. (22.97 kg.cm)
Max PWM Signal Range (Standard)	750-2250 μsec
Max Travel (out of box)	120°
Pulse Amplitude	3-5 V
Operating Temperature	-20°C to +60°C
Continuous Rotation Modifiable	Yes
Direction w/ Increasing PWM Signal	Clockwise
Deadband Width	1 µs
Motor Type	Coreless
Feedback Style	5KΩ Potentiometer
Output Shaft Support	Dual Ball Bearings
Gear Material	Titanium
Wire Length	11.81" (300 mm)
Wire Gauge	20 AWG
