GOM Rock Crawler Buggy Kit, 1/10 Scale, w/ a GR01 Chassis, and 4WD

Ask a question about this product

Printable version

Options

Our Price:

$339.99

Quantity

OUT OF STOCK

Notify me when back in stock

Details


Availability	No items available
Weight	10.40 lbs
SKU	GMA56000

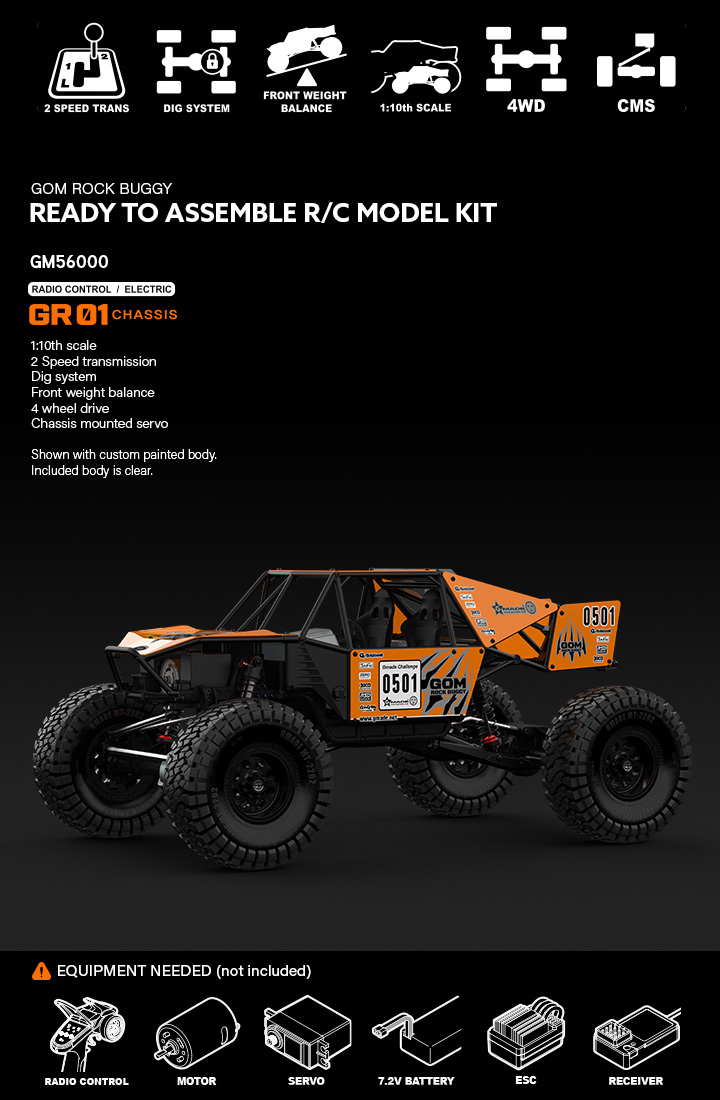

GOM Rock Crawler Buggy Kit, 1/10 Scale, w/GR01 Chassis, 4WD

The GOM (translates to "Bear") features a lightweight, extremely rigid tube chassis that not only looks extremely scale, but protects against impact. The steering servo is mounted to the chassis, and bump steer has been minimized to provide the best possible steering performance. The dustproof receiver box and easy access battery door provide plenty of space for your components.

The GOM's front weight balance is designed to increase traction to the front wheels, improving climbing on steep angles and minimizing roll-overs.

The 2 speed transmission, and transfer case with built in dig function, are designed to enhance the scale appearance of the vehicle. Drivetrain efficiency has been improved by lowering the transfer case and reducing the driveline angle. The dual pad slipper holds the spur gear firmly and evenly, making precision settings easy to achieve.

The GA60 axles are structurally reinforced with an axle truss to not only reduce the risk of breakage, but to give a great scale appearance. They feature Hi Steer Zero Ackerman Knuckle Arms for improved clearance and a tight turning radius.

Suspension utilizes 103mm aeration coil-over shocks for smooth driving on rough surfaces. Shock bodies are CNC machined, and 3.5mm shock shafts provide high durability. Rebound can be adjusted without disassembling the shock by simply using the aeration shock cap screw.

GT02 wheels and MT2202 2.2" tires are included.

Body panels are clear, so you can create your own unique paint scheme.

Features:

Full Tube Frame Chassis
2 Speed Transmission
DIG System
Front Weight Balance
4 Wheel Drive
Chassis Mount Servo System with Panhard Bar

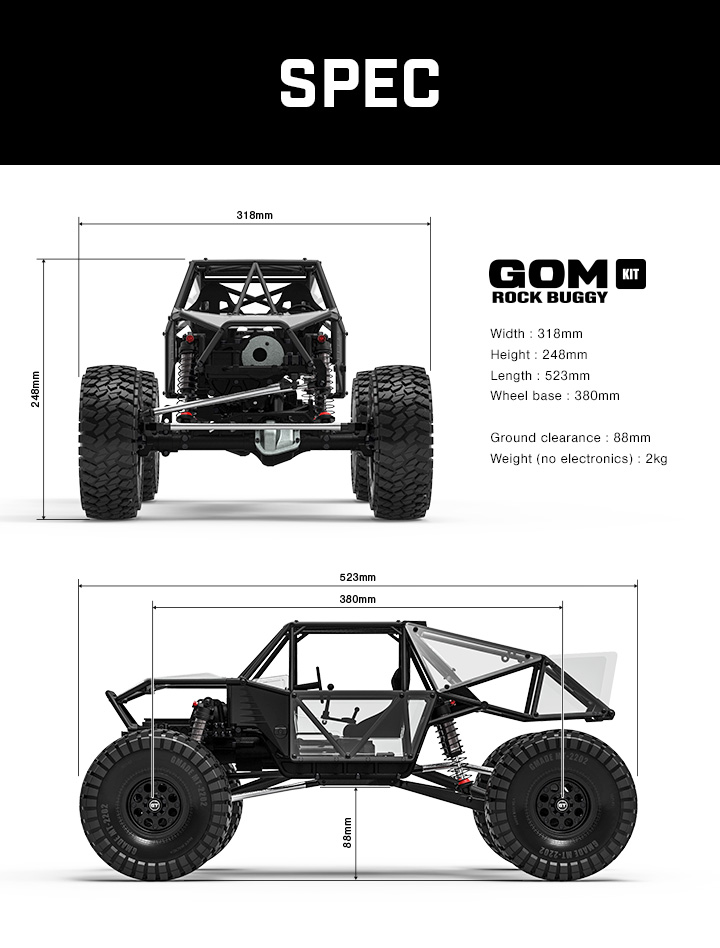

Specifications:

Width: 318mm
Height: 248mm
Length: 523mm
Wheelbase: 380mm
Ground Clearance: 88mm
Weight (No Electronics): 2kg

Paraboard Parallel Charging Board /EC5+Deans (T-plug) Connector

Paraboard Parallel Charging Board for Lipo /EC5+Deans Connector

This Paraboard lets you charge and balance up to six lipo batteries at once! This board features Traxxas connectors for your batteries' main leads and JST-XH balance plugs ranging from 2S to 6S. They plug right into most popular models of 6S lipo balancing chargers that have 7-pin balance ports with 2.5mm pin spacing.

To get the most out of your Paraboard, pick up one of our GT-400 chargers. It provides 400W of total charging power and charge rates of up to 20 amps! This paraboard has a maximum charge rate of 30 amps.

Battery packs must be of the same cell count (only charge 2S with 2S, 3S with 3S, etc.) and battery voltages must be within 0.1V per cell (0.1V for 1S, 0.2V for 2S, etc.) of all other batteries connected to the Paraboard at the same time. Use a Cell Spy or similar voltage tester to check the voltage of each cell before connecting to the Paraboard.

EPB-EC5-Deans

$14.95 14.95

HiTec DB778WP, Ultra-Torque, Brushless, Low Profile, HV Waterproof Servo 20.4kg/283.6oz [email protected]

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9360’s speed is ideal for pilots with the need for speed!

Features:

Power Efficient Brushless Motor Controller
Energy efficiency is a common interest for all modelers. Our HSB-9XXX Series uses the latest control circuit technology including a regenerative braking circuit which puts power back into the battery as the motor slows. This feature, combined with ultralow current draw under sustained loads, allows our brushless servos to consume 1/5 the power of most other brushless servos on the market today.
Custom NeuMotor
Designed by Steve Neu exclusively for our HSB-9XXX Series, these high performance, brushless motors provide longstanding durability and performance.
Constant Torque Output:
Thanks to our revolutionary circuit and motor designs, the HSB-9XXX Series maintain their speed in a more consistent manner, regardless of load.
Hybrid MPD 1st Gear:
Our unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle.
Industry-Leading Titanium Gear Train
Hitec was the first manufacturer to utilize low wear Titanium gears in our servos and continues to be the leader in Titanium gear technology.
25-Tooth Standard Spline
Our Brushless servos utilize a standard 25 tooth output spline for maximum compatibility with the large variety of aftermarket horn available on the market these days.

Specifications:
- Torque:
  - 236 oz/in at 6V (17.0 kg-cm)
  - 236 oz/in at 7.4V (17.0 kg-cm)
- Speed:
  - .08 sec at 6V
  - .06 sec at 7.4V
- Voltage: 6V - 7.4V
- Weight: 2.40oz (68g)
- Size: 40 x 20 x 68 mm (1.57 x 0.79 x 1.50in)
