TomCat Skylord Advance 120A ESC with 10A/25A, 5-8V BEC for Premium Aircraft (2S-6S)

Contact UsCustomer Reviews

TomCat Skylord Advance 120A ESC with 10A/25A, 5-8V BEC for Premium Aircraft (2S-6S)

Market Price: $149.99
Our Price:

$119.99

You Save

20%

Quantity (5)

Availability 5 in stock
Weight 0.90 lbs
SKU DY-TC39405

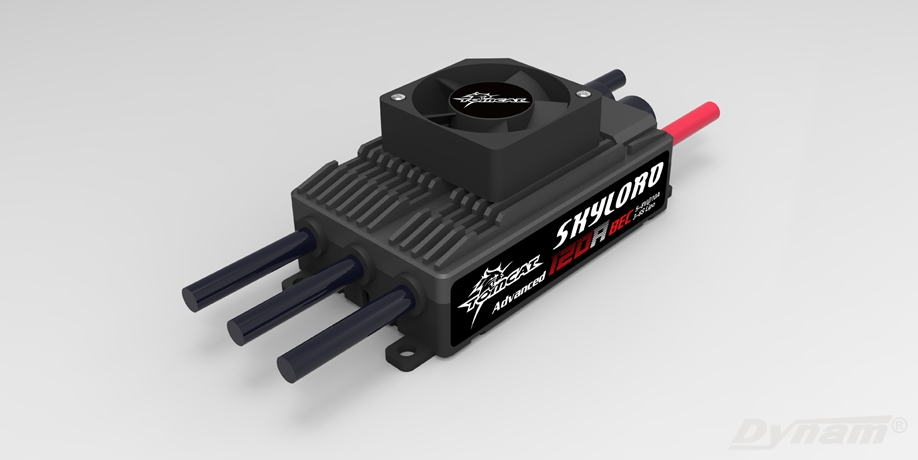

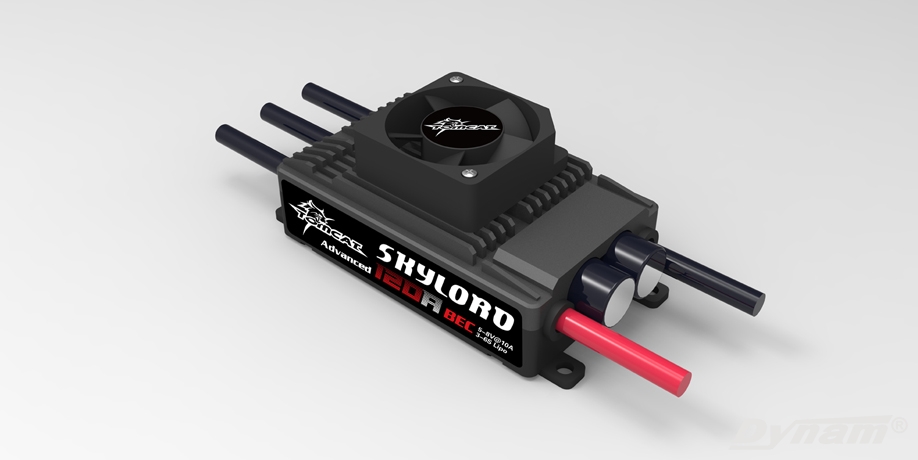

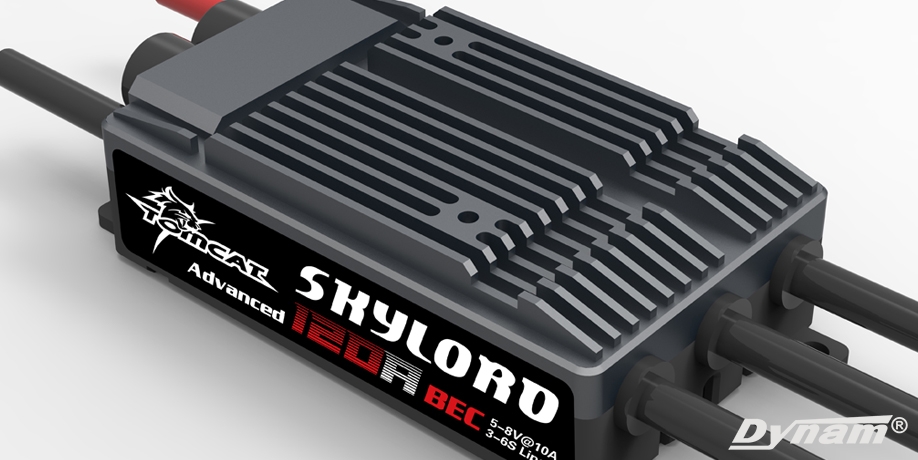

Skylord Advanced 120A is an electronic speed controller (ESC) for controlling the motor speed and applicable for 500~550 class helicopter (propeller: 470~575mm), large airplane, large duct airplane. This ESC, whose continuous current is 120A, supports multiple flight modes including Fixed-wing, Helicopter (Linear Throttle), Helicopter (Elf Governor), Helicopter (Store Governor). It also supports multiple protections, and can be adjusted parameters by 3-in-1 program card, which is convenient to user.

Specifications

Model: Skylord Advanced 120A

Application: 500-550 Class Helicopters (Propeller: 470-575mm), large airplane, large duct airplane

Input Voltage: 2S~6S Li-Po

Continuous Current: 120A

Peak Current (10s): 150A

BEC Output: Switch-mode, 5~8V Adjustable (Step: 0.1V), 10A/25A Cont./peak

Throttle Signal/BEC Output/RPM Signal Transmission Wires: Throttle Signal Wire: White

BEC Output Wires: Red & BlackĖŽ Red & Brown

RPM Signal Transmission Wire: Yellow

Separate Programming Port: For connecting 3-in-1 program card

Weight: 110g

Size: 79*40.5*31.6mm

: *
: *
: *


Detrum 3-IN-1 Program Card for ESC, Stabilizer and Battery



Detrum 3IN1 Program Card for Stabilizer/ESC/Battery

DY-DM37920

$35.99

Fourtitude V2 Smoke Tanks 16oz

16oz Smoke Tank
[email protected]

*Fourtitude has had to amend their fuel tanks due to federal regulations on shipping fuel containers. Check out the video below to see just how easy it is to assemble the tank!

Take the guesswork and worry out of properly setting up a smoke system in your aircraft with these easy to use 4titude smoke tanks!

We've been receiving a few requests for the smoke tanks and as usual Redwing RC has LISTENED! Introducing the Fourtitude Smoke Tanks available now at Redwing RC! You're welcome :-)

Video:





Features:

  • Crystal Clear allowing quick visual checks of any possible pollutants in your smoke tank.
  • Lightest weight commercially available R/C smoke tank on the market. Many cases less than half the weight of the older roto molded “standard” tanks.
  • Aerospace Mil spec sealant used in assembly to assure the tank will hold up to many high G loaded flights!
  • Incredibly resilient and truly seamless tank body with a threaded on closure
  • No rubber stopper to crack, leak, or split your tank apart.
  • Detailed installation instructions.

    Fourtitude R/C RTU Smoke tanks include: A high quality double sided hook and loop mounting strap, precut to shape foam mounting pad, and Fourtitude R/C blue fuel line to plumb your aircraft. Everything you need to get smoking up the sky ASAP!

    These crystal clear plastic tanks are square shaped which makes mounting into your aircraft very simple. Every tank is QC pressure leak tested.

    16oz Fourtitude SMOKE tank

FORS2216

$23.99

New 2020 Mini X320 Park Flyer Water and Land RTF with GYRO and LEDs

Mini X320 Park Flyer Water and Land RTF  with GYRO and LEDs

Do you feel the need for speed? Check out the Dynam Meteor V2. This is a High Speed 70mm EDF Sport Jet that features retracts! How cool is that?! The Meteor V2 is constructed with EPO crash resilient foam and it is pre-painted saving you time. If that's not enough, all servos, 70mm Fan, and the 60Amp ESC are factory pre-installed. This airplane is designed for High-Speed flying which is made possible with a powerful Brushless Electric Ducted-Fan. The Fan Unit is is very well constructed for High-Performance flying. In case you were wondering, this model is absolutely one of the fastest EPO EDF jet on the market.



Key Features:

  • Powerful 70mm EDF fan unit and motor
  • 60A Brushless ESC with Switch-Mode BEC
  • retractable landing gear
  • Easy to build.
  • SUPER FAST

Specifications:

Wingspan: 35.8 inch (910mm)
Overall Length: 43.3 (1100mm)
Flying Weight: 38.8oz (1100g) w/Battery
Fan Unit: 70mm fan unit (installed with motor)
Motor Size: Powerful 400 high speed outrunner brushless motors (installed)
Radio / Transmitter: 5 Channel Required - (Not Included)
Receiver: 5+ Channel (Not Included)
Servos: 4 servos installed ( 4 x 9g )
Speed Control : 1 x Dectrum 60A Brushless with Switch-Mode BEC (installed)
Battery: 14.8V 2600 mah 25C LiPo (Not Included)
Charger: NOT INCLUDED 2S - 4S lipo charger
Flight Time:

Average (6-10 mins)














X320-RTF

$59.99

118" Scale Wilga PZL-104 (100-130cc) SCRATCH AND DENT SALE--$1000 OFF for dent in fiberglass canopy

  • 118" Scale Wilga PZL-104 (100-130cc)

Description:

50cc Monsun 102"

The Monsun is an exciting airframe to look at and just spectacular to see in the air. Complete with step ladder, navigation and landing lights, front wheel steering, and more! The 50cc Monsun is a masterpiece that will amaze you and your friends at the flying field. Get ready for a new flying experience!

Product Manual



Specifications:*(More Coming Soon)*

  • Wing span: 2590.8mm/102in
  • Wing area: 91.67sq.dm
  • All up flying weight:
  • Length: 1837mm/72.in
  • Cowl:
    • Inside Width: 12.5 in
    • Inside Height: 10 in
  • Engine: 50cc - 60cc
  • Radio: 4-6 Channels, at least 6 servos (10-15KG torque)
  • Receiver Battery: 4.8-6V
  • Recommended Spinner Size: 3.5in
  • Recommended Prop Size: 22x8, 22x10
  • Recommended CG: 138mm measured from leading edge
  • Recommended Throws:
    • Low Rates Settings | High Rate Settings
    • Rudder: |
    • Ailerons: |
    • Elevator: |



Features:

  • ARF airplane model
  • Bonnet GRP
  • Fuselage and wings in wood construction; Balsa (laser-cut)
  • High-quality film ready made
  • Excellent flight characteristics
  • Perfect for towing gliders
  • Fully functional landing flaps
  • Scale-chassis; Main landing gear, strap made of CFRP
  • Front suspension with aluminum shock absorbers
  • Professional, newly developed joint members; GFK control horns and servo arms CFK
  • LED position lights
  • Pre-painted fiberglass cowl
  • Wheels, linkages, small parts, illustrated instructions
  • Removable Wings
  • Ringed Cowl
  • Adjustable push rods
  • Painted Spinner (Optional)
  • Fast fly and easy build features such as: Pre-drilled hinges, pre-plumbed fuel tank, and pre-installed rudder cable


30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes 30cc rc planes



DLE 35ra DLE55


Build & Ship Plane

SS-Wilga-120

$499.99
