SCORPION A-6528-200kv Motor for Giant Scale Airplane (12S 60-76cc)

Ask a question about this product

Printable version

Options

Our Price:

$449.99

Stand Off

Cross Mount

ESC

Battery

Quantity (2)

Notify me when back in stock

Details


Availability	2 in stock
Weight	5.00 lbs
SKU	A-6528-200kv
Manufacturer	Scorpion

Data chart

Product Description

The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. We have achieved incredible performance through incredible efficiency. By optimizing the magnets in the rotor, and using the best quality 0.2mm thickness silicon steel stator sheets, and 2 x single strand 1.2mm enamel coated copper wire windings rated above 200C+, the performance and efficiency results are unlike anything we have seen before! Combined with a robust design which has been tested extensively by our world class team pilots for longevity and reliability, we feel this motor checks and exceeds all measurable categories!

The A-6528-200kv was designed specifically for 85"-95" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 6000w of power. This motor is equivalent to a 60cc/76cc gas engine. We call it 60/76cc because with a 23" prop it is very equivalent to a 60cc gas engine and pulls less amps and therefore could run smaller batteries for lighter overall model weight. Or with a 24" prop it pulls as hard as a 76cc gas engine, with more amps thus requiring a larger battery.

Recommended Prop Selection :

23x10E = Efficiency / 60cc performance

24x10E = Optimal / 70cc-76cc performance

24x12E / 25x8E = High Alt

Recommended ESC -: Tribunus II+ 14-200A ESC SBEC

Acrobatic Weight Range -: 8.18kg - 12.7kg (18.0lbs - 28.0lbs)

Sport / UAV (single engine) Weight Range : - 12.7kg - 36kg (28.0lbs -80lbs)

Scorpion A-6528-200kv + A-6528 PNP Combo {Official Promo Video}

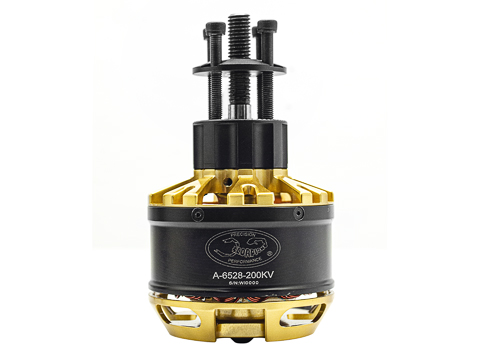

Scorpion A-6528-200kv

Specifications

Motor Kv	200 RPM / Volt
Weight (Motor only)	998g (35.20 oz)
Weight (including mount + Prop mount accessories)	1115g (39.33 oz)
Motor Body Dimensions	78.5 mm x 67.8mm (3.09" x 2.67")
External Shaft Diameter	10mm
Continuous Current	95A
Continuous Power	4218 Watts
Peak Current*	135A
Peak Power*	6000 Watts
Max Rated Lipo Cell**	12s
Stator Diameter	65.0 mm (2.56 in)
Stator Thickness	28 mm (1.10 in)
No. of Stator Arms	12
Magnet Poles	14
Motor Wind	6T/7T Delta
Motor Wire	2-Strand x 1.2mm
No-Load Current (IO/15V)	2.02 Amps
Motor Internal Resistance (phase-phase)	20 m?
Motor Inductance (phase-phase) @ 1khz	23µH
Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling
Higher Cell Count possible with smaller prop usage

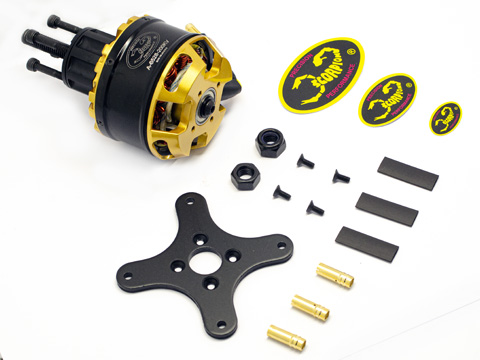

Included in the Box

1 x Scorpion A-6528 BLDC Motor
1 x A-55/65 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
3 x Female 6mm Connectors
3 x Heat Shrink
3 x Scorpion Stickers
2 x M10 Nuts

Weight including packaging

1490g

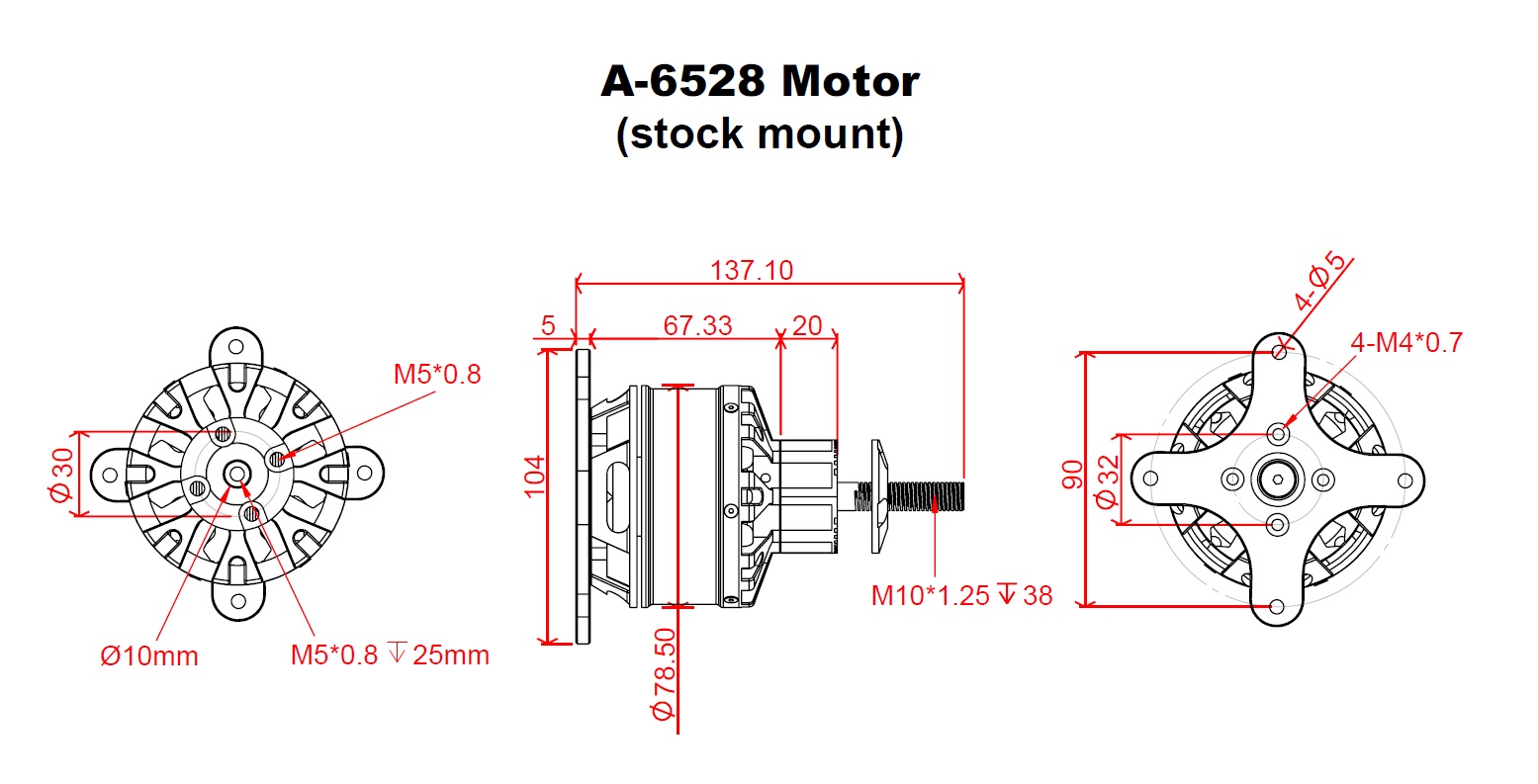

Full Dimension

View Scorpion A-6528-200kv Full Dimension

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$249.99 249.99

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1.65 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 23x8, 24x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d

Features:

Two crankshaft bearings-simple design for lighter weight
Aluminum alloy crankcase
Four petal V-type reed valve bottom induction system
Walbro carburetor
Fully automatic electronic ignition
Two year limited warranty through Hobby Services beginning at date of purchase
INCLUDES: Engine, spark plug, standoffs, ignition, muffler, instruction manual

DLE-55

$399.99 399.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
