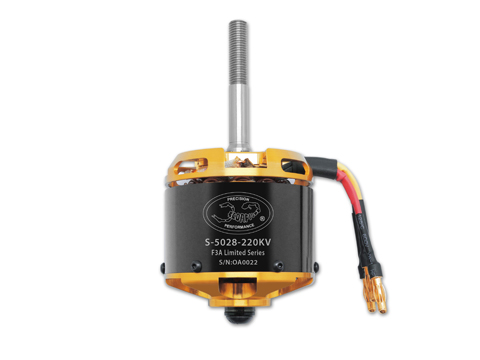

SCORPION S-5028-220KV (F3A LIMITED SERIES)

Ask a question about this product

Printable version

Options

Market Price: $359.99

Our Price:

$349.99

You Save

3%

Quantity (4)

Details


Availability	4 in stock
Weight	3.00 lbs
SKU	MTR-0110
Manufacturer	Scorpion

Scorpion S-5028-220KV motor is specially designed for F3A and run on 10 Li-Po cells with props in the 19 to 20 inch range. Everything possible has been done on this motor to get the most possible power at the lightest possible weight. The Front housing, Bearing Tube and flux ring have been made as light as possible, and a Titanium Main Shaft is used to save even more weight, while maintain strength.

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are rated for operation at 200 degrees C (392 F), making a motor that is virtually impossible to burn up in normal use.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your planes.

Specifications

Stator Diameter	50 mm (1.56 in)
Stator Thickness	28 mm (1.10 in)
No. of Stator Arms	12
Magnet Poles	14
Motor Wind	11 Turn YY
Motor Wire	1-Strand 1.2 mm
Motor Kv	220KV RPM / Volt
No-Load Current (Io/10V)	0.98 Amps
Motor Resistance (Rm)	0.032 Ohms
Max Continuous Current	70 Amps
Max Continuous Power	2590 Watts
Weight	576 Grams (20.32 oz)
Outside Diameter	59.8 mm (2.35 in)
Shaft Diameter	M8*1.0
Body Length	60 mm (2.36 in)
Overall Shaft Length	113.6 mm (4.47 in)
Max Lipo Cell	10s
Shaft Material	Titanium
Motor Timing	5deg
Drive Frequency	8kHz

Weight including packaging

740g

Data Chart

VIEW SCORPION S-5028-220KV (F3A LIMITED SERIES) DATA CHART

Full Dimension

VIEW SCORPION S-5028-220KV (F3A LIMITED SERIES) FULL DIMENSION

XQ 4013 digital 6v

Description:
The XQ 4013 servo is the best option out there for 30cc sized 3d planes. Perfect combination of speed and torque and a price point that make the other servo companies jealous.

The XQ 4013 has superior reliability to other servos. They have a core less digital motor, for precise strong movement. The XQ 4013 has all titanium gears, heat sink to reduce overheating, waterproof housing, and great torque and speed.

The XQ 4013 is perfect for a 30CC 3D plane for ALL surfaces. They can be used reliably in a 50cc plane also on all surfaces.

Specifications:

Torque:
- 166.7 oz/in at 4.8V (12.0 kg/cm)
- 197.2 oz/in at 6V (12.8 kg/cm)
Speed:
- .13 sec at 4.8V
- .11 sec at 6V
Voltage: 4.8V - 6V
Weight: 2 oz (59g)
Size: 40x20x39mm
Gear Style: Futaba Arms
Modulation: Coreless Digital
Gear Type: Titanium
Weight: 2oz (59g)
Size: 40x20x39mm

Watch this video of the XQ 4013 beating the Hitec 7985mg

Features:

Titanium Gears
Waterproof
Coreless
Digital
High Torque/High Speed
Smooth resolution

Don't forget to buy some circle servo arms to fit your carbon fiber arms you got in your kit!

X-4013

$42.50 42.50

DLE 20cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
Glow power isn't the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gas upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment of the DLE 20cc. A generous package of "extras" and electronic ignition for starting ease and top performance make the DLE 20 an attractive alternative to glow…and a solid buy for value and performance.

We supply a free 2 year warranty with our DLE 20, and also back it with our in house repair of DLE engines.

Download DLE 20 Manual

Specifications:

Stock Number: DLEG0020
Displacement: 20 cc (1.22 cu in)
Bore: 1.3 in (32 mm)
Stroke: 1.0 in (25 mm)
Weight: 28.9 oz (820 g)
RPM Range: 1,750-9,000
Output: 2.5 hp @ 9,000 rpm
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, throttle arm extension & manual
Suggested Propellers: 16x8 17x6
Suggested Break-in Prop: 16x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 10.5:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Hawk "C" type 17x6 (for 3d), 16x8 (sport/pattern)

DLE-20

$249.99 249.99

SmartDesign V3 "Trouble Free" Tail Wheel Assembly

Description:

This tail wheel assembly is extremely efficient and reliable. With fewer parts, there is less to worry about and the solid construction makes it the go-to choice for pilots at any skill level. The new V2 design incorporates ball bearings for smooth motion, ball-joint to rudder steering connection, wider CF mounting plate, and slightly larger wheels that the v1. "Trouble Free" means just that... no more worrying about screws falling out or loss of control. Make the switch today by installing the SmartDesign Tail Wheel!!!

CNC Aluminum & C.F. Tail Wheel Assembly for 20cc to 220cc

Features:
