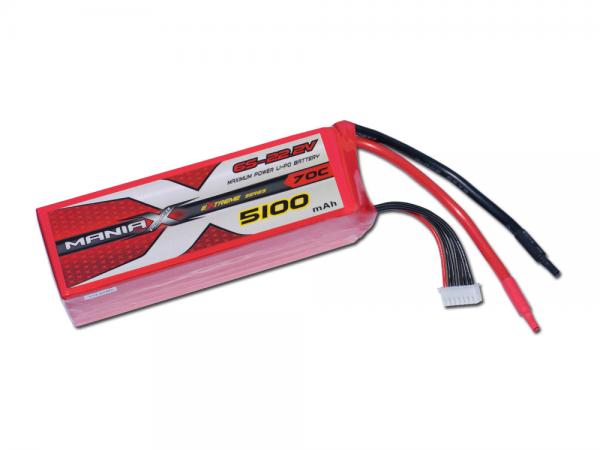

ManiaX Power LiPo 6S 5100mAh 22.2V eXtreme Series 70C

Contact UsCustomer Reviews

ManiaX Power LiPo 6S 5100mAh 22.2V eXtreme Series 70C

Our Price:

$134.99


Quantity (2)

Availability 2 in stock
Weight 1.40 lbs
SKU MX-6S-5100-70C
Manufacturer ManiaX Power

The ManiaX Power LiPo batteries are characterized by:

- More cycles with less wear
- High charging rate
- High voltage level under load
- Constant voltage - Power until the end of the flight
- Low internal resistance
- Low heating even under full load
- Top performance / discharge rate - / Weight ratio

Technical data:
- Voltage: 22.2V
- Capacity: 5100mAh
- Permanent discharge rate: 70C
- Short-term discharge rate: 140C
- Charging current: 1-3C max. 5C
- Dimensions H x W x L:  51 x 48 x 155mm
- Weight: 830 g
- Balancer plug : XH
Discharge cable length : 12cm - Discharge cable: 8AWG
- Discharge plug: XT90

****Batteries must ship surface mail due to hazmat restrictions and have been taking longer to reach destination****Express and Priority mail are not an option for surface ground mail.


: *
: *
: *


Pulse Ultra PLC100 AC/DC Multi-Chemistry Smart Battery Charger

Description:
With this Imax B6AC multi charger, you can charge using a battery at the feild or your ac plug at home! You can charge up to 6 cell batteries. It's capable of charging most types of batteries, LIFE LIPO LION (A123) NICAD NIMH ETC

If you have a splitter you can charge 2/3 cell batteries at once (using an adapter)



Specifications:

  • Input Voltage: DC 11-18V / AC in: 100V-240V 50-60Hz
  • Circuit power: Max Charge: 50W / Max Discharge: 5W
  • Charge Current Range: 0.1-5.0A
  • Discharge current range: 0.1-1.0A
  • Ni-MH/NiCd cells: 1-15
  • Li-ion/Poly cells: 1-6
  • Pb battery voltage: 2V-20V
  • Weight: 531g
  • Dimensions: 134x142x36mm














Features:

  • iMax B6AC 1-6 Cells Digital Multifunctional Balance Charger
  • 100-240v AC input or 11-18V DC input
  • Microprocessor controlled
  • Delta-peak sensitivity
  • Individual cell balancing
  • Li-ion, LiPo and LiFe capable
  • Ni-Cd and NiMH capable
  • Large range of charge currents
  • Store function, allows safe storage current
  • Time limit function
  • Input voltage monitoring. (Protects car batteries at the field)
  • Data storage (Store up to 5 packs in memory)
  • Battery break in and cycling.










Package Contents:

  • iMax B6AC 1-6 Cells Digital Multifunctional Balance Charger
  • 4mm Banana Plug to Male Deans style connector
  • A female Deans style connector to a pair of Alligator clips
  • A female Deans style connector to a female Futaba style servo connector
  • A female Deans style connector female JST style connector
  • A female Deans style connector to Glow Plug type connector
  • Power Cord
  • User Manual











PLC-100

$59.99

Pulse CellMeter 8 - Lipo Battery Checker & Servo Tester





























































Description:

The Pulse CellMeter-8 is the latest version of battery testers - and is now available to our Redwing customers! If you want a new, easy to use, digital battery and capacity tester, your search is over. The Pulse CellMeter-8 can check the overall and individual voltage of 2 through 8 celled, LiPo / LiFe / Li-Ion batteries and 4 through 8 celled, Nicd / NiMH batteries - as well as instantly provide you with your remaining capacity. Did I mention that happens INSTANTLY? We can't make this stuff up.

This nifty little checker does more than that! The cell button allows you to balance your packs as well. So this isn't your typical bettery tester - but a balancer built in.



Features:

  • High visibility LCD display screen
  • Easy to use Menus
  • Full instructions included
  • Balance Mode
  • Port for balance plug for up to 8 cell Lipo, LiFe, or Li-Ion batteries
  • Instant Battery capacity graph
  • Can be used as Servo tester to test standard and narrow servo.
  • Port for discharge plug of NiMh/NiCd batteries
  • Can be used to check the battery voltage of Lithium batteries including Lipo, LiFe, Li-Ion, as well as NiMH and NiCd batteries.
  • Measure the voltage of both individual cells and full battery voltage, can also indicate the highest voltage cell, lowest voltage cell and voltage differential between cells

Specification:
Discharge Current: 1A
Balance Current: 1A
Battery Voltage Test Precision: 0.001V
Battery Type: Can test Li-Po/Li-lon/Li-Fe(2-8S),NiCd/NiMH(4-8S) battery
Servo Test Range: 1000-2000us or 500-2500us



PLU-CELLMETER8

$14.99

6S Pulse LiPo Batteries





































Description:

Pulse Lithium Polymer Batteries - Setting a New Standard.

As Lithium Polymer battery technology continues to push new boundaries, Pulse Lithium Polymer Batteries bring a whole new element into the mix - power & performance at a price that simply can't be ignored.

Designed specifically for the demands of the latest power plants, not to mention the new realm of extreme 3D flight, Pulse brings a whole new battery to bear at a cost never seen before. Simply put, premium power no longer comes at a premium price.

Incorporating the latest advancements in Lithium Polymer technology, Pulse Batteries are designed to bring performance levels to a new stratosphere with 35C, 45C, and 65C battery packs in multiple capacities for the helicopter of your choice. Add the 5C charge rates, and the fun just begins.

Pulse Lithium Polymer Batteries - Can You Feel Your Pulse Quicken?

Pulse Batteries Available Individually or in a PRE-MADE System!

Take the guesswork out of your electric battery set up- we've done it for you! Check out the suggested set up systems for 30cc and 50cc.

LiPo 4500mah 5S, 18.5v - $104.99 each

30cc 10S System: Two (2) LiPo 4500mah 5S, 18.5v - $208

  • Voltage: 18.5V
  • Cell Count: 5S
  • Capacity: 4500mAh
  • Discharge Rate: 45C
  • Dimensions: 159mm x 45mm x 38mm (LxWxH)
  • Weight: 630g
  • Balance Tap: JST-XH


LiPo 3300mah 45C 6S, 22.2v - $94.99 each

30cc 12S System #1: Two (2) LiPo 3300mah 45C 6S, 22.2v - $188

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 3300mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 139mm x 42mm x 43mm  (LxWxH)
  • Weight: 567g
  • Balance Tap: JST-XH


LiPo 3700mah 45C 6S, 22.2v - $109.99 each

30cc 12S System #2: Two (2) LiPo 3700mah 45C 6S, 22.2v - $218

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 3700mAh
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 138mm x 44.5mm x 48mm (LxWxH)
  • Weight: 567g
  • Balance Tap: JST-XH


LiPo 4100mah 45C 6S, 22.2v - $119.99 each

30cc 12S System #3: Two (2) LiPo 4100mah 45C 6S, 22.2v - $238

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 4100mAh
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 137mm x 53mm x 42mm (LxWxH)
  • Weight: 680 grams
  • Balance Tap: JST-XH


LiPo 5000mah 45C 6S, 22.2v - $139.99 each

50cc 12S System #1: Two (2) LiPo 5000mah 45C 6S, 22.2v - $278

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 5000mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 158mm x 45mm x 49mm  (LxWxH)
  • Weight: 800g
  • Balance Tap: JST-XH


LiPo 5500mah 45C 6S, 22.2v - $149.95 each

50cc 12S System #2: Two (2) LiPo 5500mah 45C 6S, 22.2v - $298

  • Voltage: 22.2V
  • Cell Count: 6S
  • Capacity: 5500mah
  • Discharge Rate: 45C
  • Charge Rate: 5C
  • Dimensions: 160mm x 44.5mm x 52mm  (LxWxH)
  • Weight: 873g
  • Balance Tap: JST-XH


LiPo 6000mah 35C 6S, 22.2v - $149.99 each

50cc 12S System #3: Two (2) LiPo 6000mah 35C 6S, 22.2v - $298

  • Cell Count: 6S 22.2V
  • Capacity: 6000mah
  • Discharge Rate: 35C
  • Charge Rate: 5C
  • Dimensions: 160mm x 49mm x 51mm  (LxWxH)
  • Weight: 884g
  • Balance Tap: JST-XH



Purchase pre-made system or buy individually! Select below.



PLU-6S

$149.99

TAFT-HOBBY VALKYRIE 90MM EDF JET 6S PNP VERSION (Red/White/Blue)

TAFT-HOBBY VALKYRIE CARTOON 90MM EDF JET 6S PNP VERSION

TH-VK-6SPNP

$299.00

TAFT-HOBBY QUANTUM 90MM EDF JET 6S PNP VERSION

TAFT-HOBBY QUANTUM 90MM EDF JET 6S PNP VERSION

TH-QT-6SPNP

$339.99

HiTec 5585 MH

Product Description

Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5585MH is rated for  7.4 volt, 2S LiPo operation (or NEAR the same performance with a Redwing LIFE battery.  The HS-5585MH, supplies your airplanes up to 35 percent with outstanding strength and precision.

Get all the muscle you need without straining your wallet! Hitec is proud to introduce our economical, premium digital, high voltage, coreless motor servos, the HS-5585MH

Specifications

  • Torque:
    • 194 oz/in at 6V (14 kg/cm)
    • 236 oz/in at 7.4V (17 kg/cm)

  • Speed:
    • .17 sec at 6V
    • .14 sec at 7.4V

  • Voltage: 6V - 7.4V
  • Weight: 2.10oz (60g)
  • Size: 1.57 x 0.78 x 1.49 in (39.8 x 19.8 x 37.8 mm)

  • Motor Type: Standard HV Digital
  • Bearing Type: 6.0 - 7.4 Volts DC



Advanced Servo Specifications Hitec 5585 MH

  • Control System: Standard HV Digital
  • Operating Voltage Range: 6.0 - 7.4 Volts DC
  • Operating Temperature Range: -4° - 140° Fahrenheit
  • Idle Current: 4 mA
  • No Load Running Current (6.0V/7.4V):
  • Stall Current (6.0V/7.4V): 2100 / 2700 mA
  • Dead Band Width: 2 µs
  • Potentiometer Type: 4 Slider 1M Cycle
  • Connector Wire Length: 11.8 in. / 300 mm.
  • Connector Wire Gauge: 25 AWG


HS-5585MH

$69.99

Bob Smith Industries Insta-Set

Untitled Document

Description:

Bob Smith Industries Insta-Set

Insta-Set™

INSTA-SET™ is a catalyst which acts as an accelerator that allows CAs to quickly cure in thick layers by enhancing the alkaline conditions during polymerization. INSTA-SET™ in a spray bottle is normally used to cure the CA that flows from joints when parts are pressed together. Applying an additional bead of thick CA along a seam and then curing it with INSTA-SET™ significantly enhances a joint’s strength. For difficult to bond materials, INSTA-SET™ can be applied to one surface and CA to the opposite surface. When brought together, they will bond instantly. INSTA-SET™ is formulated with a strawberry scent and activates CA in 6 to 8 seconds without any degrading of the CAs strength, which can occur with many other accelerators. It is compatible with all surfaces, even clear plastic and white foam.



Directions:

After joining parts with cyanoacrylate (CA, super glue), spray the seams with Insta-Set™ to cure the CA in 8 seconds. A bead of CA can then be applied to the outside and corners of joints before another application of Insta-Set™ to reinforce their strength. Insta-Set™ can also be applied to one part (with CA on the other) before joining for difficult to bond materials. Insta-Set™ is compatible with all surfaces, including clear plastic and all foams. It also is a great cleaning agent for adhesive residue and scuff marks. Store separately from CAs.



Works Best On:



Click to Download Safety Data Sheet

  • All Cyanoacrylates

BSI-AC-151

$5.99

BLS-H51B V2 HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS +Servo Arm (62.9kg/873.6oz, 0.09sec at 8.4V)

BLS-H51B HELICAL GEAR, HV-DIGITAL, MEGA TORQUE, HIGH SPEED, BRUSHLESS

BBR-BLS-H51B

$115.99
