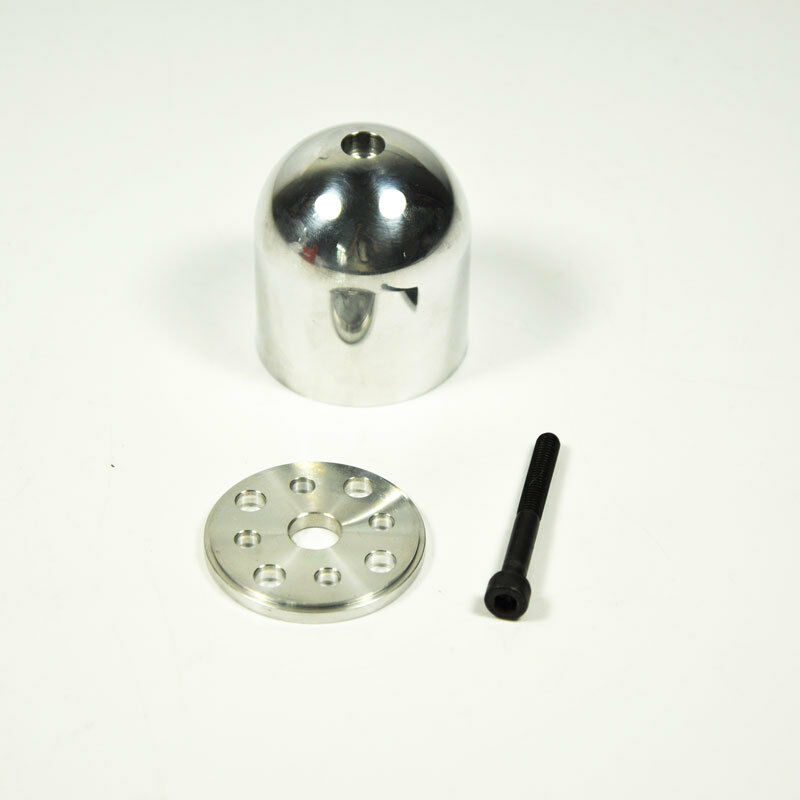

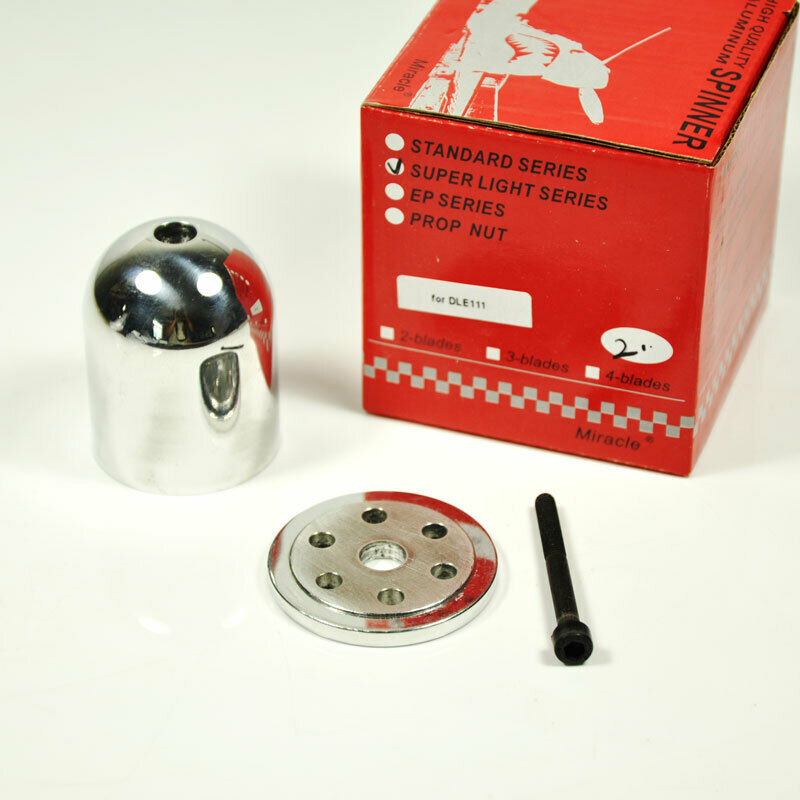

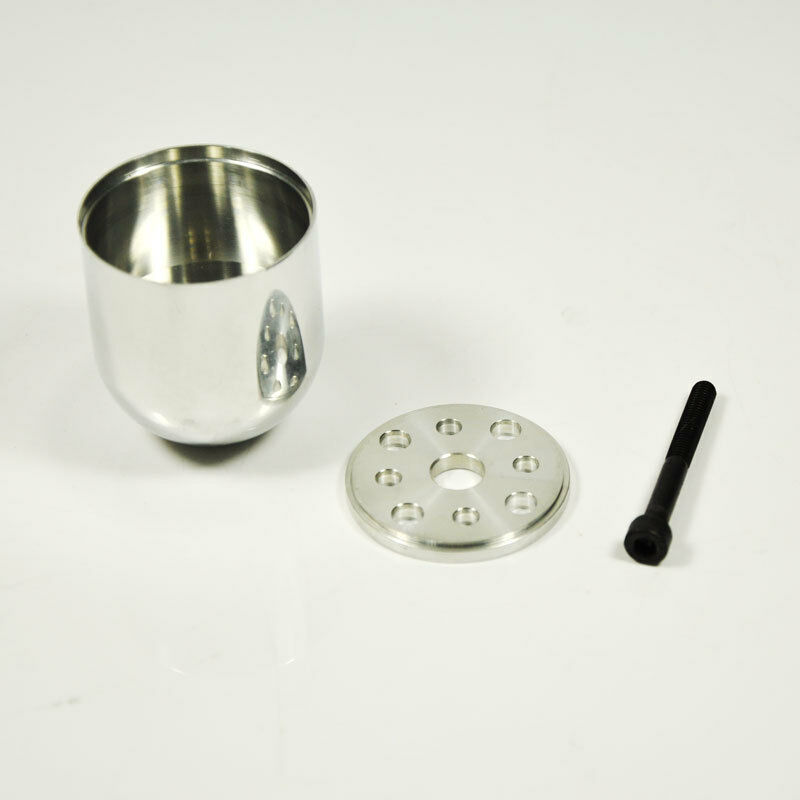

Miracle Drilled Aluminum Bullet Spinners for DLE MLD DA EVO and MVVS Engines

Miracle Universal Gas Engine Wrench

• Miracle Aluminum Alloy Wrench 14mm For CM6 Spark Plug and 3mm/4mm Hex Key for Gas Engine RC Airplane Model Parts

Description:
Our LiFe Batteries (also known as A123 Batteries) have huge advantages over most other options.

1) LiFe Batteries are lightweight - as light as Lipos
2) LiFes are safer than Lipos (do not combust easily like lipos)
3) LiFe Batteries supply a constant voltage (They stay right near 6volts from start to finish ensuring consistent flights)
4) Run Life batteries to your servos and ignition without regulators (For extra caution some people run a regulator to their ignition still)
5)Life's have a high Charging Capacity. Charge up to 5amps, allowing you to charge them up in MINUTES!

The 2100 or 3000 Mah can be used as a SINGLE battery system for 30cc planes. (we recommend spliting the lead and put 2 JR leads on, to run to the receiver and the other to ignition). You can also run a single 3000 Life Battery on a 50cc Plane.

The 1450mah LiFE Battery is a great option for those that want a separate battery for ignition and receiver (if you are running FM or hesitant to use a single battery system). The 1450mah Life is a great battery for the ignition for either a 30cc or 50cc sized plane

We recommend the following:
On the MXSR (2) 2100mah, or 1 3000mah placed on the mount box or front of the plane. It is a bigger plane and will do well with the extra voltage and weight.
Other 30cc planes - (1) 1450mah for ignition, (1) 2100mah for receiver or for a lighter set up
(1) 2100mah for both (split the wire to 2 leads) OR (2) 1450mah (one for ignition one for receiver).

50cc sized planes (1) 1450mah LiFe battery for ignition and (1) 3000mah LiFe battery for receiver or, for a lighter set up
(1) 1450mah for ignition, and (1) 2100 for receiver OR (1) 3000mah LiFe for both receiver and ignition



WATCH THIS VIDEO: Explains whether to use a regulator or not, 2 batteries or 1 for your plane, Redundancy and more.


Specifications:

• Type: LiFe Battery (same technology as A123)
• Weight:
  • 1450mah - 2.8oz,
  • 2100mah - 4oz,
  • 3100mah Life - 5.5oz
• Size:
  • 1450mah- 15mm x 34mm x 87mm,
  • 2100mah- 12mm x 50mm x 106mm,
  • 3000mah- 130mm x 45mm x 15m
• Voltage: 6.6Volts
• Discharge rate:
  • 20c maximum continuous
  • 40c maximum burst
• 2 cells (2s)
• 14gauge Wire
• Connectors: Two Options!
  • T Connector (T connector that fit a standard Dean)
  • XT-60 Connector. Choose Below
• Also a balancing lead

Be sure to select the XT connector if purchasing for use with our Power Box PRO's. Please select connector type: Deans or XT.


• 1450mah - $15.99
• 2100mah - $25.99
• 3000mah - $39.99


Description:

The Power HD LF-20 MG is excellent for a 30cc or 50cc plane. This Digital servo has metal housing around the middle which allows for the heat to rapidly dissipate. With double ball bearings you will have smooth movement and powerful torque when you need it. You cant beat the performance of this servo and at such a great price it's a no-brainer.

The Power HD LF-20 servos are a PERFECT Bargain servo with respectable performance. If you are looking for a top notch budget servo that has better centering and resonlution, you may consider the 8309/8312 Power HD servos, but for this price you won't find a better servo!

Specs:

• Torque:
  • 229.1 oz/in at 4.8V (16.5 kg/cm)
  • 277.7 oz/in at 6.6V (20.0 kg/cm)

• Speed:
  • .18 sec at 4.8V
  • .16 sec at 6.6V

• Voltage:
• Weight: 2.12 oz (60g)
• Size: 1.60 x 0.80 x 1.55 in ( 40.7 x 20.5 x 39.5 mm)

• Operating Voltage - 4.8 ~ 6.6 DC Volts
• Operating Temp- -20~60centigrade
• Working Frequency - 1520μs / 333hz
• DC Motor
• Middle Aluminum Casing With Plastic Top and Bottom
• Double Ball Bearings
• Copper & Aluminum Gears
• Wire length- 300cm

DLE Muffler Extensions

Description:

Choose from 5 sizes!

These extensions fit over the exhaust exits on your DLE muffler. Below are some size dimensions and the muffler that each will fit. It is still a good idea to measure the exits on your muffler.

FORMAT: LxW (width is inside diameter)

A: 63x15 mm : DLE 20RA

B: 64x17 mm : DLE 35RA/40

C: 78x20 mm : DLE 55RA

D: 96x25 mm : DLE 55, DLE 111, DLE 120

E: 121x31 mm : DLE 61, DLE 85

*Sold individually- if you have a twin engine, you will need two extensions

*Each Hose extension comes with a metal clamp to tightly secure it to the muffler.
