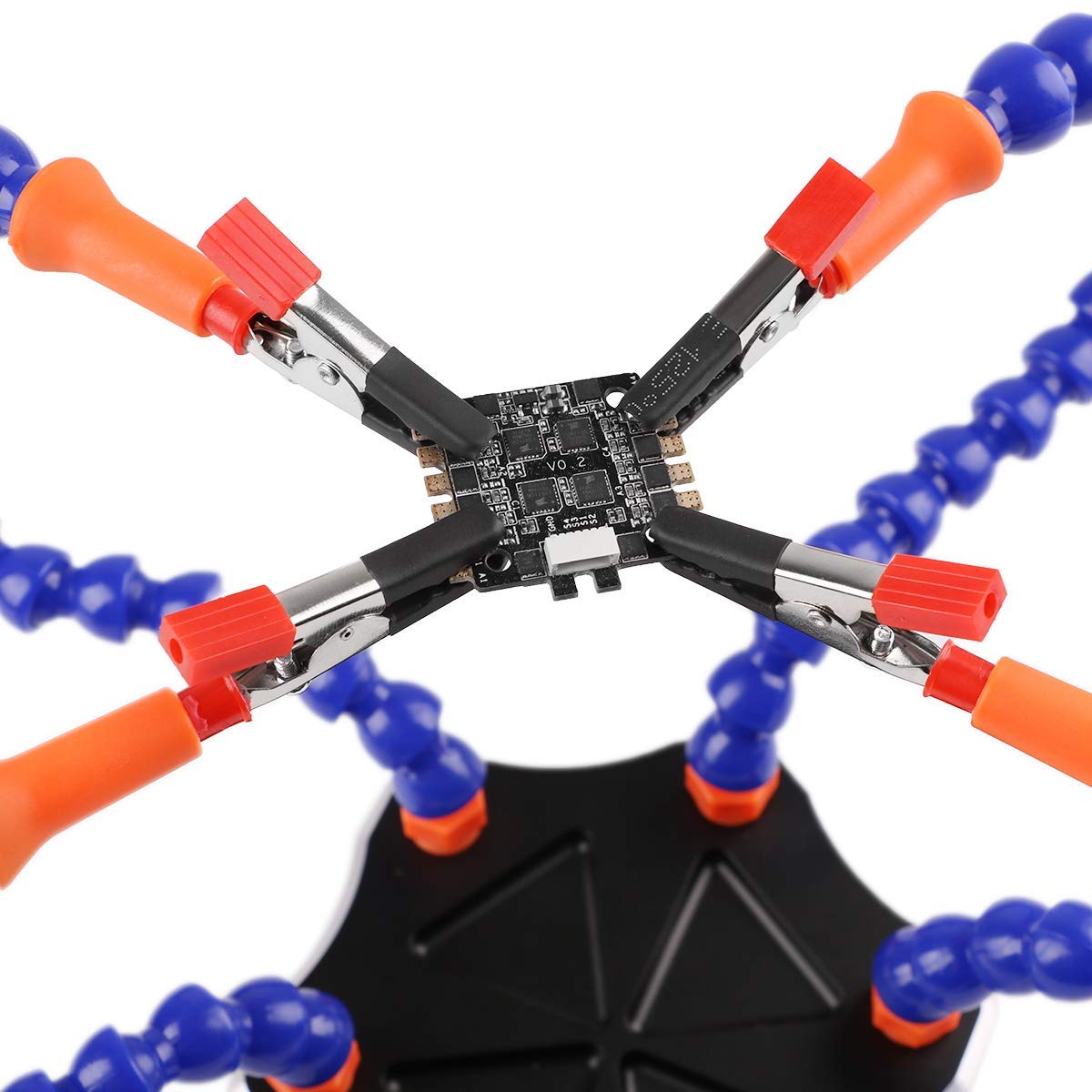

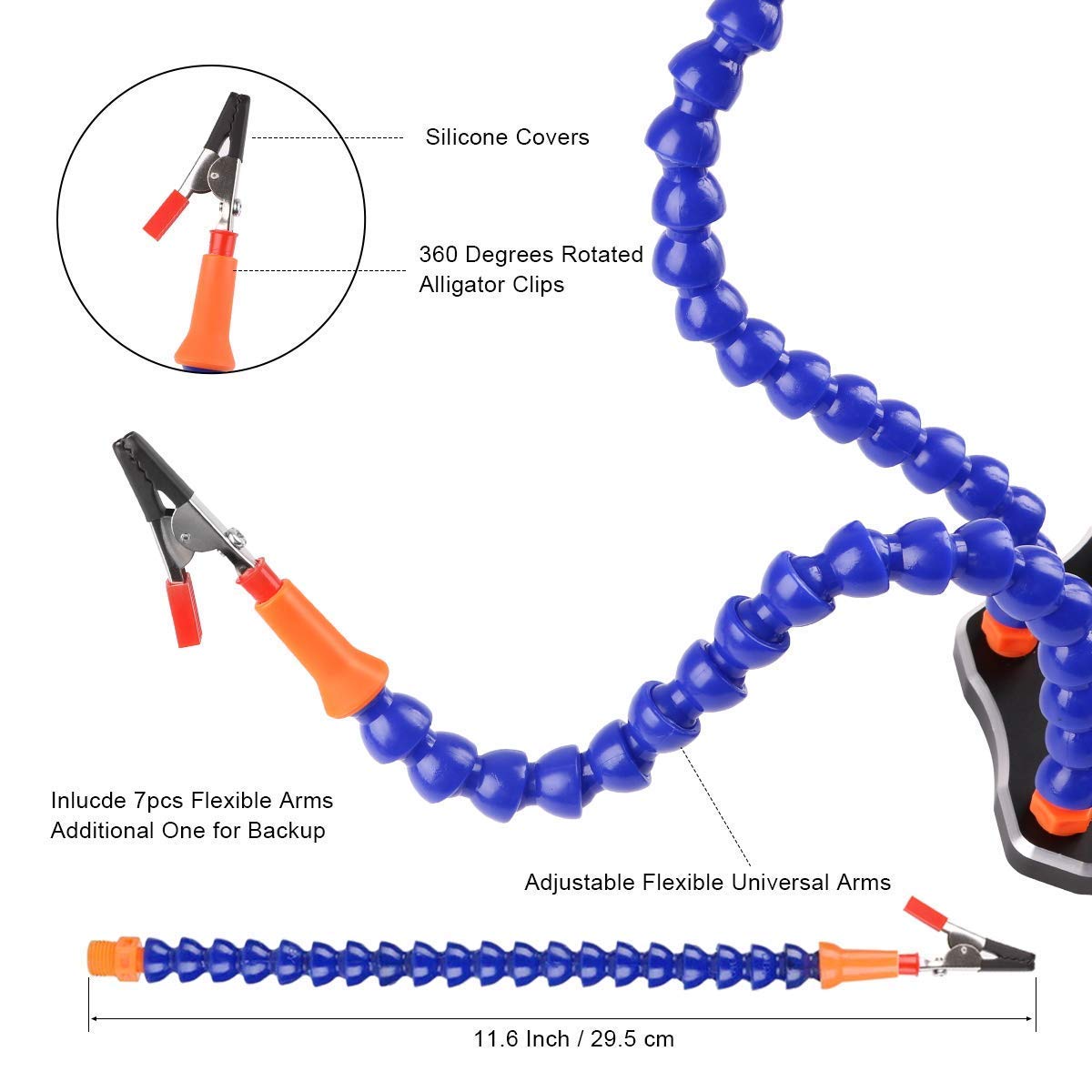

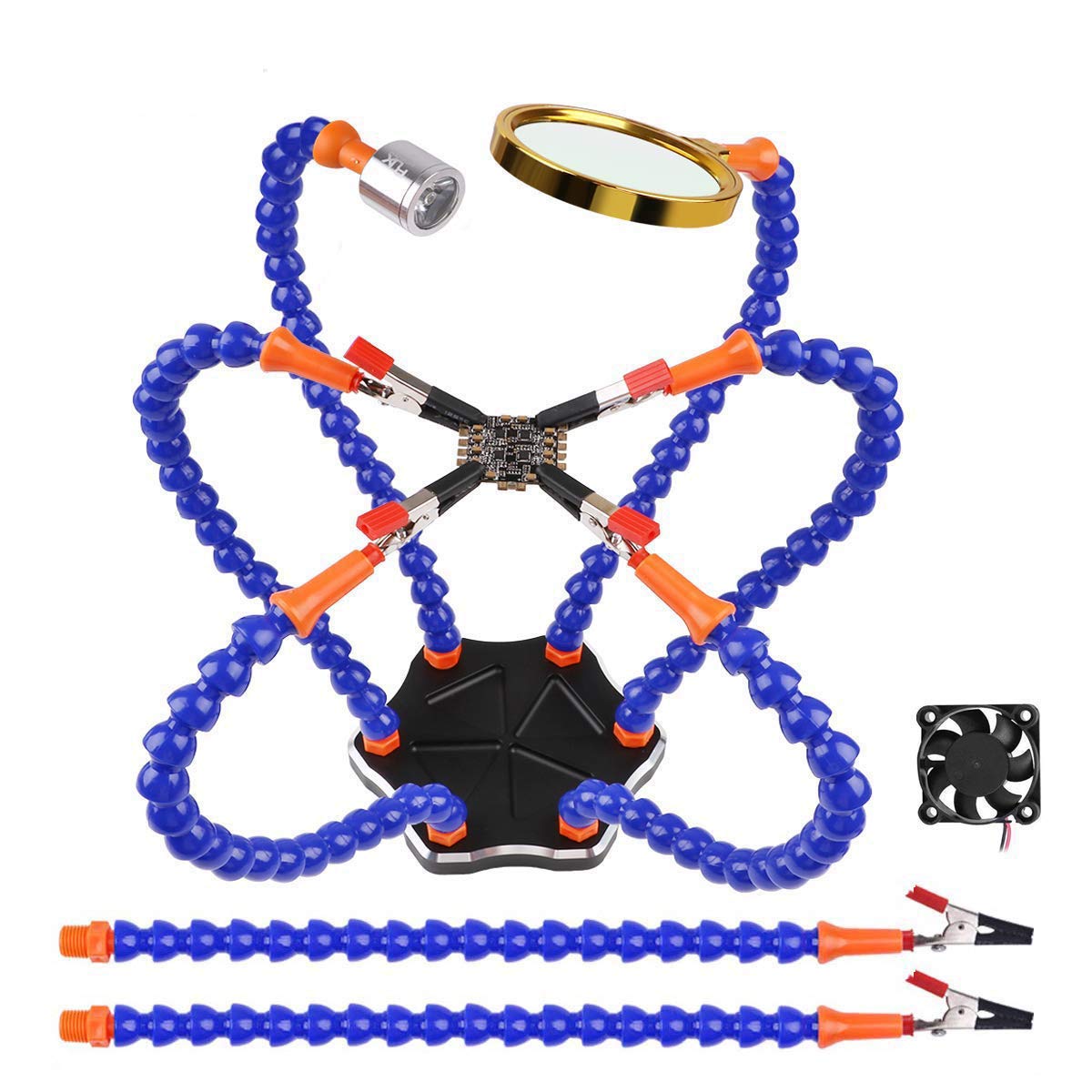

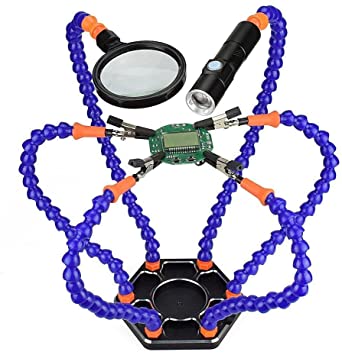

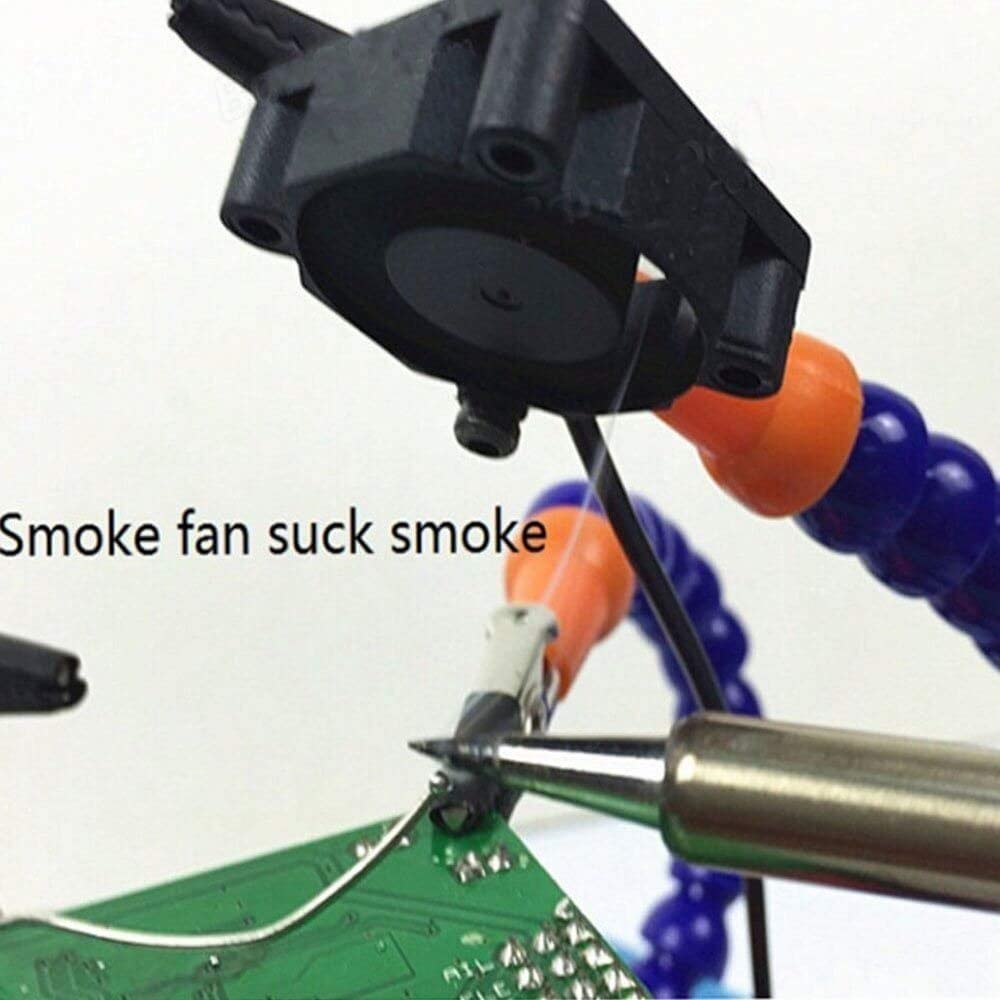

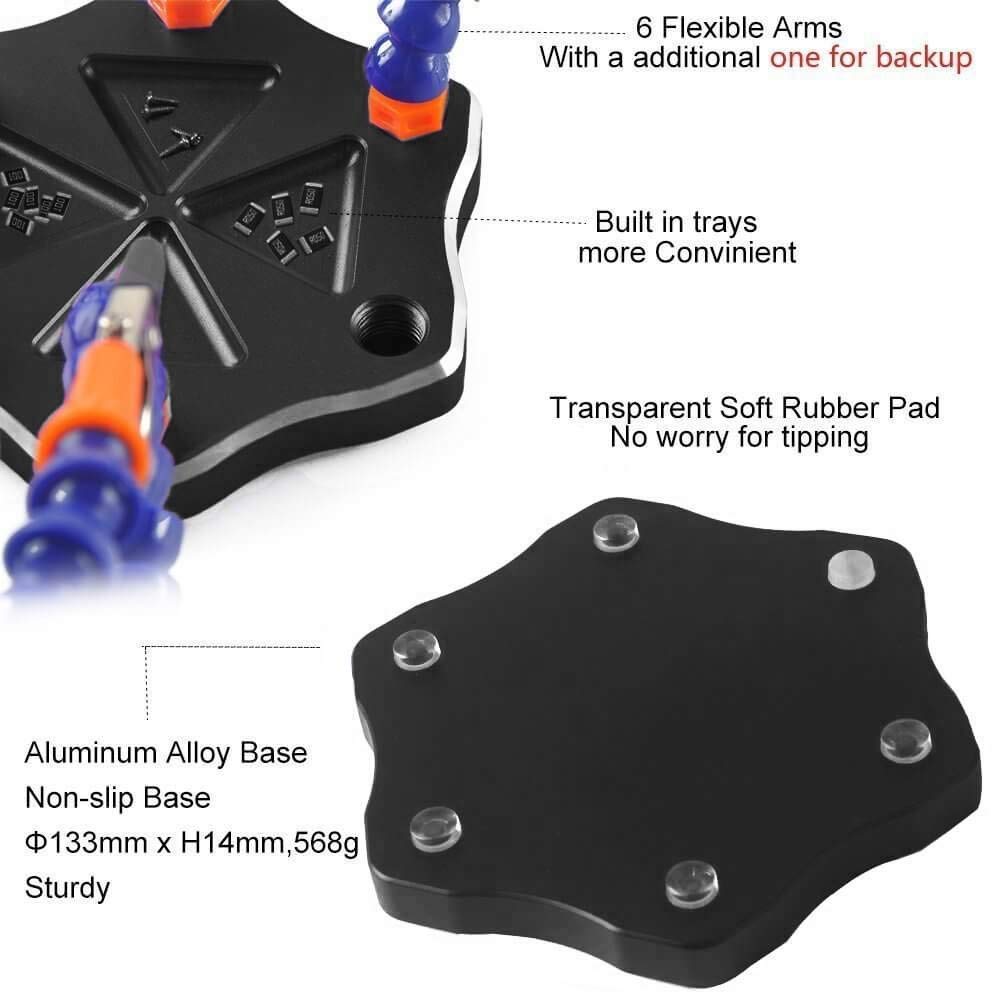

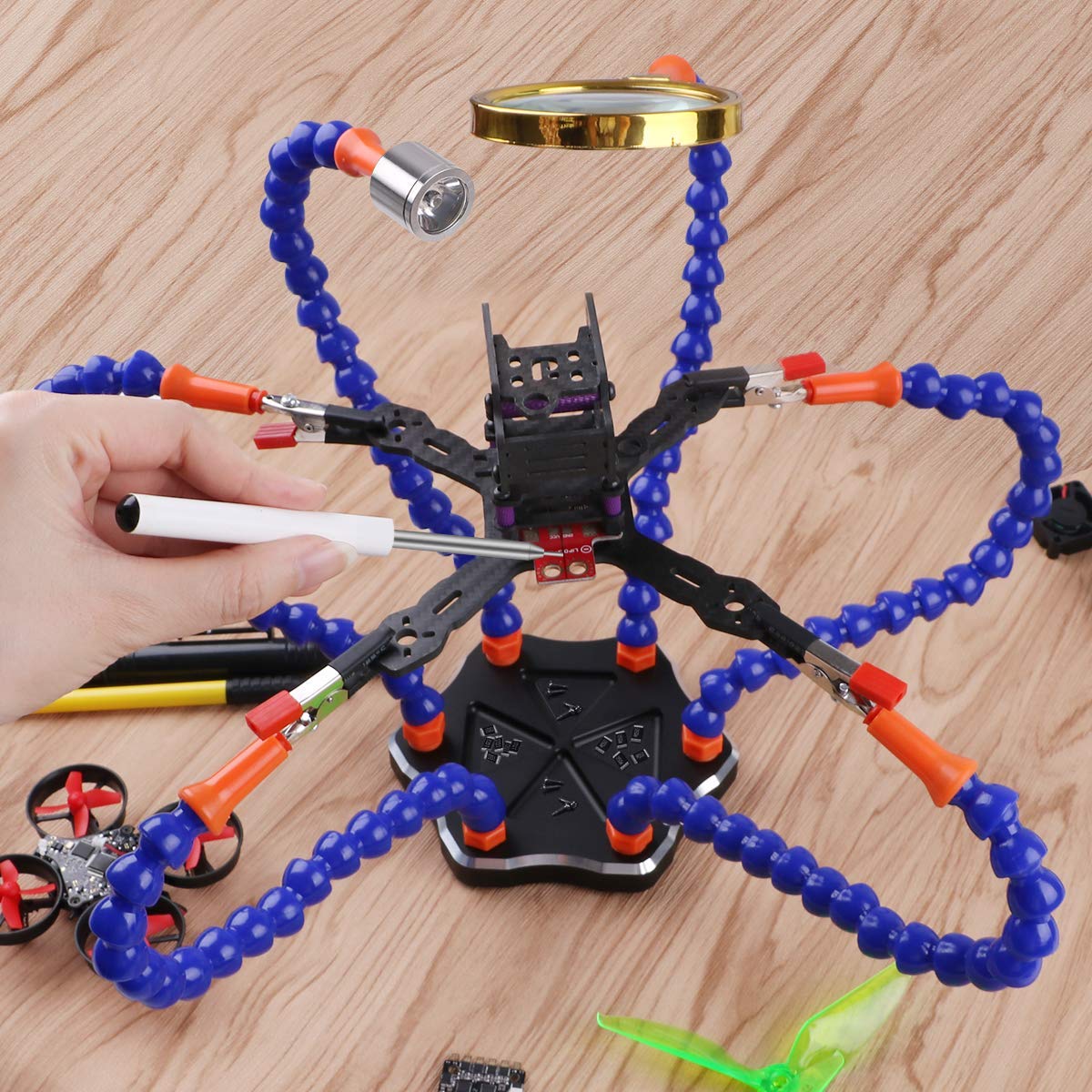

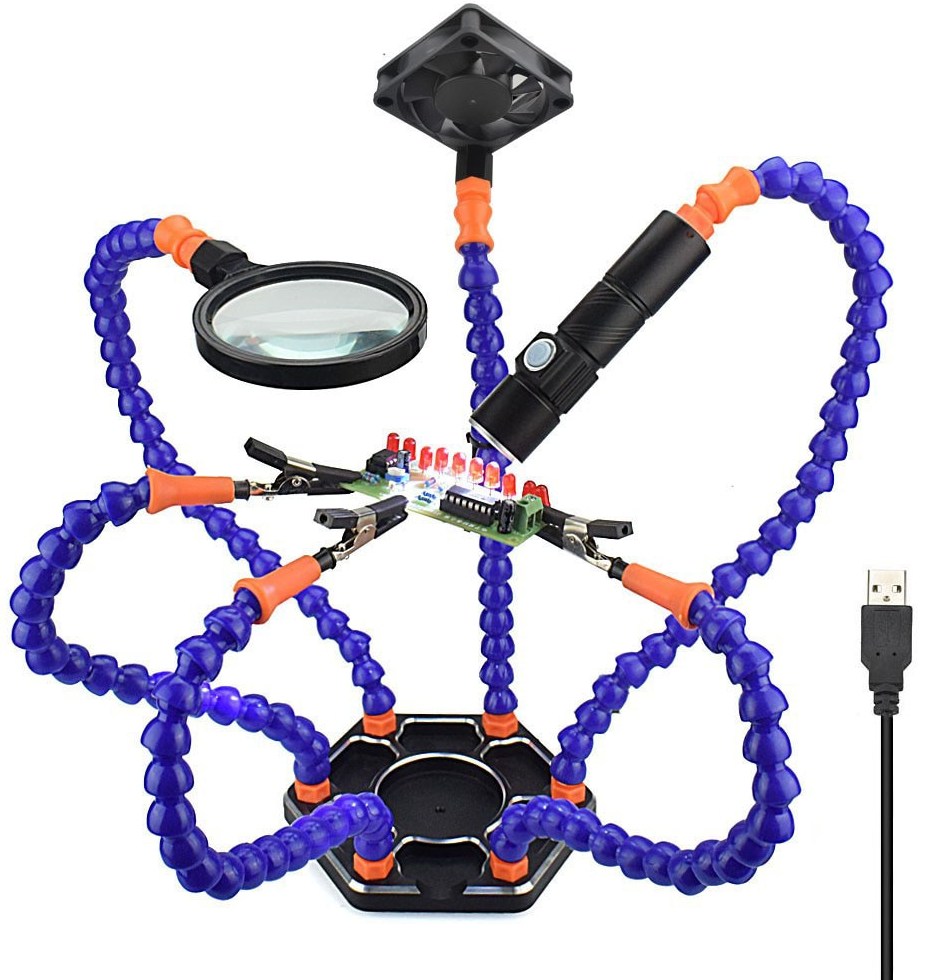

Helping Hands 6 Arm Soldering Station Tool (Magnifying Glass+Flashlight+Fan)

1/3 Scale Nieuport 28 (Giant Wingspan 111" 2825mm)

DE HAVILLAND TIGER MOTH SCALE 1:3,8 (wingspan 93" 2360mm)



FUTABA R7008SB 2.4GHz FASST 8-Channel High Voltage Receiver



































































































































































































Product Description

With 4 times the resolution of its predecessor, the Aurora 9, the Aurora 9X is sure to become a favorite among the most demanding pilots. It is HiTec's first triple protocol radio which allows selection from the G1 and G2 Adaptive Frequency Hopping Spread Spectrum (AFHSS) or Secure Link (SLT) 2.4GHz technologies. It features dual processors for fast low latency response and ultra-smooth 4096 resolution. With more than 30 additional programming enhancements and new dynamically assignable switches, it is sure to thrill sport and professional level airplane and helicopter pilots alike.



Features



• Built in AFHSS 2.4GHZ / SLTTM Module (Single / Bi-Directional Selectable)
• 4096 Resolution
• Improved Latency (Dual Processor 7ms Frame Rate)
• Vibration Mode
• Included Touch Screen Stylus
• Easy-to-Read, Easily Accessible 5.1-inch Wide Backlit LCD Touch Screen (320 x 80 Pixels)
• Customizable Menu
• One-Stop Model Type Setting
• 3 Multi-Tasking Digital Trims
• Fully Assignable Control Switches, Knobs, Sticks and Digital Trims
• Ultra-Smooth Quad Ball Bearing Gimbals
• Full-Size Comfortable Hand Grips (Top Quality Elastomer)
• Selectable 4 Different Control Stick Modes, Plus 2 Additional Manual Modes (Software)
• Easy Gimbal Mode Change and Tension Adjustment (Hardware)
• Power Management System (Adjustable Backlight & Auto Shut-off Time)
• Digital Trim Nano-Adjuster (200 Adjustable Trim Steps)










•
•
•
•
•
•
•

Standard Programming

• 9 Assignable Control Channels
• 3-Model Type Programming (ACRO/GLID/HELI)
• 30-Model Memory
• 20 Character Model Naming
• 8 Flight Conditions with 10 Characters
• Fail-Safe
• Channel Function
• EPA
• Dual Rate & EXP*
• Sub-Trim
• Servo Reverse
• Servo Speed (up to 25 sec. in each direction)*
• Servo Monitor (Monitor & Servo Test)
• 8 Programmable Mixes (5x 2-Point, 3x 7-Point Curves)**
• Trainer
• Throttle Lock

* Capable of a Maximum of 24 rates by 8 flight conditions and 3 switch positions
** Capable of a Maximum of 8 Rates by 8 Flight Conditions

1/4 Scale Landing Gear Undercarriage Set

Lemon RX DSMX/DSM2 Compatible 6-Channel Receiver /Top-Pin



















Description:

Lemon Rx DSMX Compatible 6-Channel Receiver with Diversity Antenna



Type:	DSMX Compatible Full Range Receiver with Diversity Antenna
Number of Channel:	6
Modulation:	DSMX Compatible (Also DSM2 backward Compatible)
Band:	2.4 GHz
Dimension:	25(L) x 18(W) x 11(H)  mm
Weight:	4.7 grams
Voltage Range:	3.45 - 8.4 V



How dual antennas work

An independent processor monitors an incoming signal and choose the appropriate antenna for reception. This allows 2 different location for installing the antennas along with different orientation. Satellite is no longer needed for receiver diversity. This greatly reduces weight with increased overall reliability in comparison to the use of a primary receiver with satellite receiver.

Photo showing below is the diversity receiver for end-pin stabilizer. The same diversity receiver is also used in this product.

Highlight
- True diversity dual antennas with independent processor for monitoring singal on both antennas
- Antennas extended for carbon fuselage / metalic structure installation
- FailSafe for all channels via press of a button
- DSMX Satellite port

Understanding the receiver (Showing DSMX 6-channel non-diversity receiver)

Binding Setup

1. Plug bind plug to the receiver.
2. Provide power to the unit. LED flashes quickly.
3. Enable bind mode in transmitter and ensure distance separation of 2 meters from receiver. Solid LED light means binding is completed.
4. Remove bind plug.

Failsafe Enable (Video showing 10-Channel receiver)

1. Plug bind plug to the receiver.
2. Provide power to the unit.
3. Plug the side pushbutton for memorize current position in Failsafe mode.
4. Green light will turn on at the bottom of the receiver to indicate Failsafe is successfully enabled.
5. Remove bind plug.



Failsafe Disable (Video showing 10-Channel receiver)

1. Rebind the receiver without pressing the side pushbutton will disable the Failsafe mode.
2. Green light off indicates Failsafe disabled.
