FrSky X20 Tandem 2.4GHz Transmitter Bundle (Blue) w/R8 Pro & R9MX Receiver

FrSky X20 Tandem 2.4GHz Transmitter Bundle (Blue) w/R8 Pro & R9MX Receiver

Tandem X20 Series of radio control systems from FrSky is one of the few radios available that incorporates a dual band frequency system, 900MHz, and 2.4GHz. Boasting features such as telemetry, color touch screen display, and great ergonomics, the X20 will surprise many with the value it provides to pilots. The TD dual-band RF system is characterized by true simultaneous dual-band remote control with telemetry, and superb end to end 4ms extreme low latency performance. When combined with ETHOS, a completely new radio operating system, FrSky’s Tandem X20 Series provides users with a powerful, intuitive, and flexible experience to enjoy across the entire world of radio control.

Radio design was top priority for FrSky. Several main points of focus were critiqued greatly during inception, and those methodologies are detailed below.

Promotional Bundle Details: As an initial release campaign, FrSky has included a R8 Pro and R9MX receivers in the box, which provide an overall discount if these items were all to be purchased separately. Future availability of the X20 Tandem radios will not include a bundled savings - act fast - supply is limited!

Hardware Design

The overall weight of Tandem X20 Series has been kept low, less than 1000 grams (~35 ounces), by incorporating the use of light-weight materials while maintaining a strong and robust quality. The radio system comes with an 800 x 480-pixel color touch screen display on the top area of the radio which is easy to read indoors and in direct sunlight outdoors.

The Tandem X20 Series has been complemented with 6 customizable buttons on the front lower case area that allows for quick switching between features, ideal to be used for flight modes, or anything you can dream of. An additional 2 rear momentary buttons have been introduced to provide flexibility, in the ideal position for DLG pilots launch fingers no matter if you are left or right-handed.  All the trims and pots adopt the CNC metal hardware that makes the radio more endurable.

Ergonomics

The two side handle grips of Tandem X20 Series are made with a high-quality comfortable material, designed ergonomically to fit the hand very well. Both hall-gimbals are well-positioned which makes the sticks very close to the grip edge allowing for ease to reach and control. Lastly, stick tension can be adjusted via the internal springs.

Internal 900MHz/2.4GHz Dual-Band & External Module Bay

The TD dual-band RF system combines both the features and advantages of FrSky 900MHz and 2.4GHz RF together in one system. The TD features real simultaneous dual-band long-range control with telemetry that achieves reliable end-to-end 4ms latency while maintaining a robust and high-quality signal link. The entire range of TD, ACCESS & ACCST D16 receivers are all supported. The built-in TD RF System supports ACCESS and ACCST D16 protocols.

In addition, the Tandem X20 Series includes a rear Lite version module bay to offer more options to connect external devices.  The external Lite module bay supports R9M Lite, R9M PRO Lite, XJT Lite, etc. FrSky welcomes working compatibility with the 3rd party products with their own developed technology following FrSky verified 3rd party compatibility-testing program.

ETHOS Operating System
ETHOS, as a thoroughly new operating system, designed from the ground up by RC experts, grants users a powerful, intuitive, and flexible experience that can maximize the fun of RC Hobby!

Features:

• Built-in TD 900M/2.4G Dual-Band Internal RF Module Supports Multiple Working Modes:
  • 2.4G ACCST D16Mode (Compatible with ACCST Receivers with D16 V2 or later FW)
  • 2.4G ACCESSMode (Compatible with ACCESS Receivers)
  • 900M ACCESS Mode (Compatible with ACCESS R9 868/915MHz Receivers)
  • 2.4G & 900M TD Mode (Compatible with TD Receivers)
• Super-low latency and long-range control with telemetry
• 800 x 480 Color Touch-Screen Displays
• 6 Quick-Mode Custom Buttons (Front) and 2 Momentary Buttons (Rear)
• Lite Type External Module Bay
• Built-in 6-axis Gyroscope Sensor
• All CNC Metal Trims, Knobs
• Haptic Vibration Alerts and Voice Speech Outputs
• Supports SWR Indicator Warning
• Supports Recharge System for 2S Li-ion Battery (USB Type-C Interface)
• High-speed PARA Wireless Training System (Compatible with FreeLink App3.0)
• High-Precision Hall-Sensor Gimbals with Metal Panel
• ETHOS: The more powerful, Flexible and Intuitive OS for your radio.
  • Clear and Intuitive UI Design
  • Supports Dual Operation Modes of Radio Display (Touch and Non-Touch)
  • Supports Multi-Language Switching
  • Hardware/Software Version and Factory Version Detection
  • Supports running LUA Scripts

Specifications:

• Dimension: 212x200x95 mm (L x W x H)
• Weight: 809g (without battery)
• Operating system: ETHOS
• Internal RF module: TANDEM
• Number of Channels: 16/24 channels
• Operating Voltage Range: 6.5 ~ 8.4V (2S Li-battery)
• Operating Temperature: -10°C~60°C (14°F~140°F)
• Operating Current: [email protected]
• Charging Current: 1A ±200mA
• USB Adaptor Voltage: 5V+0.2V
• USB Adaptor Current: >2.0A
• Backlit touchable LCD resolution: 800x480
• Compatibility: ACCST D16 & ACCESS & TD receivers


Includes:

• (1) X20 Transmitter
• (1) R8 Pro Receiver
• (1) R9MX Receiver
• (1) 2S Li-ion Battery

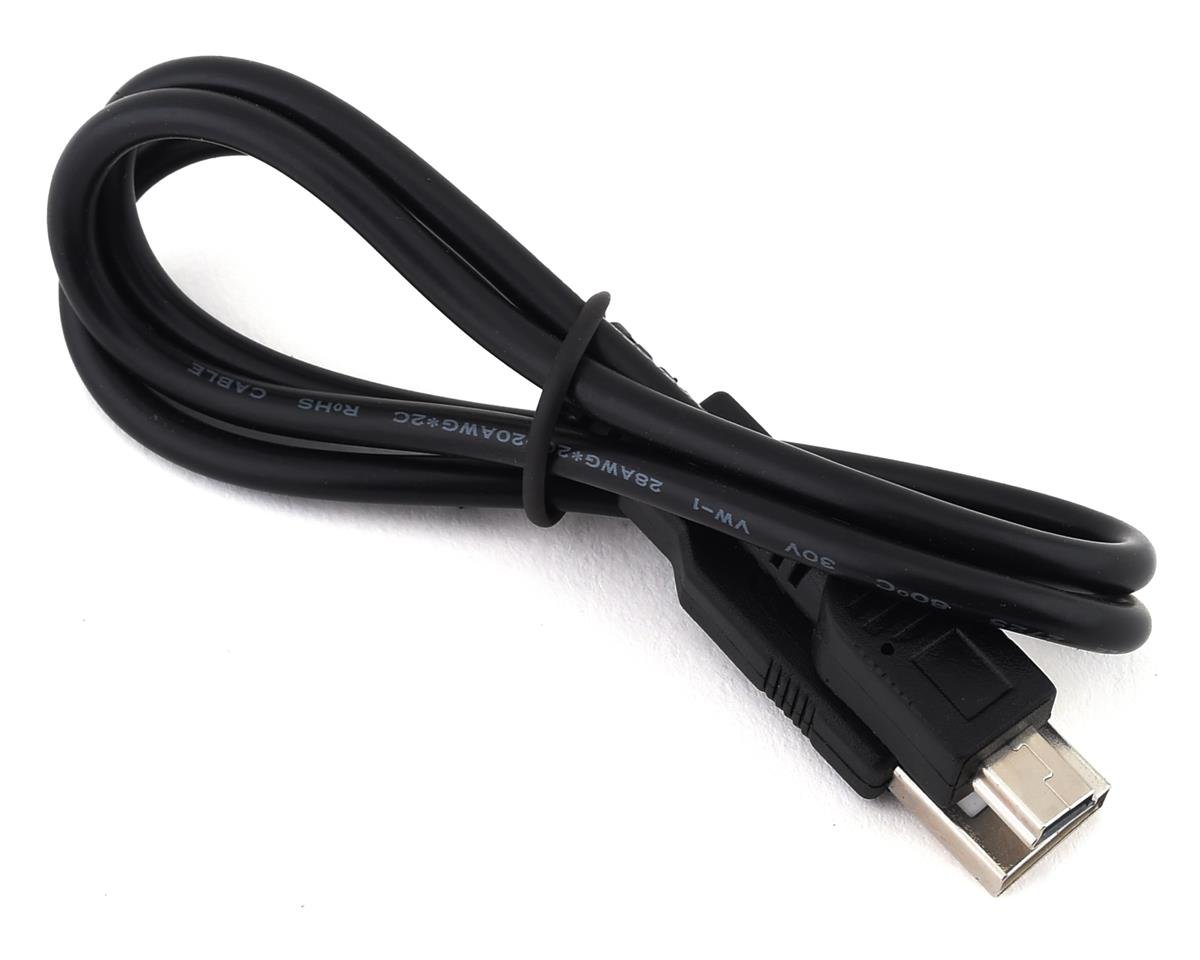

• (1) USB Charge Cable

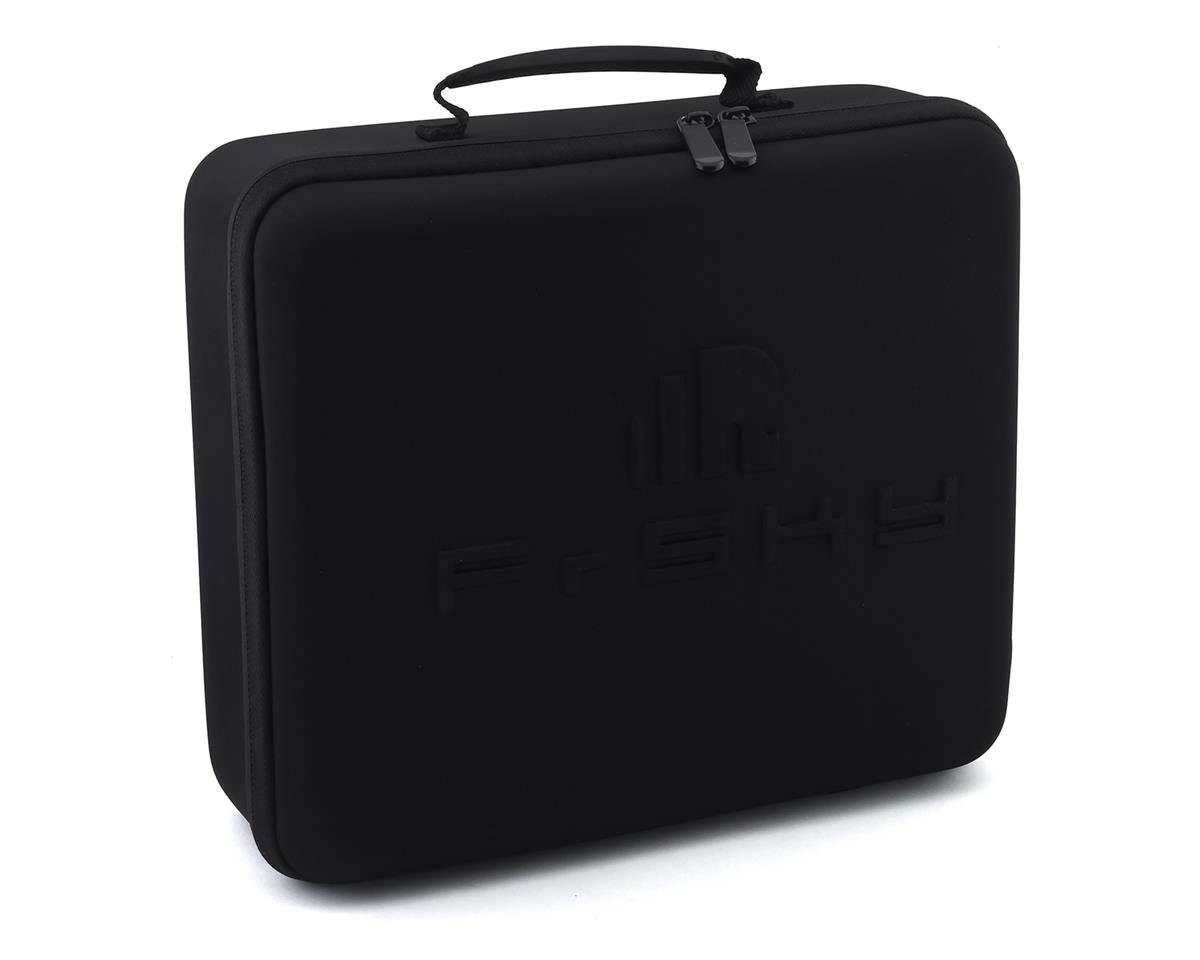

• (1) Carrying Case
