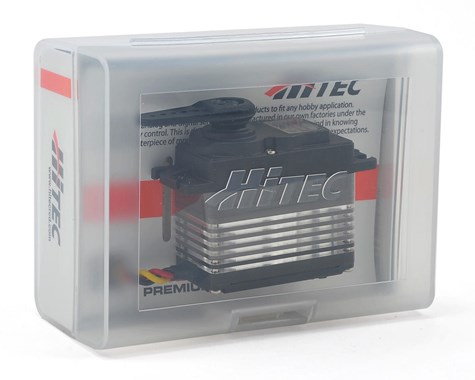

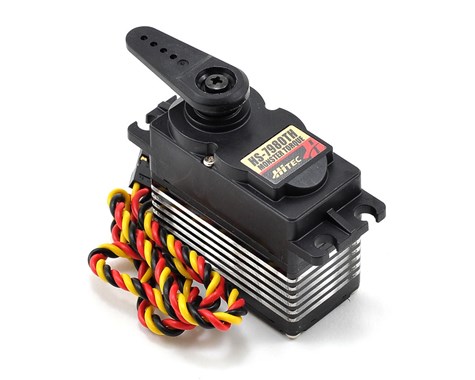

HiTec HS-7980TH Mega Torque High Voltage Coreless Titanium Gear Servo

more offers

HiTec HS-7980TH Mega Torque High Voltage Coreless Titanium Gear Servo

Ask a question about this product

Printable version

Options

Market Price: $309.95

Our Price:

$174.99

You Save

44%

Quantity

OUT OF STOCK

Notify me when back in stock

Details


Availability	No items available
Weight	0.38 lbs
SKU	HRC37980S
Manufacturer	Hitec

Replaced with HS-M7990TH High Voltage, Mega Torque, Magnetic Encoder Ultra Premium Servo .17sec/611oz @ 7.4v

This is a special order item and is subject to manufacturer availability.
Please allow a minimum of 2 weeks for delivery.
No returns or cancellations allowed.

email us at [email protected] for ordering

------------------------------------------------------------------------------------

This is the Hitec HS-7980TH Mega Torque High Voltage Digital Servo, and is intended for use with any high performance giant scale aircraft, truggies and buggies, fast power boats, the largest aircraft, monster trucks or anywhere else you can use 600+ inch ounces of torque in.

Hitec's strongest servo period, the "Monster Torque" HS-7980TH is designed to operate on a two cell LiPo Pack. Featuring the high resolution "G2.5" 12 bit generation programmable digital circuit and indestructible Titanium gears, The HS-7980TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7980TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

Features:

G2.5 12 bit Digital Programmable Circuit
Titanium Gear Train (MK first gear)
Ultra Performance Coreless Motor
Integrated Heatsink Case
(8) O-Rings for Water/Dust/Fuel protection
Dual Ball Bearing Supported Output Shaft
10% larger than a HS-7955TG

Programmable Features Include:

Dead Band Width
Direction of Rotation
Speed of Rotation (slower)
End Points
Neutral Points
Fail Safe On/Off
Fail Safe Point
Overload Protection* (default is off)

Note: These features are only programmable with the HFP-20, HPP-20 or HPP-21 programmers.

Specifications:

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed:
- @ 6.0V: 0.20 sec/60 °
- @ 7.4V: 0.17 sec/60°
Torque:
- @ 6.0V: 500 oz/in (38.0 kg./cm)
- @ 7.4V: 611 oz/in (46 kg./cm)
Dimensions: 1.72x0.88x1.57 in (43.69x22.35x39.88mm)
Weight: 2.70 oz (76.54g)

DLE 35RA Engine

+ Free Shipping (Continental US only!) If international customer, please contact us for shipping quote. You will be charged separately for shipping.
+ Free 2 Year warranty

Description:
High performance in a compact package!

The DLE-35RA features a rear exhaust for the perfect tuned pipe setup. It also includes a newly designed piston with re-engineered skirt for less piston weight - resulting in such advantages as awesome throttle response, more power and longer engine life. Producing 400 more rpm than the DLE30, the DLE-35RA comes with engine standoffs, electronic ignition, spark plug and muffler.

Download DLE 35RA Mounting Template
Download DLE 35RA Manual Coming Soon

Specifications:

Displacement: 34.9 cc (2.13 cu in)
Bore: 1.5 in (38.5 mm)
Stroke: 1.17 in (35RA mm)
Weight: 2.6 lb (42oz)
RPM Range: 1,600-8,500
Output: 4.1 hp @ 8,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension
Suggested Propellers: 18x6, 18x8, 19x6, 19x8, 20x8, 20x6
Suggested Break-in Prop: 18x6
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.6 oz (60 g); Ignition: 5.2 oz (120g)
Recommended Propeller: Redwing RC 3d Props - type 19x6 19x8 20x6 20x8 Propeller

DLE-35 RA

$379.00 379.00

DLE 55cc Engine

+ Free Shipping (Continental US only!) If international customer, please contact us at [email protected] for shipping quote. You will be charged separately for shipping.

Description:
The DLE 55 is a tried and true engine in the 50cc class size. It is the best bang for the buck, and offers great reliability, power and weight ratio. Comes with all high quality components, includes all hardware (standoffs, ignition, muffler, spark plug, etc). The DLE 55cc is a perfect choice for our 50cc class airframes

Download DLE 55cc Mounting Template
Download DLE 55cc Manual

Specifications:

Displacement: 55.6 cc (3.392 cu in)Manifold: 4-petal, V-type, reed-valve, bottom induction
Bore: 1.77 in (45 mm)
Stroke: 1.38 X in (35 mm)
Weight: 3.6 lb (1.65 g)
RPM Range: 1,350-8,500
Output: 5.5 hp @ 7,500 rpm
Requires: unleaded gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 23x8, 24x8
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo use requires voltage regulator.)
Compression Ratio: 7.6:1
Gas/Oil Mix: Break in with Lawn Boy(or similar non synthetic oil) at 32:1 Ratio per gallon / Use RedLine oil at 50:1 for long term use after break in.
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (Individual): Engine: 47.6 oz (1,350 g); Exhaust: 3.5 oz (100 g); Ignition: 4.2 oz (120 g)
Recommended Propeller: Redwing 23x8, 24X8. 23x8 is a nice mix of 3d and sport. The 24x8 is more 3d
