Bert Kammerer MICRO SIZE CYCLIC SERVO DS-3001HV

Contact UsCustomer Reviews

Bert Kammerer MICRO SIZE CYCLIC SERVO DS-3001HV

Our Price:

$65.00


Quantity

OUT OF STOCK


Availability No items available
Weight 0.35 lbs
SKU PRS-BKMI01

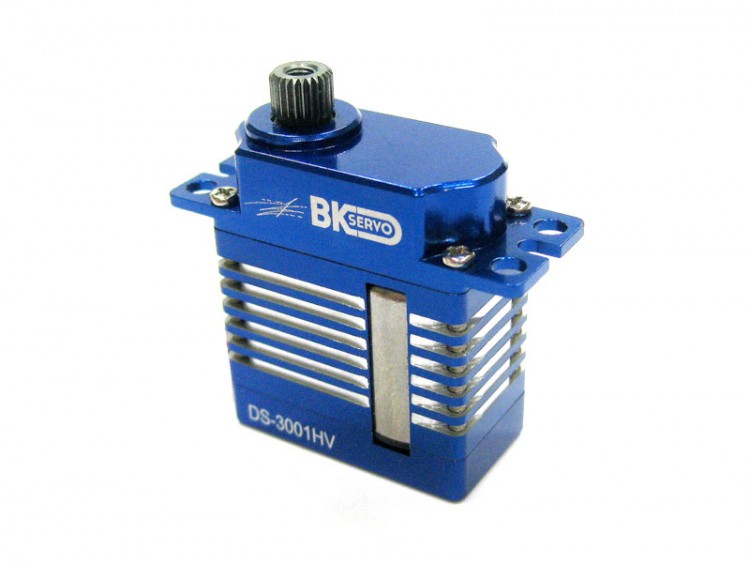

Are you looking for the ultimate micro servo? A servo that is not only high voltage compatible, but that can be used on ANY small helicopter, using blades ranging from 325mm to 380mm? Then look no further, the new DS-3001HV micro servo has more torque than any other servo in its class, it is very fast and fits on any "450 Class" helicopter.

 Features:

 - Full HV Micro Servo
 - Incredible Torque
 - High Speed
 - Excellent Centering
 - Unique CNC Case Design
 - Light Weight

Specifications

Operation Voltage: 6 - 8V

 - Weight: 20g (0.71oz)

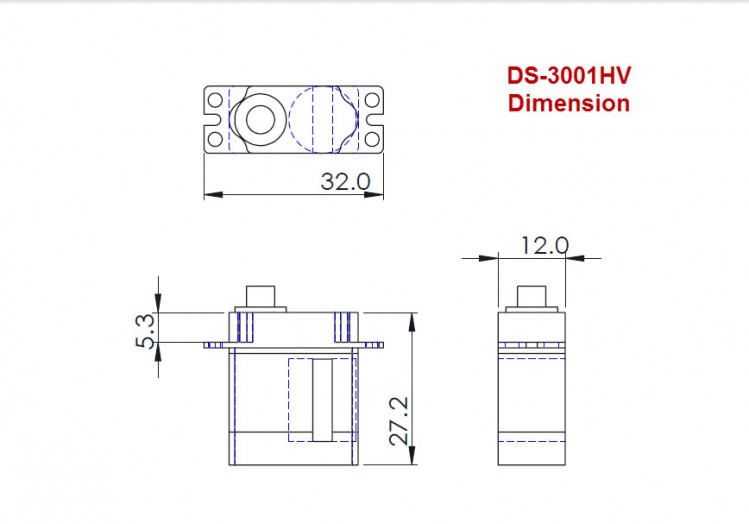

 - Dimensions: 12x23x27 mm
 - Frequency: 1520us/333hz
 - Gear Type: Metal
 - Motor Type:  Coreless



Speed:
 - 0.09 sec/60 @5V
 - 0.07 sec/60 @6V
 - 0.06 sec/60 @7.4V



Torque:
 - 3.68 kg/cm (51.1 oz/in) @5V
 - 4.7 kg/cm (65.3 oz/in) @6V
 - 5.8 kg/cm (80.5 oz/in) @7.4V



Micro Servo for Forward Canard on the KR84 Tortuga Jet and Goblin 380 Flight with BK Servos

: *
: *
: *
