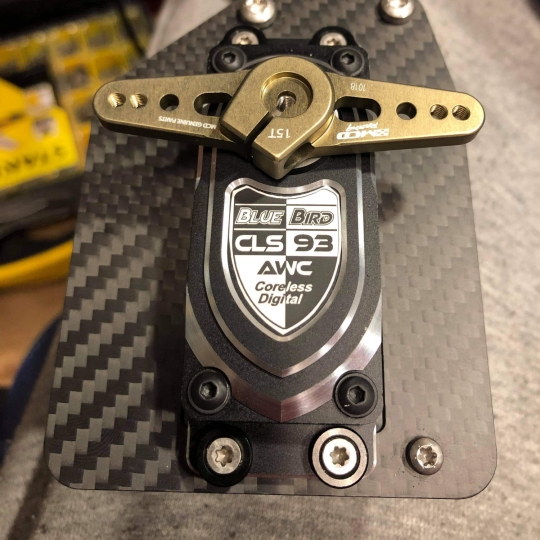

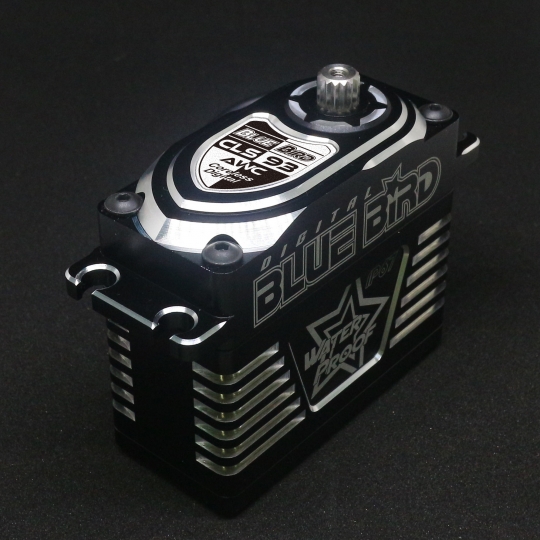

CLS-93AWC Water Proof, ULTRA MEGA TORQUE, Coreless+Servo Arm (New generation Extra Large Servo-93.3kg/1295oz .13sec @8.4V)

Ask a question about this product

Printable version

Options

Market Price: $168.99

Our Price:

$159.99

You Save

5%

Quantity (3)

Details


Availability	3 in stock
Weight	0.80 lbs
SKU	BBR-CLS-93AWC
Manufacturer	Blue Bird

CLS-93AWC Water Proof, ULTRA MEGA TORQUE, Coreless+Servo Arm (New generation Extra Large Servo)--Blue Bird's most powerful 1/4-1/5 scale Monster Truck/Crawler/Large Boat servo at over 1250oz!!

Water Proof IP67 (Ingress Protection Rating, 6=Dust Tight, 7=Immersion up to 1Mfor 30 min)

Features:

★Soft Start Protection
★Over Voltage Protection
★Low Voltage Protection
★Locked Rotor Protection
★Temperature and Loss of signal Protection

APPLICATION / SUITABLE

Perfect for Giant Scale 1/4 & 1/5、Buggy (Off-road), GT (On-Road), Monster Truck, Rock Crawler and Large Boats

ELECTRICAL SPECIFICATION (FUNCTION OF THE PERFORMANCE)

Torque At 6.0V	72.2 kg-cm / 1002.8 oz-in
Torque At 7.4V	87.5 kg-cm / 1215.4 oz-in
Torque At 8.4V	93.3 kg-cm / 1295.9 oz-in
Speed At 6.0V	0.19 sec / 60°
Speed At 7.4V	0.15 sec / 60°
Speed At 8.4V	0.13 sec / 60°

PROTECTION MECHANISM

Soft Start Protection	Soft start to neutral position.
Over Voltage Protection	Over 9.0V drive the protection mode and 8.4V return to normal mode.
Low Voltage Protection	Lower than 4.0V, drive the protection mode and 4.5V return to normal mode.
Locked Rotor Protection	Stall in 5 sec, output torque goes down.
Temperature and Loss Signal Protection	Overheat 85 degree C, drive the protection mode and down 75 degree C return to normal mode.

POWER SUPPLY

Operating Voltage Range

4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe)

CONTROL SPECIFICATION

Control System	32-Bits CPU Digital Controller / AD 12-Bits ( 4096 Steps )
Dead Band Width	0.002ms ( 2us )

MECHANICAL SPECIFICATIONS

Ball Bearing	Dual, Stronger Steel Bearings 1 piece oil sealed
Gear	Stainless Steel Output Gear with All Steel Gears

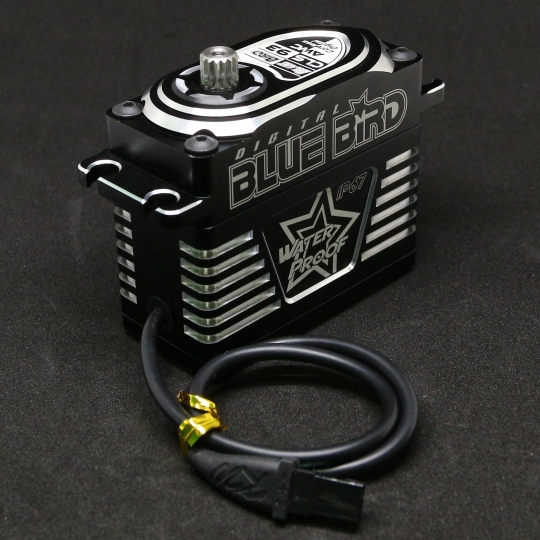

Cable	300mm(~12") Black Cased Cable
Motor	High Efficiency Coreless Motor

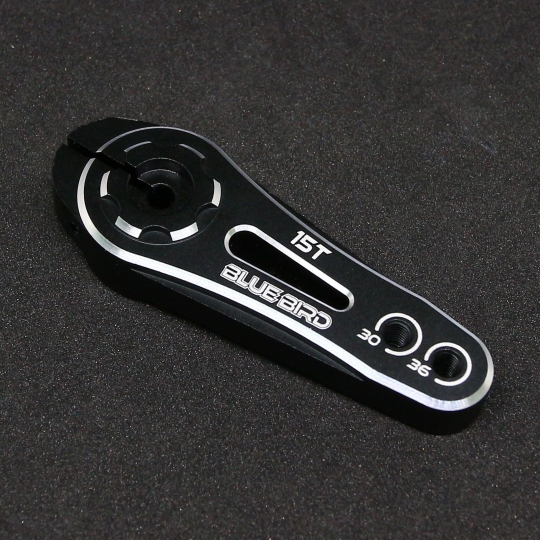

Horn / Gear Spline	15 Teeth ( Universal Type )
