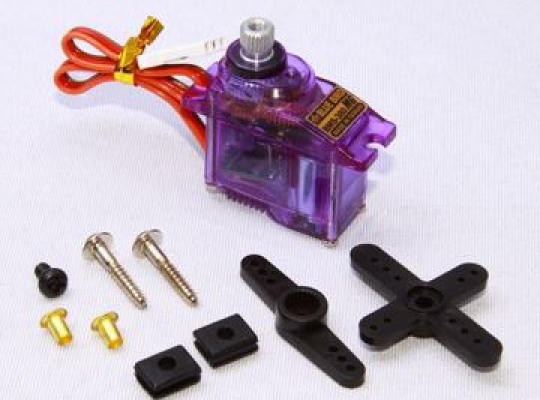

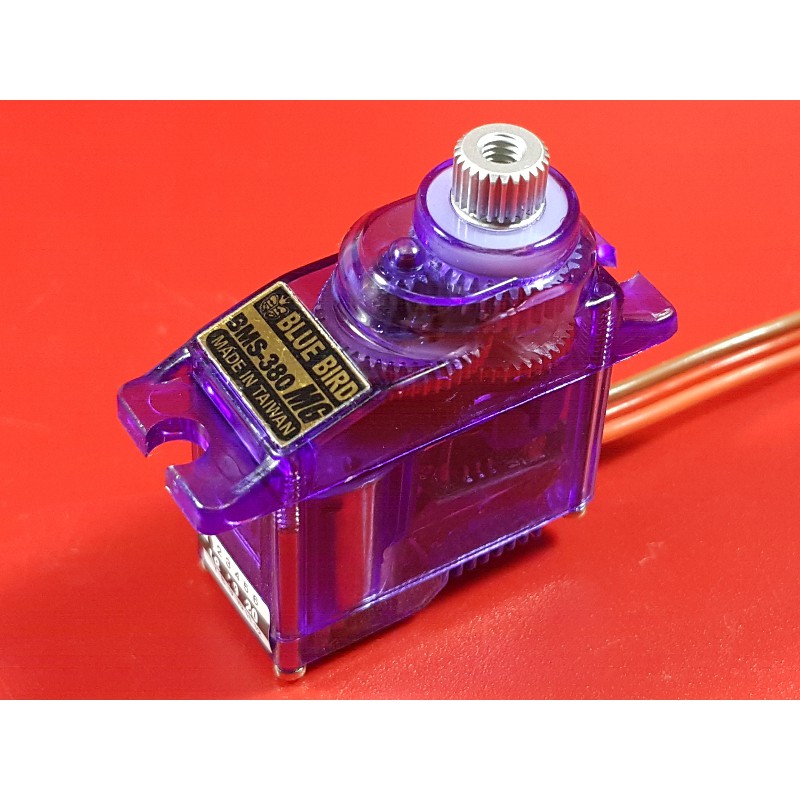

BMS-380MG, Micro, Metal Gear [email protected] kg / 58 oz [email protected] sec

Ask a question about this product

Printable version

Options

Market Price: $22.99

Our Price:

$14.99

You Save

35%

Quantity (20)

Details


Availability	20 in stock
Weight	0.10 lbs
SKU	BBR-BMS-380MG
Manufacturer	Blue Bird

BMS-380MG, Micro, Metal Gear [email protected] kg / 58 oz [email protected] sec

APPLICATION / SUITABLE:

Airplane, Glider, Heli, Foam, Indoor Flying

SPECIFICATIONS

Torque At 4.8V	3.6 kg-cm / 50 oz-in
Torque At 6.0V	4.2 kg-cm / 58 oz-in
Speed At 4.8V	0.15 sec / 60°
Speed At 6.0V	0.14 sec / 60°

MECHANICAL SPECIFICATIONS

Motor	Brushed Analog
Gear	Metal Gears
Horn / Gear Spline	25 Teeth ( Same as F-Type )
Cable Length	140 mm ( 5.5 in )

Connector

Universal Connector ( J-Type )

PHYSICAL SPECIFICATIONS

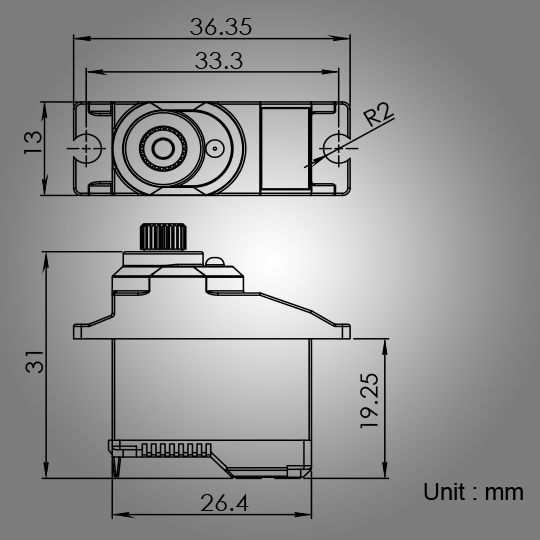

Dimension (mm)

26.4 x 13 x 31 mm / 1.04 x 0.51 x 1.22 in

Weight (gram)

16.3 ± 0.5 grams / 0.57 oz

Paraboard Parallel Charging Board /EC5+Deans (T-plug) Connector

Paraboard Parallel Charging Board for Lipo /EC5+Deans Connector

This Paraboard lets you charge and balance up to six lipo batteries at once! This board features Traxxas connectors for your batteries' main leads and JST-XH balance plugs ranging from 2S to 6S. They plug right into most popular models of 6S lipo balancing chargers that have 7-pin balance ports with 2.5mm pin spacing.

To get the most out of your Paraboard, pick up one of our GT-400 chargers. It provides 400W of total charging power and charge rates of up to 20 amps! This paraboard has a maximum charge rate of 30 amps.

Battery packs must be of the same cell count (only charge 2S with 2S, 3S with 3S, etc.) and battery voltages must be within 0.1V per cell (0.1V for 1S, 0.2V for 2S, etc.) of all other batteries connected to the Paraboard at the same time. Use a Cell Spy or similar voltage tester to check the voltage of each cell before connecting to the Paraboard.
